Autonics

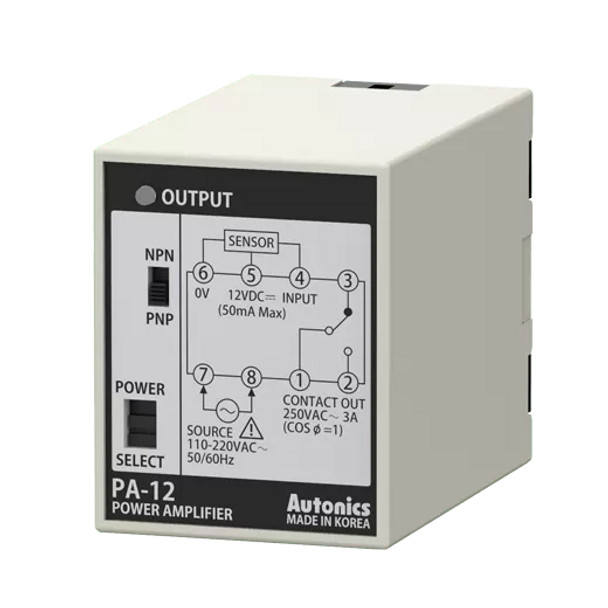

8-Pin Plug Type Sensor Controllers PA-12 Series

(No reviews yet) Write a Review
SKU:
PA-12 Series
MPN:
PA-12
Weight:
269.00 Grams

Description

Product Overview

The PA-12 Series sensor controllers are designed with an 8-pin plug type connection for effortless installation. These controllers offer dual voltage capabilities of 110/220 VAC, making them suitable for a wide range of applications. With a high contact capacity and the option for Normally Open (N.O.) or Normally Closed (N.C.) relay outputs, the PA-12 Series provides reliable performance. Additionally, the series features an easy-to-use NPN/PNP input switch, allowing users to seamlessly adapt to different sensor types.


Key Features

  • Dual Voltage Capability: The PA-12 Series supports 110/220 VAC, allowing for flexible use across various environments.
  • NPN/PNP Input Switch: Easily switch between NPN and PNP input modes with the integrated switch, ensuring compatibility with a wide range of sensors.
  • High Contact Capacity: Handles up to 250 VAC at 3 A or 30 VDC at 3 A resistive load, providing robust performance for demanding applications.
  • Relay Output Options: Available in Normally Open (N.O.) or Normally Closed (N.C.) configurations to suit specific needs.
  • Socket Plug-in Type: Simplified installation and maintenance with the 8-pin socket plug-in design.
  • Optional Accessories: Compatible with the PS-08(N) 8-pin socket, sold separately for enhanced flexibility.

Further details

Installation and Setup

The PA-12 Series is designed for ease of installation with its socket plug-in type design. Users can quickly connect the controller to their system without the need for complex wiring. The NPN/PNP switch further simplifies setup by allowing users to select the appropriate input type with a simple toggle.

Compatibility

The PA-12 Series is compatible with a wide range of sensors, thanks to its dual voltage capability and input switch. This makes it a versatile solution for various applications, including industrial automation, process control, and more.

Durability and Longevity

With a robust design that includes high contact capacity and relay output options, the PA-12 Series is built to last. It offers an electrical life cycle of over 10 million operations and a mechanical life cycle exceeding 100,000 operations, ensuring long-term reliability.

Environmental Specifications

The PA-12 Series operates efficiently in a variety of environmental conditions. It can withstand temperatures ranging from -10 to 50℃ and operates effectively in humidity levels between 35% and 85% RH, without freezing or condensation.

Documents

Can't find the information you need? Our datasheets have all the details. Access them here:

View AllClose

Additional Information

Power Supply:
110/220 VAC, 50/60 Hz (switchable)
Power Consumption:
Approximately 4 VA
Sensor Supply Power:
12 VDC ± 10% at 50 mA (PA-12), 12 VDC ± 10% at 30 mA (PA-12-PG, PA-12-PGP)
Control Output:
Relay contact output, NPN/PNP open collector output options
Contact Capacity:
250 VAC at 3 A or 30 VDC at 3 A resistive load
Input Signal:
NPN or PNP selectable, with specified impedance and voltage levels
Response Time:
Input ≥ 0.2 ms, Output ≥ 10 ms
Operating Temperature:
-10 to 50 ℃
Operating Humidity:
35 to 85 %RH
Unit Weight:
Approximately 269 g
Electrical Life Cycle:
≥ 10,000,000 operations
Mechanical Life Cycle:
≥ 100,000 operations
