Fluid's Voice, Captured: Unlocking Secrets through Pressure

In a world where precision reigns supreme and accurate data drives innovation, the art of pressure measurement stands as a sentinel of technological progress. From the towering depths of industrial complexes to the intricate corridors of medical marvels, the ability to capture the elusive force of pressure plays a pivotal role. Like a symphony of science, various techniques harmonize to decipher the language of pressure, be it in the hiss of gas or the flow of liquid. Join us as we delve into the dynamic realm of pressure measurement, uncovering the secrets behind choosing the perfect technique to unlock the mysteries held within each fluidic pulse.

Direct pressure measurement

Direct pressure measurement refers to the process of quantifying the force per unit area exerted on a surface by a fluid (liquid or gas). This measurement is usually carried out using devices called pressure sensors or pressure transducers. These sensors convert the physical force of the fluid into an electrical signal, which can then be easily measured and interpreted.

There are various methods for directly measuring pressure, each with its principles and applications. Some common methods include

• Bourdon Tube Pressure Gauge: This is a mechanical device that uses a curved tube that is flattened on one side. As the pressure inside the tube increases, the tube tends to straighten out, and this motion is converted into a reading on a dial.
• Diaphragm Pressure Sensor: This type of sensor utilizes a flexible diaphragm that deforms under pressure. The diaphragm's movement is converted into an electrical signal using strain gauges or other similar techniques.
• Piezoelectric Pressure Sensor: These sensors employ the piezoelectric effect, where certain materials generate an electrical charge in response to mechanical stress. When pressure is applied, the material deforms and generates an electric signal that can be measured.
• Capacitive Pressure Sensor: These sensors use changes in capacitance to measure pressure. A diaphragm is placed between two capacitor plates, and as the diaphragm flexes due to pressure changes, the capacitance between the plates changes, which is then detected and measured.
• Resonant Pressure Sensor: These sensors measure pressure by monitoring the resonant frequency of a vibrating element, which changes with pressure-induced mechanical stress.
• Strain Gauge Pressure Sensor: Strain gauges are bonded to a pressure-sensitive diaphragm. When pressure is applied, the diaphragm deforms, causing a change in resistance in the strain gauges. This change in resistance is proportional to the applied pressure.
• Manometer: A manometer is a simple pressure measurement device that uses the height of a liquid column to indicate the pressure difference between two points. Common types include U-tube manometers and inclined manometers.
• Pressure Transducer: These are devices that convert pressure into an electrical signal, often using one of the above-mentioned principles. They are commonly used in various industrial applications and scientific measurements.
• Pressure Transmitter: A pressure transmitter is a type of pressure transducer that converts the pressure signal into an electrical output, often a current (4-20 mA) or voltage signal (0-5 V or 0-10 V), which can be easily transmitted and interpreted by control systems.

Direct pressure measurement is crucial in a wide range of applications, including industrial processes, aerospace engineering, medical equipment, automotive systems, and environmental monitoring. The selection of the appropriate pressure measurement method depends on factors such as the accuracy required, the range of pressures to be measured, the environmental conditions, and the specific application's needs.

Fig 1. Bourdon tube pressure gauge

Indirect pressure measurement

Indirect pressure measurement refers to the process of determining pressure by observing related parameters or effects instead of directly measuring the pressure itself. This approach is often used when direct pressure measurement might be impractical, or too invasive, or when other variables are more easily measured and correlated with pressure. Here are some common methods of indirect pressure measurement:

• Hydrostatic Pressure: Indirect pressure measurement can be done by measuring the height of a liquid column in a container (such as a manometer) connected to the system in question. The height of the column is related to the pressure of the fluid, based on principles of hydrostatics.
• Pressure-Volume Relationship (Boyle's Law): In closed systems, where the volume is constant, the pressure of a gas is inversely proportional to its volume. By monitoring volume changes in a known system, pressure changes can be inferred.
• Pressure-Temperature Relationship (Gay-Lussac's Law): When the volume is kept constant, the pressure of a gas is directly proportional to its absolute temperature. By measuring temperature changes in a known system, pressure changes can be estimated.
• Flow Rate and Bernoulli's Principle: In fluid dynamics, changes in pressure are often related to changes in fluid velocity and potential energy. Bernoulli's principle describes the relationship between pressure, velocity, and elevation in a moving fluid.
• Pressure-Induced Strain: Indirect pressure measurement can involve measuring the strain or deformation of materials under varying pressures. This can be achieved using strain gauges, accelerometers, or other deformation-sensitive devices.
• Indirect Measurement through Resonance: Some systems exhibit changes in resonance frequency or amplitude in response to pressure changes. Monitoring these changes can provide insights into the pressure variations.
• Acoustic or Ultrasonic Methods: Pressure waves can be used to estimate pressure indirectly. For instance, the speed of sound in a medium is related to its pressure, and by measuring the time taken for a sound wave to travel a known distance, pressure can be inferred.
• Indirect Measurement via Electrical Properties: In some cases, changes in the electrical properties of materials can be correlated with pressure changes. For example, changes in capacitance, resistance, or impedance can be used as indicators of pressure variations.
• Strain Gauge Arrays: Using an array of strain gauges, it's possible to detect local deformations caused by pressure changes. These deformations can be used to indirectly estimate pressure distribution.

Indirect pressure measurement methods are often used when direct pressure measurement is technically challenging, involves risks, or is not the primary focus of the measurement. However, it's important to note that indirect methods may introduce additional sources of error due to their reliance on assumptions or correlations. The choice of method depends on the specific application, the accuracy required, and the available resources.

Comparing table

Here's a comparison of direct and indirect pressure measurement methods in a table format:

Table 1. comparison of direct and indirect pressure measurement methods

Keep in mind that the choice between direct and indirect pressure measurement methods depends on factors such as the specific application, accuracy requirements, available resources, and the technical feasibility of each method.

Fig 2. Hydrostatic Pressure

What are the factors that are important for choosing pressure measurements?

Choosing the appropriate pressure measurement method depends on several important factors that need to be considered to ensure accurate and reliable measurements. Here are the key factors to take into account:

• Accuracy Requirements: Determine the level of accuracy needed for your application. Some industries, like aerospace or medical, require extremely precise measurements, while others may tolerate lower accuracy.
• Measurement Range: Consider the full range of pressures you need to measure. Some methods are better suited for low pressures, while others can handle high-pressure environments.
• Environmental Conditions: Assess the temperature, humidity, vibration, and other environmental factors where the measurement will be taken. Some sensors may be more sensitive to these conditions than others.
• Fluid Compatibility: Consider the type of fluid being measured. Some fluids might be corrosive, abrasive, or reactive, requiring pressure sensors or materials that can withstand them.
• Response Time: Determine how quickly you need the pressure measurement to respond to changes. Some methods have faster response times than others.
• Invasiveness: Consider whether the measurement can be invasive (direct contact with the fluid or system) or non-invasive (external measurements) based on the requirements and constraints of the application.
• Cost: Evaluate the budget available for pressure measurement equipment. Different methods have varying costs associated with them.
• Space Limitations: Assess the available space for installing pressure measurement equipment. Some methods might require more space than others.
• Ease of Installation: Consider how easily pressure measurement equipment can be installed and integrated into your system.
• Long-Term Stability: Think about the long-term stability and reliability of the measurement method. Some sensors may require more frequent calibration or maintenance.
• Application Type: Different industries have specific requirements. For example, industrial applications might require robust sensors, while medical applications might require biocompatible materials.
• Electrical Interface: Determine whether the sensor needs to interface with a particular type of electrical signals, such as analog or digital.
• Data Logging and Communication: Consider how the pressure data will be collected, stored, and communicated. Some sensors have built-in data logging or wireless communication capabilities.
• Safety Regulations: Ensure that the chosen method complies with any relevant safety regulations or standards in your industry.
• Real-Time Monitoring: Determine if real-time pressure monitoring is critical for your application.
• Calibration and Maintenance: Assess the ease of calibration and maintenance for the chosen method.
• Available Expertise: Consider the expertise available in your organization or industry for installing, calibrating, and maintaining the chosen measurement equipment.

By carefully evaluating these factors, you can make an informed decision about which pressure measurement method is best suited for your specific application. It's often a trade-off between various factors, and the final choice should align with your priorities and constraints.

How can choose the proper pressure measurement technique?

Choosing the proper pressure measurement technique involves a systematic approach that takes into consideration various factors and requirements specific to your application. Here's a step-by-step guide to help you make an informed decision:

• Define Your Requirements: Start by clearly defining the requirements for your pressure measurement. Consider factors such as accuracy, measurement range, environmental conditions, response time, invasiveness, and budget constraints.
• Understand Your Application: Gain a deep understanding of the application in which you need to measure pressure. Consider the type of fluid, the system's characteristics, and safety considerations, and the purpose of the pressure measurement.
• Identify Potential Methods: Research and identify pressure measurement methods that are suitable for your application based on the requirements and conditions. This might include direct and indirect methods.
• Evaluate Method Characteristics: Assess each method's characteristics, strengths, and limitations concerning your requirements. Consider factors such as accuracy, sensitivity, stability, ease of installation, and maintenance needs.
• Consider Environmental Factors: Evaluate how the chosen method will perform under the environmental conditions in which it will be used. Consider temperature, humidity, vibration, and other relevant factors.
• Check Fluid Compatibility: Determine if the pressure measurement equipment is compatible with the fluid being measured. Ensure that the equipment's materials won't degrade or corrode in contact with the fluid.
• Assess Long-Term Stability: Consider the long-term stability of the measurement method. Some methods might drift over time, requiring more frequent recalibration.
• Evaluate Cost-Benefit Ratio: Compare the costs of different measurement methods against their benefits. Consider both initial costs and long-term costs, including calibration and maintenance expenses.
• Consider Space Constraints: Evaluate the available space for installing the measurement equipment. Some methods might require more space than others.
• Evaluate Expertise and Resources: Assess the expertise available in your organization or industry for installing, calibrating, and maintaining the chosen measurement equipment.
• Explore Safety Regulations: Ensure that the chosen method complies with safety regulations and standards relevant to your industry.
• Prioritize Requirements: Prioritize the requirements based on their importance for your application. Determine which factors are critical and which are nice to have.
• Conduct Testing if Possible: If feasible, conduct tests using different methods in a controlled environment to observe their performance under conditions similar to your application.
• Consult Experts: Seek advice from experts in the field or from manufacturers of pressure measurement equipment. They can provide insights and recommendations based on their experience.
• Make an Informed Decision: Based on the gathered information and evaluations, make a well-informed decision about the most suitable pressure measurement technique for your application.
• Monitor and Optimize: Once you've implemented the chosen method, regularly monitor its performance and make adjustments as needed. This might include recalibrations or maintenance.

Remember that the choice of pressure measurement technique involves trade-offs between various factors. What works best for one application might not be ideal for another. By following a structured approach and considering all relevant factors, you can choose a method that meets your application's needs while optimizing accuracy, reliability, and cost-effectiveness.

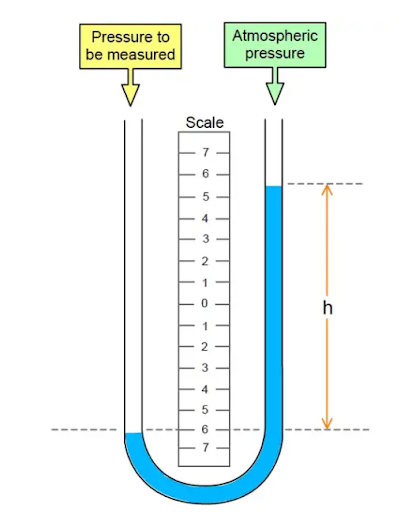

Fig 3. U-tube manometer

Which pressure measurement technique can be used if accuracy is important?

If accuracy is of paramount importance in your pressure measurement application, you should consider using methods that are known for providing high-precision and reliable measurements. Here are a few pressure measurement techniques that are often chosen for their accuracy:

• Bourdon Tube Pressure Gauge (Direct Method): High-quality Bourdon tube pressure gauges, especially those with digital readouts, can offer good accuracy. They are commonly used in industrial applications where accuracy is crucial.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors can provide excellent accuracy due to their high sensitivity to pressure changes. They are commonly used in applications where precise pressure measurements are required.
• Strain Gauge Pressure Sensor (Direct Method): Pressure transducers equipped with strain gauges can offer accurate measurements, especially when calibrated and maintained properly. They are widely used in both industrial and laboratory settings.
• Resonant Pressure Sensor (Direct Method): Resonant pressure sensors are designed for high accuracy and stability. They work by monitoring the resonant frequency of a vibrating element, which changes with pressure-induced mechanical stress.
• Capacitive Pressure Sensor (Direct Method): Capacitive sensors, when properly designed and calibrated, can provide accurate pressure measurements. They operate based on changes in capacitance as the diaphragm flexes under pressure.
• Pressure Transmitter (Direct Method): Pressure transmitters are used in industrial applications and can offer good accuracy, especially when calibrated against a known standard.
• Hydrostatic Pressure (Indirect Method): If a liquid column or hydrostatic pressure method is suitable for your application, it can provide accurate measurements based on the height of the liquid column. This method is often used in laboratory settings.
• Pressure-Volume Relationship (Indirect Method): If the volume of the gas remains constant, the pressure-temperature relationship can be used to infer pressure changes accurately.
• Acoustic or Ultrasonic Methods (Indirect Method): Certain acoustic or ultrasonic methods can provide accurate pressure measurements when the speed of sound is correlated with pressure changes.

When accuracy is a critical requirement, it's essential to carefully select a method that meets your specific application's needs. Keep in mind that achieving high accuracy often involves proper calibration, maintenance, and installation practices. Consult with experts in pressure measurement or the manufacturers of the chosen equipment to ensure you're getting the level of accuracy you require.

Which pressure measurement technique can be used if pressure range is important?

If your pressure measurement application requires a wide range of pressure measurements, you should consider pressure measurement techniques that are capable of covering a broad range of pressures. Here are some methods that are suitable for applications where pressure range is important:

• Bourdon Tube Pressure Gauge (Direct Method): Bourdon tube pressure gauges are available in various designs to cover a wide range of pressures. Different tube shapes and materials can accommodate low to high pressures.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors can be designed to cover a wide pressure range. They can be used for both low and high-pressure applications by selecting appropriate sensor designs and materials.
• Strain Gauge Pressure Sensor (Direct Method): Strain gauge pressure transducers can be manufactured to cover different pressure ranges. They are available in various configurations for both low and high-pressure measurements.
• Pressure Transducer (Direct Method): Pressure transducers come in a range of pressure ratings, allowing you to select a model that suits your required pressure range.
• Manometer (Indirect Method): Manometers can cover a wide range of pressures by using different types of fluids and configurations. U-tube, well-type, and inclined manometers are among the options.
• Pressure-Volume Relationship (Indirect Method): If the volume of the gas remains constant, pressure-temperature relationships (Boyle's law) can be used to estimate pressure changes across a range of pressures.
• Acoustic or Ultrasonic Methods (Indirect Method): Some acoustic or ultrasonic methods can cover a wide pressure range by correlating pressure with the speed of sound in the fluid.
• Pressure-Induced Strain (Indirect Method): Methods that measure strain in response to pressure changes can be adapted to cover a range of pressures, provided the strain gauges or sensors are selected appropriately.

When the pressure range is a critical factor, make sure to choose a method that is not only capable of measuring the required range but also has the necessary accuracy and stability across that range. Consult with experts in pressure measurement to select a technique that suits your application's specific pressure range and requirements.

Which pressure measurement technique can be used if response time is important?

If response time is a critical factor in your pressure measurement application, you should consider pressure measurement techniques that can provide fast and real-time measurements. Here are some methods that are suitable for applications where response time is important:

• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors are known for their fast response times due to their ability to quickly detect changes in pressure. They are commonly used in applications that require rapid pressure measurements.
• Resonant Pressure Sensor (Direct Method): Resonant pressure sensors can offer fast response times since they rely on changes in resonant frequency to detect pressure variations.
• Capacitive Pressure Sensor (Direct Method): Capacitive sensors can provide relatively fast response times by quickly detecting changes in capacitance as the diaphragm flexes under pressure.
• Pressure Transducer (Direct Method): Some pressure transducers are designed with quick response times in mind, making them suitable for applications that require rapid pressure measurements.
• Pressure Transmitter (Direct Method): Pressure transmitters can offer fast response times in industrial settings, especially when configured for real-time monitoring.
• Acoustic or Ultrasonic Methods (Indirect Method): Certain acoustic or ultrasonic methods can provide rapid pressure measurements based on the speed of sound in the medium.
• Manometer with Short Column (Indirect Method): Manometers with shorter columns of fluid can provide faster response times compared to those with longer columns.
• Pressure-Induced Strain (Indirect Method): Depending on the design, pressure-induced strain methods can offer relatively fast response times.

When response time is a crucial requirement, it's important to select a method that can quickly and accurately capture pressure changes in real time. Keep in mind that other factors, such as the sensor's mechanical properties and the system's signal processing capabilities, can also influence the overall response time. Consult with experts in pressure measurement to choose a technique that aligns with your application's need for rapid response.

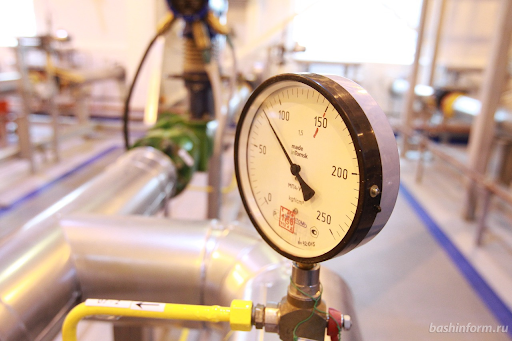

Fig 4. Natural gas pressure gauge

Which pressure measurement technique can be used if cost is important?

If cost is a significant factor in your pressure measurement application, you should consider pressure measurement techniques that provide accurate measurements while being cost-effective. Here are some methods that are suitable for applications where cost is important:

• Manometer (Indirect Method): Manometers are relatively simple and cost-effective devices that can provide accurate pressure measurements for certain applications. They are often used in laboratory settings.
• Pressure-Volume Relationship (Indirect Method): If the volume of the gas remains constant, pressure-temperature relationships (Boyle's law) can be used as an indirect method that is cost-effective.
• Acoustic or Ultrasonic Methods (Indirect Method): Some acoustic or ultrasonic methods can provide cost-effective pressure measurements by correlating pressure with the speed of sound in the fluid.
• Pressure-Induced Strain (Indirect Method): Pressure-induced strain methods can be implemented cost-effectively, especially when using strain gauges or simple deformation-sensitive devices.
• Basic Pressure Transducer (Direct Method): Basic pressure transducers can provide accurate measurements at a lower cost compared to more advanced sensor types.
• Piezoelectric Pressure Sensor (Direct Method): Depending on the specific design and application, some piezoelectric sensors can offer a balance between accuracy and cost-effectiveness.
• Strain Gauge Pressure Sensor (Direct Method): Strain gauge pressure transducers can be cost-effective options for applications where accuracy is needed but high-end features are not required.
• Capacitive Pressure Sensor (Direct Method): Capacitive sensors, while potentially more expensive than some other options, can still offer a good balance between accuracy and cost in certain applications.

When cost is a primary consideration, it's important to carefully evaluate the trade-offs between accuracy, features, and price. Consider whether the level of accuracy provided by a particular method is sufficient for your application's needs. Additionally, explore options for cost-effective installation, calibration, and maintenance. Consulting with experts in pressure measurement and comparing different sensor models can help you find the most cost-effective solution that meets your requirements.

Comparing table

Here's a comparison table of different pressure measurement techniques based on different factors, including accuracy, pressure range, response time, and cost:

Table 2. comparison table of different pressure measurement techniques

Keep in mind that the entries in this table are generalizations and that the specific performance of each technique can vary based on factors such as sensor quality, design, calibration, and application-specific requirements. Additionally, some techniques might be more suited for certain ranges or speeds depending on their design and implementation. It's important to thoroughly evaluate each method in the context of your application's specific needs and constraints.

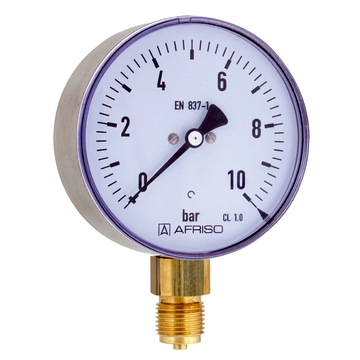

Fig 5. Bourdon tube

Which pressure measurement technique can be used if Environmental Conditions are important?

If environmental conditions are a crucial factor in your pressure measurement application, you should consider pressure measurement techniques that can withstand and accurately perform in challenging environmental conditions such as extreme temperatures, humidity, vibrations, or corrosive environments. Here are some methods that are suitable for applications where environmental conditions are important:

• Pressure Transducer (Direct Method): Some pressure transducers are designed with rugged enclosures and protective measures to withstand harsh environmental conditions. They are commonly used in industrial settings with variable conditions.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors can be designed with protective coatings and materials that make them more resilient in challenging environments.
• Resonant Pressure Sensor (Direct Method): Resonant pressure sensors can be engineered to withstand specific environmental conditions, making them suitable for industrial or outdoor applications.
• Pressure Transmitter (Direct Method): Pressure transmitters with robust enclosures and environmental sealing are suitable for harsh conditions such as those found in industrial or outdoor settings.
• Capacitive Pressure Sensor (Direct Method): Some capacitive sensors are built with materials that resist corrosion and environmental challenges, making them suitable for demanding conditions.
• Acoustic or Ultrasonic Methods (Indirect Method): Acoustic or ultrasonic methods that rely on the speed of sound can be robust in varying environmental conditions, though external factors such as temperature and humidity need to be controlled.
• Pressure-Induced Strain (Indirect Method): Depending on the design, pressure-induced strain methods can be adapted to withstand certain environmental conditions.

When environmental conditions are a critical concern, it's essential to consider not only the sensor's design but also its housing, materials, and any additional protective measures. Consult with experts in pressure measurement and equipment manufacturers to find solutions that are suitable for your specific environmental challenges. It's also important to ensure that the selected method maintains its accuracy and stability over time despite fluctuations in environmental conditions.

Which pressure measurement technique can be used if fluid compatibility is important?

If fluid compatibility is a critical consideration in your pressure measurement application, you should focus on pressure measurement techniques that can effectively handle the specific type of fluid you're dealing with. Different fluids can have various chemical properties that might affect the sensor materials and accuracy. Here are some methods suitable for applications where fluid compatibility is important:

• Pressure Transducer (Direct Method): Pressure transducers can be designed with specific materials that are compatible with a wide range of fluids, including corrosive or aggressive ones. Make sure to choose a transducer with materials that won't degrade when exposed to your fluid.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors can be engineered with materials that resist chemical attack, making them suitable for corrosive fluids. Choose materials that are chemically compatible with your fluid to ensure accuracy and longevity.
• Resonant Pressure Sensor (Direct Method): Some resonant pressure sensors are designed with materials that can withstand exposure to different types of fluids. Ensure that the sensor's materials are compatible with the fluid in your application.
• Capacitive Pressure Sensor (Direct Method): Capacitive sensors can be designed with compatible materials for the fluid in question, ensuring accuracy and durability. Verify that the chosen materials won't be adversely affected by the fluid.
• Pressure Transmitter (Direct Method): Pressure transmitters can be selected or customized to use materials that are compatible with the specific fluid in your application. Work with the manufacturer to ensure that the selected materials can handle the fluid's properties.
• Acoustic or Ultrasonic Methods (Indirect Method): Acoustic or ultrasonic methods that rely on fluid properties should consider the chemical compatibility of the fluid with sensor materials. Ensure that the chosen materials won't be adversely affected by the fluid.
• Pressure-Induced Strain (Indirect Method): Pressure-induced strain methods may require careful consideration of material compatibility with the fluid and any potential interactions. Select materials that can withstand the chemical properties of the fluid.

When fluid compatibility is a critical factor, consult with experts in pressure measurement and equipment manufacturers to ensure that the chosen method can handle the specific fluid without compromising the accuracy or the integrity of the measurement equipment. Conduct compatibility tests if necessary and consider any potential long-term effects of the fluid on the sensor materials.

Which pressure measurement technique can be used if safety regulation is important

If safety regulations are a critical consideration in your pressure measurement application, you should focus on pressure measurement techniques that comply with the relevant safety standards and regulations in your industry. Here are some methods suitable for applications where safety regulation is important:

• Pressure Transducer (Direct Method): Pressure transducers that are designed and certified to meet industry-specific safety standards are suitable for applications where safety is a priority.
• Pressure Transmitter (Direct Method): Pressure transmitters that adhere to safety regulations and standards can provide accurate and safe pressure measurements, especially in industrial settings.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors that are designed and certified to meet safety requirements can be used in applications where safety regulations are critical.
• Resonant Pressure Sensor (Direct Method): Resonant pressure sensors that are manufactured to comply with safety regulations can be used in applications where safety is paramount.
• Capacitive Pressure Sensor (Direct Method): Capacitive sensors that meet safety standards and guidelines can be used in applications where safety is a priority.
• Manometer (Indirect Method): Manometers that are certified to meet safety regulations can be used in laboratory and industrial applications that require compliance with safety standards.
• Acoustic or Ultrasonic Methods (Indirect Method): Acoustic or ultrasonic methods that adhere to safety regulations can provide pressure measurements that meet safety requirements.
• Pressure-Induced Strain (Indirect Method): Pressure-induced strain methods that comply with safety standards can be used in applications where safety is a concern.

When safety regulation is a critical factor, ensure that the selected pressure measurement equipment meets the relevant industry standards and guidelines. Work closely with experts, manufacturers, and regulatory authorities to ensure that the chosen method aligns with safety requirements and ensures the well-being of personnel and the environment. Always prioritize safety when selecting pressure measurement techniques for applications that are subject to safety regulations.

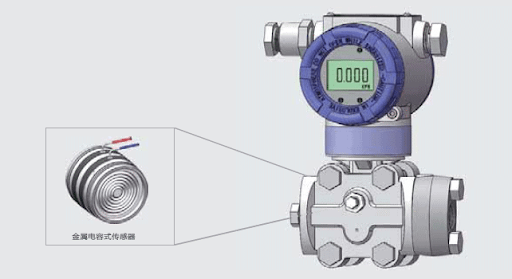

Fig 6. Capacitive Pressure Sensor

Which pressure measurement technique can use if Calibration and Maintenance are important?

If calibration and maintenance are important factors in your pressure measurement application, you should focus on pressure measurement techniques that offer ease of calibration, stability over time, and minimal maintenance requirements. Here are some methods suitable for applications where calibration and maintenance are crucial:

• Pressure Transducer (Direct Method): Pressure transducers can be calibrated and maintained relatively easily, making them suitable for applications where accuracy over time is important.
• Pressure Transmitter (Direct Method): Pressure transmitters can be calibrated and adjusted as needed, often featuring built-in diagnostics to aid in maintenance.
• Piezoelectric Pressure Sensor (Direct Method): Piezoelectric sensors are generally stable and may require less frequent calibration. Maintenance requirements are often minimal.
• Resonant Pressure Sensor (Direct Method): Resonant pressure sensors are designed for stability and may need less frequent calibration. Regular maintenance is often minimal.
• Capacitive Pressure Sensor (Direct Method): Some capacitive sensors have stable performance over time and might require less frequent calibration and maintenance.
• Manometer (Indirect Method): Manometers are relatively simple devices that can be calibrated and maintained with proper procedures.
• Acoustic or Ultrasonic Methods (Indirect Method): Acoustic or ultrasonic methods can offer stable measurements with minimal calibration needs. Maintenance can vary based on the specific setup.
• Pressure-Induced Strain (Indirect Method): Depending on the design, pressure-induced strain methods can offer stable measurements with less frequent calibration and maintenance.

When calibration and maintenance are important considerations, consult the manufacturer's guidelines and recommendations for each pressure measurement technique. Work with experts in pressure measurement to ensure that the chosen method aligns with your calibration and maintenance requirements. Regularly scheduled calibration and maintenance routines should be established to ensure accurate and reliable measurements over time.

Comparing table

Here's a comparison table of different pressure measurement techniques based on their suitability for applications where calibration and maintenance are important:

Table 3. comparison table of different pressure measurement techniques based on applications

Keep in mind that while this table provides a general overview of how each technique relates to calibration and maintenance, the specific performance of each method can vary based on sensor quality, design, application conditions, and more. When selecting a pressure measurement technique, ensure that the calibration and maintenance procedures align with your application's requirements. Consult with experts in pressure measurement and follow the manufacturer's recommendations for calibration and maintenance intervals.

How can choose the pressure measurement technique based on the environment?

Choosing a pressure measurement technique based on the environment involves considering factors such as temperature, humidity, vibration, and potential exposure to corrosive or hazardous substances. Here's a step-by-step approach to help you choose the right technique for your specific environment:

• Understand Your Environment: Gain a deep understanding of the environmental conditions in which the pressure measurement will take place. Consider factors like temperature range, humidity levels, presence of corrosive agents, and potential vibration.
• Identify Environmental Challenges: Determine which environmental factors are most critical for your application. For example, if you're dealing with high humidity or corrosive substances, you'll need a technique that can withstand these conditions.
• Review Manufacturer Specifications: For each pressure measurement technique you're considering, review the manufacturer's specifications and guidelines. Look for information about the operating temperature range, humidity tolerance, and resistance to corrosive substances.
• Consider Enclosures and Sealing: Some techniques, like pressure transducers and transmitters, can be equipped with rugged enclosures and environmental sealing to protect them from dust, moisture, and other contaminants.
• Material Compatibility: Consider the materials used in the construction of the pressure measurement equipment. Ensure that the sensor materials are compatible with the environmental conditions. Corrosion-resistant materials may be necessary in corrosive environments.
• Temperature Compensation: Some techniques incorporate temperature compensation to ensure accurate measurements despite temperature variations. Consider whether this feature is essential for your application.
• Vibration Resistance: If your environment experiences vibrations, select a technique that is resistant to vibrations or can be properly mounted to mitigate their effects on measurement accuracy.
• Certifications and Standards: Some industries require adherence to specific standards for environmental conditions. Ensure that the chosen technique complies with any relevant standards.
• Consult Experts: Seek advice from experts in pressure measurement, environmental engineering, or the specific industry you're working in. They can provide insights into the best techniques for your environment.
• Field Testing (if possible): If feasible, conduct field tests or simulations in conditions similar to your application environment. This can help you verify the performance of the chosen technique under real-world conditions.
• Budget Considerations: Keep in mind that equipment designed to withstand extreme environmental conditions may come at a higher cost. Evaluate your budget and the importance of accurate measurements in your environment.
• Prioritize Environmental Factors: Based on the critical environmental factors and the information gathered from the steps above, prioritize which factors are most important for your application.

By systematically considering the environmental conditions and their impact on pressure measurement techniques, you can select a method that not only provides accurate measurements but also maintains stability and reliability in your specific environment.

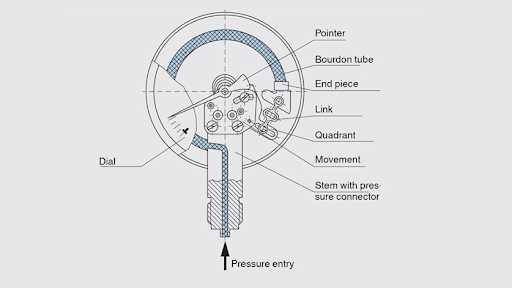

Fig 7. Bourdon tube

What are the important factors in choosing pressure measurement techniques based on applications?

Choosing the right pressure measurement technique for a specific application involves considering several important factors. The suitability of a technique depends on the unique requirements of your application. Here are the key factors to consider:

1. Measurement Range: Determine the pressure range you need to measure. Some techniques are better suited for low pressures, while others excel at high pressures.
2. Accuracy and Precision: Assess the required level of accuracy and precision for your application. Certain techniques offer higher accuracy than others.
3. Response Time: Consider how quickly you need the pressure measurements to respond to changes. Fast response times may be crucial in dynamic applications.
4. Environmental Conditions: Evaluate factors such as temperature, humidity, vibration, and exposure to corrosive substances. Choose a technique that can withstand and perform well in your specific environment.
5. Fluid Compatibility: Ensure that the chosen technique is compatible with the fluid being measured. Some fluids can interact with sensor materials, affecting accuracy.
6. Safety Regulations: If your application is subject to safety regulations or standards, choose a technique that complies with these requirements.
7. Calibration and Maintenance: Consider the ease of calibration and maintenance. Some techniques require more frequent calibration or upkeep than others.
8. Space Constraints: Evaluate the available space for installing the measurement equipment. Some methods require more space than others.
9. Budget Constraints: Assess your budget for the pressure measurement equipment, installation, calibration, and potential maintenance.
10. Application Type: Understand the nature of your application – whether it's industrial, laboratory, medical, or another field. Different industries may have specific requirements.
11. Installation Requirements: Determine how easily the chosen technique can be integrated into your existing system or application setup.
12. Long-Term Stability: Consider the stability of the measurement technique over time. Some methods may drift or degrade in accuracy as they age.
13. Expertise and Resources: Assess the availability of expertise and resources for installing, calibrating, and maintaining the chosen measurement equipment.
14. Application-Specific Considerations: Take into account any unique requirements of your application that might influence the choice of technique.
15. Future Scalability: Consider whether the chosen technique can be easily scaled or adapted for potential future changes in your application.
16. Manufacturer and Industry Recommendations: Consult experts in the field or equipment manufacturers for recommendations based on their experience and knowledge.
17. Reliability and Durability: Evaluate the reliability and durability of the technique, especially if your application requires continuous, long-term measurements.
18. Data Integration and Connectivity: Consider whether the chosen technique can integrate with your data systems or provide the necessary connectivity for your application.

By thoroughly evaluating these factors in the context of your application's specific needs, you can make an informed decision about the most suitable pressure measurement technique that meets your requirements and optimizes accuracy, reliability, and cost-effectiveness.

Conclusion

Choosing the right pressure measurement technique for your application requires careful consideration of various factors to ensure accurate, reliable, and cost-effective measurements. In conclusion, here's a summary of the key points to keep in mind:

• Define Your Requirements: Clearly outline your application's requirements, including pressure range, accuracy, response time, environmental conditions, fluid compatibility, safety regulations, and more.
• Evaluate Techniques: Research and understand different pressure measurement techniques, both direct and indirect, to determine their suitability for your specific needs.
• Consider Environmental Factors: Take into account the environmental conditions in which the measurement will take place, such as temperature, humidity, vibration, and potential exposure to corrosive substances.
• Account for Fluid Compatibility: Choose a technique that is compatible with the type of fluid being measured to ensure the accuracy and longevity of the measurement equipment.
• Prioritize Accuracy and Precision: Select a technique that provides the required level of accuracy and precision for your application, considering factors like calibration and long-term stability.
• Address Response Time Needs: If response time is critical, opt for techniques that offer fast and real-time measurements, taking into account the dynamic nature of your application.
• Consider Maintenance and Calibration: Evaluate the ease of calibration and maintenance required for each technique, as this can impact the ongoing accuracy and reliability of measurements.
• Comply with Safety Regulations: Ensure that the chosen technique meets safety regulations and standards applicable to your industry or application.
• Review Budget, and Resources: Balance your budget constraints with the need for accurate measurements, considering both upfront costs and long-term expenses.
• Consult Experts: Seek advice from experts in pressure measurement, environmental conditions, and your specific industry to make an informed decision.
• Test in Real or Simulated Conditions: If possible, conduct field tests or simulations to verify the performance of the chosen technique under actual operating conditions.
• Prioritize Reliability and Longevity: Choose a technique that provides reliable and accurate measurements over the expected lifespan of your application.
• Plan for Future Growth: Consider whether the chosen technique can accommodate potential future changes or expansions in your application.

By carefully weighing these factors and considering their interplay, you can select the most suitable pressure measurement technique that aligns with your application's unique requirements and ensures optimal performance over time. Remember that each application is unique, so take the time to make a well-informed decision that delivers the best results for your specific needs.

To recap

Q1: What is pressure measurement?

A1: Pressure measurement is the process of determining the force per unit area exerted by a fluid (gas or liquid) on a surface. It's crucial for various industries, including manufacturing, automotive, aerospace, and healthcare.

Q2: What are the common units for pressure measurement?

A2: Common units include pascal (Pa), bar, psi (pounds per square inch), atmosphere (atm), and torr. Conversion factors allow switching between these units.

Q3: What's the difference between direct and indirect pressure measurement?

A3: Direct measurement involves direct interaction with the pressure medium, while indirect methods rely on pressure-related effects like deformation or fluid properties to infer pressure.

Q4: Which technique is best for high-pressure applications?

A4: Techniques like Bourdon tube gauges, piezoelectric sensors, and strain gauge sensors are suitable for high-pressure applications.

Q5: How do I choose the right pressure measurement technique for my application?

A5: Consider factors such as pressure range, accuracy, response time, environmental conditions, fluid compatibility, safety regulations, and maintenance requirements.

Q6: What is the advantage of using a pressure transducer?

A6: Pressure transducers offer accurate and versatile measurements, allowing for easy integration into various systems. They're suitable for a wide range of applications.

Q7: Can acoustic methods be used for pressure measurement?

A7: Yes, acoustic or ultrasonic methods can indirectly determine pressure by measuring the speed of sound in the fluid. They're often used in non-invasive applications.

Q8: What is the primary disadvantage of using a manometer for pressure measurement?

A8: Manometers are limited by their slow response time and inability to provide digital output, making them less suitable for dynamic applications.

Q9: How important is fluid compatibility in pressure measurement?

A9: Fluid compatibility is crucial, as certain fluids can interact with sensor materials and affect measurement accuracy or equipment longevity.

Q10: Are there techniques suitable for corrosive fluid environments?

A10: Yes, pressure transducers, transmitters, and sensors made from corrosion-resistant materials are suitable for corrosive fluid environments.

Q11: Can I use the same pressure measurement technique for high and low-pressure ranges?

A11: Some techniques, like pressure transducers and piezoelectric sensors, can be designed to cover both high and low-pressure ranges effectively.

Q12: What role does calibration play in pressure measurement?

A12: Calibration ensures the accuracy of pressure measurements. Regular calibration helps maintain measurement integrity over time.

Q13: How can I ensure the accuracy of pressure measurements in changing environmental conditions?

A13: Consider techniques with temperature compensation or select methods that are less affected by temperature and humidity variations.

Q14: What should I do if my application involves rapid pressure changes?

A14: Choose techniques like piezoelectric sensors, resonant pressure sensors, or capacitive sensors known for their fast response times.

Q15: Which pressure measurement techniques are commonly used in the medical field?

A15: In the medical field, techniques like pressure transducers, piezoelectric sensors, and capacitive sensors are often used for applications like blood pressure monitoring and ventilator systems.

References

http://www.machineryspaces.com/Bourdon-tube-pressure-gauge.html

https://www.afriso.com/en/PM/Industrial-technology/Mechanical-pressure-measuring-instruments/Bourdon-tube-pressure-gauges-for-industrial-applications-Type-D3

https://blog.wika.com/knowhow/bourdon-tube-pressure-gauge-operating-principle/

https://content.cdntwrk.com/files/aHViPTExODYyNSZjbWQ9aXRlbWVkaXRvcmltYWdlJmZpbGVuYW1lPWl0ZW1lZGl0b3JpbWFnZV82M2JmNDg4MmNlZTJjLmpwZyZ2ZXJzaW9uPTAwMDAmc2lnPWIyOGZlN2ZjZjQ5YzQyZTU3NWZmMWQ3YmJhMzg1Mzc5

https://instrumentationtools.com/u-tube-manometer-principle/

https://en.wikipedia.org/wiki/Pressure_measurement

https://armfield.co.uk/product/fs-2-2-fluid-science-manometer-u-tube/

https://www.drurylandetheatre.com/wp-content/uploads/2019/07/007.png
