Understanding Booster Pumps and How to Install Them: A Comprehensive Guide

1. Introduction

Imagine stepping into your morning shower, only to be greeted by a feeble trickle of water instead of the refreshing surge you expect. Or perhaps you’ve noticed your washing machine taking forever to fill, disrupting your day. Low water pressure can be more than a minor inconvenience—it can impact your comfort, productivity, and peace of mind. But here’s the good news: there’s a simple, effective solution that can transform your water supply system—a booster pump.

Booster pumps are the unsung heroes of modern plumbing, ensuring strong, consistent water pressure in homes, businesses, and even industrial settings. Whether you’re tackling weak showers, uneven heating systems, or inefficient garden irrigation, a well-chosen booster pump can revolutionize the way water flows through your space.

In this comprehensive guide, we’ll explore everything you need to know about booster pumps: what they are, how they work, why they’re essential, and how to install and maintain them. From understanding the latest technologies to choosing the perfect pump for your needs, this blog has you covered.

Ready to master your water flow and elevate your daily routines? Let’s dive in and discover how booster pumps can make weak water pressure a thing of the past.



---



2. What Are Booster Pumps?

Booster pumps are specialized devices designed to solve one of the most common household and industrial problems: low water pressure. They work by increasing the pressure of water flowing through a plumbing system, ensuring a steady and reliable water supply across all outlets.

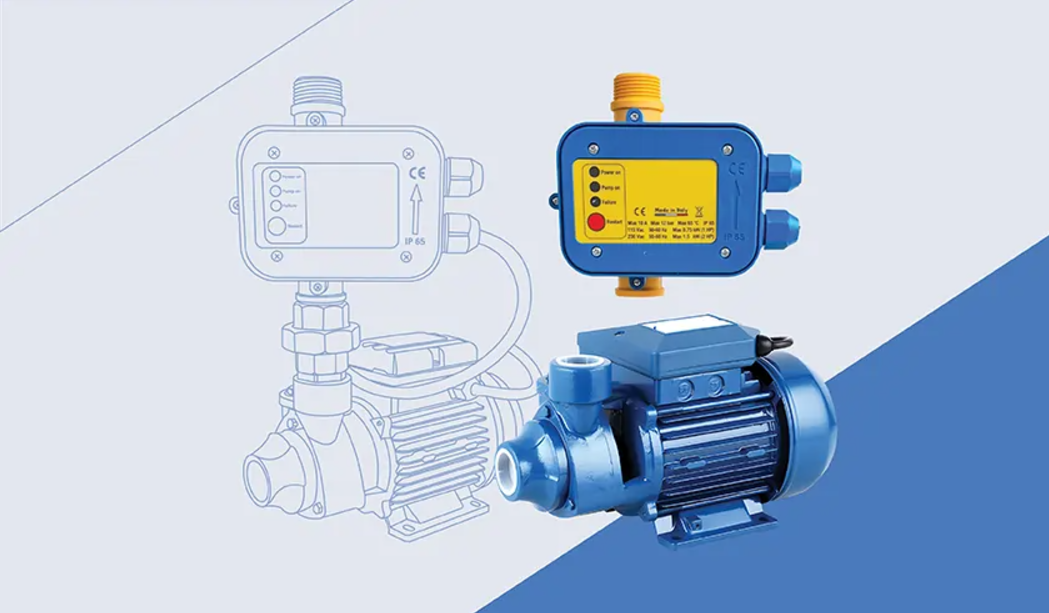

Fig 1. An example of a booster pump

Definition and Purpose

At their core, booster pumps are mechanical devices that enhance water pressure and flow. Whether you’re dealing with weak showers, slow-filling appliances, or inconsistent irrigation, booster pumps provide the extra force needed to deliver water efficiently. Their primary purpose is to maintain consistent water pressure, which is critical for comfort, appliance performance, and system reliability.

How Booster Pumps Work

Booster pumps operate by drawing water into a chamber and using a motor-driven impeller to accelerate the water, creating pressure. Here’s a simplified breakdown:

1. Water Intake: Water enters the pump through the suction line.

2. Pressure Boosting: The impeller spins rapidly, transferring kinetic energy to the water and increasing its pressure.

3. Water Delivery: Pressurized water is discharged to the plumbing system, maintaining steady pressure.

Many booster pumps are equipped with additional features, such as pressure switches, flow sensors, and variable-speed controls, to enhance efficiency and automation.

Key Components

• Motor: Powers the pump and drives the impeller.

• Impeller: Rotating blades that pressurize and move the water.

• Pressure Switch or Sensor: Monitors water pressure and activates or deactivates the pump as needed.

• Pump Casing: Protects internal components and directs water flow.

Common Applications

Booster pumps are incredibly versatile and find use in various settings:

• Residential: To address low water pressure in homes, especially multi-story buildings.

• Commercial: In offices, hotels, and restaurants to maintain consistent water flow across high-demand systems.

• Industrial: For water distribution in factories and large facilities.

• Specialized Uses: In irrigation systems, heating systems, and cleaning tasks where higher water pressure is necessary.

Booster pumps are the go-to solution for anyone dealing with insufficient water pressure. In the next sections, we’ll dive deeper into why installing one can make a significant difference in your water system’s performance and explore the different types available.



---



3. Why Install a Booster Pump?

Low water pressure can turn everyday tasks into frustrating challenges. From trickling showers to appliances that fail to perform efficiently, insufficient water pressure affects comfort, convenience, and productivity. Installing a booster pump can transform your water system, addressing these issues effectively. Here’s a closer look at the causes of low water pressure and the key benefits of using a booster pump.

Common Causes of Low Water Pressure

1. Building Height and Elevation:

• Water pressure decreases as it moves upward due to gravity. Multi-story homes or properties located on elevated terrain often face reduced water pressure.

2. Peak Usage Times:

• During busy hours, such as mornings and evenings, simultaneous use of showers, faucets, and appliances can cause significant drops in pressure.

3. Complex Plumbing Systems:

• Long or intricate piping systems can lead to pressure losses, especially in larger homes or buildings.

4. High-Demand Appliances:

• Modern devices like large showers, dishwashers, and smart toilets require higher water pressure to function optimally. If your system can’t meet these demands, performance suffers

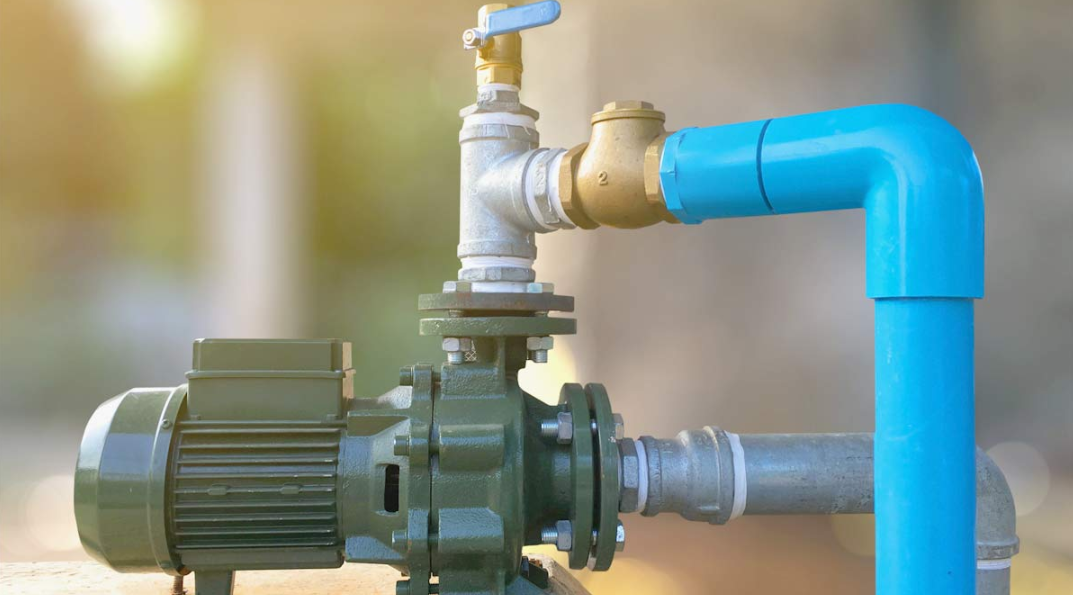

Fig 2. Installing a booster pump

The Benefits of Installing a Booster Pump

Booster pumps address these challenges by ensuring consistent water pressure throughout your system. Here’s how they can improve your daily life:

1. Improved Water Flow:

With a booster pump, you can enjoy a steady and consistent water flow across all fixtures. Say goodbye to weak showers and slow-filling sinks.

2. Enhanced Appliance Performance:

Appliances like washing machines, dishwashers, and even water heaters perform better with sufficient water pressure. A booster pump ensures they operate at peak efficiency.

3. Increased Comfort:

A strong, invigorating shower can transform your mornings. Booster pumps provide the pressure needed for a refreshing and enjoyable experience.

4. Energy and Water Conservation:

Low pressure often leads to extended faucet use, wasting water and energy. A booster pump reduces this inefficiency by delivering optimal pressure on demand.

5. Optimized for Modern Living:

With smart technologies like water purifiers and advanced fixtures becoming common, a booster pump ensures your home is equipped to handle these innovations seamlessly.

When to Consider Installing a Booster Pump

A booster pump is the ideal solution if:

• Your home consistently experiences low water pressure, especially in upper floors or during peak times.

• You’re upgrading to high-demand fixtures, such as rain showers or irrigation systems.

• Your appliances are underperforming due to insufficient pressure.

• You’re located in an area with naturally low water pressure, such as elevated terrains or remote locations.

Investing in a booster pump is about more than just fixing a problem; it’s about elevating your home’s water system to meet the demands of modern living. Whether you’re looking for better showers, faster appliance cycles, or efficient garden irrigation, a booster pump ensures you have the water pressure you need—when and where you need it.



---



4. Applications of Booster Pumps

Booster pumps are versatile devices that cater to a wide range of needs across residential, commercial, and industrial settings. They’re designed to enhance water pressure and ensure consistent flow, making them indispensable for a variety of applications. Here’s how booster pumps can improve water supply systems in different scenarios.

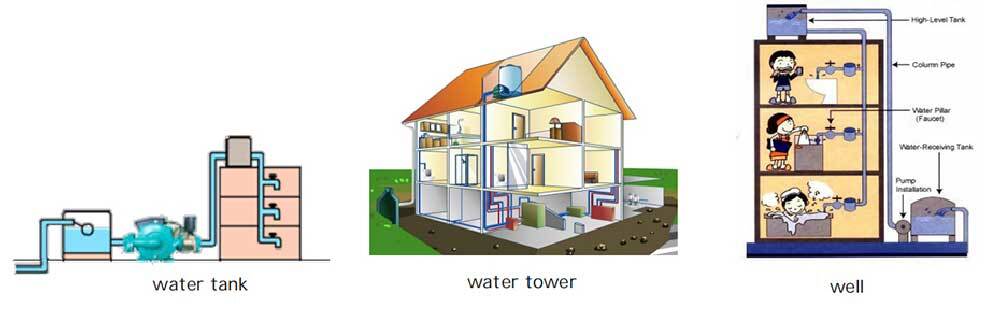

Fig 3. Application of a booster pump

1. Residential Applications

Low water pressure at home can disrupt daily routines and affect comfort. Booster pumps offer solutions for:

• Multi-Story Homes:

Water pressure tends to drop on upper floors due to gravity. Booster pumps ensure even distribution, providing reliable pressure from the ground floor to the attic.

• Appliances and Fixtures:

Modern appliances like dishwashers, washing machines, and water heaters operate more efficiently with adequate pressure. Booster pumps ensure these devices perform at their best.

• Showers and Taps:

Weak showers and slow-filling taps become a thing of the past with a properly installed booster pump.

• Rainwater or Well Systems:

Homes using rainwater collection or well water benefit from booster pumps to maintain pressure for household needs.

2. Commercial Applications

In commercial settings where water demand is high, booster pumps play a crucial role in maintaining system performance:

• Hotels and Restaurants:

Ensure consistent pressure for guest rooms, kitchens, and bathrooms, even during peak hours.

• Office Buildings:

Support large-scale plumbing systems to maintain steady water pressure across multiple floors and fixtures.

• Retail and Shopping Centers:

Handle high water demand for restrooms, cleaning systems, and fire protection systems.

3. Industrial Applications

For industrial purposes, reliable water pressure is essential for operational efficiency:

• Manufacturing Plants:

Maintain consistent water flow for cooling systems, processing equipment, and cleaning systems.

• Fire Protection Systems:

Deliver high-pressure water for fire sprinklers and emergency systems.

• Water Distribution:

Ensure adequate pressure in extensive piping networks for industrial complexes.

4. Specialized Applications

Booster pumps also address niche needs in residential and professional environments:

• Garden Irrigation:

• Boost water flow for sprinklers and irrigation systems, ensuring even distribution across gardens and lawns.

• Heating Systems:

• Enhance water flow in heating systems to improve efficiency and provide consistent warmth in colder months.

• Cleaning Tasks:

• Provide high-pressure water for tasks like washing vehicles, cleaning patios, or flushing plumbing lines.

From improving daily comfort at home to supporting the demanding needs of industrial systems, booster pumps are an essential tool for maintaining water pressure and flow. By selecting the right pump for your specific application, you can ensure efficient, reliable, and consistent performance across a variety of settings.



---



5. Types of Booster Pumps

Selecting the right booster pump starts with understanding the different types available and their specific applications. Booster pumps come in various designs, each catering to unique water pressure challenges. Here’s a breakdown of the most common types and their ideal uses.

1. Inline Booster Pumps

• Overview: Compact and easy to install directly into the water supply line, inline booster pumps are an excellent choice for homes with limited space.

• Key Features:

• Compact design, suitable for tight spaces.

• Operates quietly, ideal for indoor installations.

• Simple installation and minimal maintenance.

• Best For:

• Single-pipe pressure boosting in small homes or apartments.

• Adding extra pressure to an existing water system without major modifications.

2. Self-Priming Pumps

• Overview: Designed to lift water from below the pump level, self-priming pumps are ideal for applications where the water source is located at a lower elevation.

• Key Features:

• Automatically primes itself, eliminating the need for manual priming.

• Integrated pressure switches and sensors for automated operation.

• Reliable for systems with fluctuating water levels.

• Best For:

• Lifting water from ground-level tanks to overhead tanks.

• Homes using well water or rainwater harvesting systems.

• Applications requiring automatic functionality with minimal supervision.

3. Jet Pumps

• Overview: Known for their ability to handle long suction distances, jet pumps use an ejector system to create negative pressure and pump water efficiently.

• Key Features:

• Excellent suction capabilities for underground water sources.

• Durable and capable of handling air and water mixtures.

• Typically equipped with a pressure tank and switch for automation.

• Best For:

• Pumping water from shallow wells or underground storage tanks.

• Long and complex suction applications.

• Residential systems requiring strong, consistent pressure.

4. Multistage Centrifugal Pumps

• Overview: Built with multiple impellers, these pumps are designed to provide higher pressure and flow rates for larger systems.

• Key Features:

• Highly efficient and powerful.

• Capable of delivering consistent pressure over long distances.

• Quiet operation, despite high performance.

• Best For:

• Medium to large homes with extensive plumbing systems.

• Multi-story buildings requiring even water pressure across floors.

• Applications involving long piping networks or high-pressure demands.

5. Variable-Speed Booster Pumps

• Overview: Equipped with advanced technology, variable-speed pumps adjust their performance to match water demand in real time, making them energy-efficient and adaptable.

• Key Features:

• Intelligent control systems for precise pressure regulation.

• Energy-saving design, reducing power consumption during low-demand periods.

• Smooth operation with minimal water pressure fluctuations.

• Best For:

• Homes with varying water usage throughout the day.

• Situations requiring consistent pressure across multiple fixtures.

• Eco-conscious users looking for long-term energy savings.

Understanding the different types of booster pumps is the first step in choosing the right one for your needs. Whether you’re boosting water pressure for a single fixture or a large system, there’s a pump designed to meet your requirements. Inline pumps offer simplicity and compactness, while multistage centrifugal and variable-speed pumps deliver high performance and efficiency. Choose a pump type that aligns with your specific application to enjoy reliable and consistent water pressure.

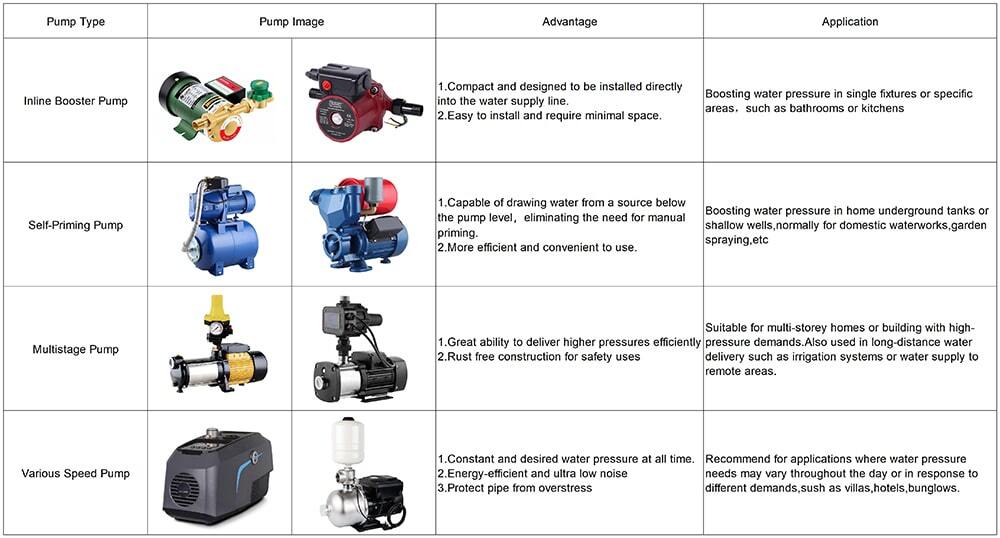

Fig 4. Types of booster pump



---



6. How to Choose the Right Booster Pump

Selecting the perfect booster pump for your home or business is a crucial step in ensuring optimal water pressure and system performance. With so many options available, it’s important to consider specific needs, water sources, and system requirements. Follow these steps and key considerations to make the right choice.

Step 1: Understand Your Water Source

• Mains Water Supply:

Municipal water pressure can fluctuate depending on demand. A booster pump stabilizes pressure, ensuring reliable flow during peak usage times.

• Shallow Wells:

If drawing water from a shallow well, opt for a pump with self-priming capabilities to handle the suction lift effectively.

• Water Storage Tanks:

Tanks located above or below ground may have inconsistent water levels. A pre-filter is recommended to prevent debris from entering the pump, especially since most booster pumps are designed for clean water use.

Step 2: Consider the Basic Types of Booster Pumps

• Jet Pumps:

Best for long suction applications like underground wells. Slightly noisier but robust for challenging environments.

• Self-Priming Pumps:

Compact, quiet, and ideal for lifting water from tanks to overhead storage.

• Inline Booster Pumps:

Perfect for small homes with limited space; quiet and easy to install.

• Multistage Centrifugal Pumps:

Powerful and efficient, suited for large homes or buildings with long piping systems.

• Variable-Speed Pumps:

Energy-efficient and adaptive, designed for fluctuating water demand.

Step 3: Assess Key Parameters

1. Pump Flow:

The flow rate (measured in L/min or m³/h) determines how much water the pump can deliver. Match the pump flow to your household’s peak usage.

2. Pump Head:

The head or lift height (measured in meters) indicates the maximum height the pump can push water. This is crucial for multi-story homes or systems with significant elevation differences.

3. Suction Head:

The suction head defines how deep a pump can lift water from a source below its level. Ensure this matches your installation height.

Step 4: Evaluate Additional Considerations

1. Power Requirements:

Check voltage and power compatibility with your electrical system. For high-demand systems, consult an electrician to ensure proper installation.

2. Noise Levels:

If the pump will be installed near living spaces, opt for quieter models or install vibration-dampening pads.

3. Space Availability:

Inline pumps are great for tight spaces, while larger pumps may require dedicated installation areas.

4. Installation Requirements:

Some pumps may need extra fittings, valves, or adapters. A professional plumber can ensure proper integration with your existing plumbing.

5. Maintenance Needs:

Look for pumps with accessible designs for easy cleaning, lubrication, or filter replacement.

Step 5: Advanced Features to Look For

• Energy Efficiency:

• Variable-speed pumps adjust power usage based on demand, reducing energy consumption and costs.

• Automatic Controls:

• Features like pressure sensors and flow switches provide hands-free operation, ensuring constant pressure without manual intervention.

• Self-Priming Capability:

• Ideal for homes with water sources located below the pump’s level, eliminating the hassle of manual priming.

• Smart Monitoring Systems:

• Some pumps offer real-time performance data, helping with maintenance and troubleshooting.

Step 6: Case Study Example

Suppose you live in a 3-story home with low water pressure (0.1 MPa) and require at least 0.3 MPa for a luxurious shower on the top floor. The pump must provide a total head of 41 meters to ensure adequate pressure across all floors.

• Best Choice: A multistage centrifugal pump or a variable-speed pump to handle the high head requirement and fluctuating usage.

• Additional Considerations:

• Limited space? Opt for a compact stainless steel pump.

• Noise-sensitive area? Choose a quieter model with vibration isolation.

Choosing the right booster pump involves understanding your water source, assessing your household or system requirements, and considering advanced features for long-term efficiency and performance. By carefully evaluating these factors, you can select a pump that ensures consistent water pressure and enhances your water supply system. Whether you’re boosting pressure for daily convenience or system reliability, the right pump makes all the difference.



---



7. Step-by-Step Installation Guide

Installing a booster pump is a straightforward process when done with careful preparation and attention to detail. Whether you’re a DIY enthusiast or hiring a professional, following these steps ensures safe and effective installation, providing optimal performance for your water system.

Pre-Installation: Preparation and Tools

1. Safety First:

• Turn off the water supply and disconnect the power source before starting the installation.

• Ensure you have the necessary personal protective equipment (PPE), such as gloves and safety glasses.

2. Gather Tools and Materials:

• Tools: Screwdrivers, adjustable wrench, pipe wrench, wire stripper, drill, voltage tester, tape measure, and caulk gun (if needed).

• Materials: Booster pump, Teflon tape, fittings, pressure tank (if not integrated), pressure gauge, electrical wires, and sealant.

3. Choose the Installation Site:

• Select a dry, well-ventilated area close to the water source and power supply.

• Ensure easy access for maintenance and troubleshooting.

• If using a non-self-priming pump, place it below the water source for proper priming.

Step-by-Step Installation

1. Prepare the Pipes:

• Measure and cut the necessary pipes to connect the pump to the water supply and distribution system.

• Clean the pipe ends and wrap threaded connections with Teflon tape to prevent leaks.

2. Install Fittings and Valves:

• Attach fittings, such as check valves and pressure relief valves, as recommended by the manufacturer.

• Install a check valve on the suction side to prevent backflow and maintain prime.

3. Mount the Booster Pump:

• Secure the pump to a stable surface using mounting hardware.

• Use a level to ensure the pump is aligned properly to minimize vibrations and noise.

4. Connect to the Water Supply:

• Attach the pump’s intake side to the main water supply line. Ensure a tight seal to prevent leaks.

• If using a pressure tank, install it after the pump on the discharge side.

5. Connect the Discharge Line:

• Attach the discharge side of the pump to the distribution system, ensuring all connections are secure and leak-free.

• Install a pressure gauge on the discharge line to monitor system pressure.

6. Electrical Wiring:

• Connect the pump to the power supply, following the manufacturer’s wiring diagram.

• Use a voltage tester to verify the power source is compatible.

• For complex electrical setups, consult a licensed electrician.

7. Test the System:

• Turn on the water supply and check for leaks in the connections.

• Switch on the pump and monitor its performance. Ensure it operates smoothly without unusual noises or vibrations.

• Use the pressure gauge to confirm the pump is achieving the desired pressure.

8. Adjust Settings (if applicable):

• If the pump has adjustable settings (e.g., pressure or flow), fine-tune them based on your system’s requirements.

Post-Installation: Final Checks

1. Seal Openings:

• Use sealant or gaskets to seal any openings or gaps in the pump housing, especially for outdoor installations.

2. Secure Wiring and Pipes:

• Organize and secure electrical wires with cable ties or clips to prevent damage.

• Use brackets or clamps to support pipes and prevent sagging or movement.

3. Monitor Initial Performance:

• Observe the pump over the next few days to ensure it continues to operate correctly.

• Address any issues, such as leaks or pressure fluctuations, immediately.

When to Seek Professional Assistance

While this guide provides a comprehensive overview, some installations may require professional expertise:

• Complex plumbing or electrical systems.

• Non-standard fittings or unusual site conditions.

• Ensuring compliance with local building and plumbing codes.

Installing a booster pump is a practical way to resolve low water pressure and optimize your water system. By following this step-by-step guide and adhering to safety protocols, you can enjoy the benefits of consistent water pressure throughout your home. If in doubt, always consult the manufacturer’s instructions or a qualified professional to ensure a smooth and successful installation.

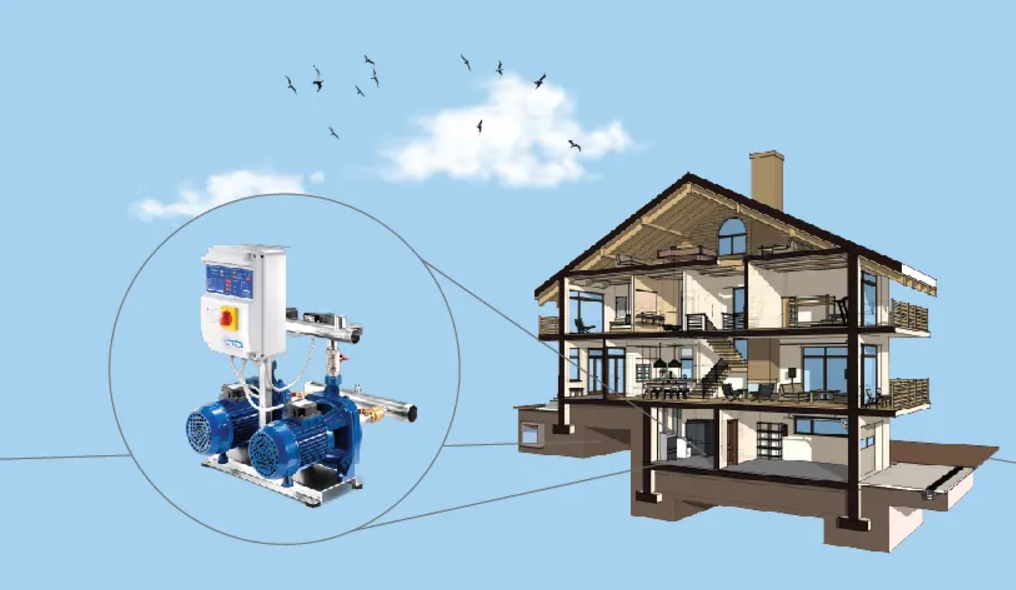

Fig 5. Booster pump installation



---



8. Maintenance and Troubleshooting

To ensure your booster pump operates efficiently and lasts for years, regular maintenance and prompt troubleshooting of issues are essential. A well-maintained pump not only performs better but also minimizes the risk of costly repairs or unexpected failures. Here’s a comprehensive guide to keeping your booster pump in top condition.

Regular Maintenance Tips

1. Inspect for Leaks:

• Periodically check for water leaks around seals, gaskets, and pipe connections.

• Address any leaks promptly to prevent system inefficiencies and damage.

2. Clean Filters and Pre-Filters:

• If your system includes filters to trap debris, clean or replace them regularly.

• Keeping filters clean prevents clogs and ensures smooth water flow.

3. Check Pressure Settings:

• Use the pressure gauge to verify the pump maintains the desired pressure levels.

• Adjust settings as needed based on changes in household or system demands.

4. Examine Seals and Bearings:

• Inspect seals for wear and replace them if they appear cracked or damaged.

• Lubricate moving parts, such as bearings, to reduce friction and prolong their lifespan.

5. Test Electrical Components:

• Ensure all electrical connections are secure and free from corrosion.

• Test the motor for overheating or unusual noises during operation.

6. Flush the System:

• Occasionally flush the system to remove sediment or mineral buildup that could obstruct water flow.

• This is especially important in areas with hard water.

Troubleshooting Common Issues

Even with proper maintenance, booster pumps may occasionally encounter problems. Here’s how to address some of the most common issues:

1. Low Water Pressure:

• Causes: Clogged impellers, worn seals, or a malfunctioning pressure switch.

• Solution: Clean or replace impellers, inspect seals, and check the pressure switch for proper operation.

2. Noisy Operation:

• Causes: Cavitation (air in the system), loose parts, or worn bearings.

• Solution: Eliminate air from the system, tighten any loose components, and lubricate or replace bearings.

3. Leaks Around the Pump:

• Causes: Damaged seals or gaskets, loose connections, or cracked pump housing.

• Solution: Replace worn seals or gaskets, tighten connections, and inspect for structural damage.

4. Pump Fails to Start:

• Causes: Electrical issues, faulty motor, or pressure switch malfunction.

• Solution: Check electrical connections, test the motor, and replace or recalibrate the pressure switch.

5. Overheating:

• Causes: Prolonged operation, inadequate ventilation, or friction in moving parts.

• Solution: Ensure proper ventilation, reduce continuous operation times, and lubricate components as needed.

6. Inconsistent Pressure:

• Causes: Blockages, sensor malfunctions, or fluctuations in water supply.

• Solution: Clear any blockages, inspect pressure sensors, and ensure a stable water source.

When to Call a Professional

While many booster pump issues can be resolved with basic troubleshooting, some situations require expert assistance:

• Persistent leaks or pressure inconsistencies.

• Electrical malfunctions beyond basic connection issues.

• Motor replacements or major component repairs.

• Ensuring compliance with local plumbing or electrical codes.

Preventive Measures for Longevity

1. Regular Servicing:

• Schedule professional inspections every 1–2 years to catch potential problems early.

2. Monitor Performance:

• Keep an eye on pressure levels and pump efficiency to detect abnormalities before they escalate.

3. Follow Manufacturer’s Guidelines:

• Adhere to recommended maintenance schedules and use approved replacement parts to maintain warranty coverage.

Regular maintenance and prompt troubleshooting are the keys to maximizing the efficiency and lifespan of your booster pump. By addressing minor issues before they become major problems, you can ensure consistent performance and reliable water pressure for years to come. Remember, a little preventive care today saves significant time and money in the future.



---



9. Advanced Features and Technologies in Booster Pumps

Modern booster pumps are no longer just basic devices for improving water pressure—they now come equipped with advanced features and innovative technologies that enhance performance, energy efficiency, and convenience. These upgrades make booster pumps smarter, more reliable, and better suited for the demands of today’s homes and businesses.

1. Energy Efficiency

One of the most significant advancements in booster pumps is the integration of energy-saving technologies. Energy-efficient booster pumps reduce power consumption while maintaining optimal performance.

• Variable-Speed Motors:

• Adjust pump speed to match water demand, minimizing energy waste during periods of low usage.

• Save on utility costs while reducing environmental impact.

• Automatic Shutoff:

• Prevents the pump from running unnecessarily when water demand stops, further conserving energy.

Why It Matters: Energy-efficient pumps not only reduce electricity bills but also have a smaller carbon footprint, making them ideal for eco-conscious users.

2. Intelligent Controls

Advanced booster pumps often come with built-in control systems that automate and optimize their operation.

• Pressure Sensors:

• Monitor real-time pressure levels and adjust the pump’s operation to maintain consistent water pressure.

• Flow Sensors:

• Detect changes in water flow and ensure the pump activates or deactivates accordingly.

• Smart Controls:

• Some pumps integrate with smart home systems, allowing users to control and monitor the pump remotely through a smartphone app.

Why It Matters: Intelligent controls simplify operation, reduce manual intervention, and protect the pump from issues like dry running or overloading.

3. Self-Priming Capability

Self-priming pumps eliminate the hassle of manual priming by automatically filling the pump with water when it starts. This feature is particularly useful in systems where the water source is below the pump, such as in rainwater harvesting or well-water systems.

Why It Matters: Self-priming pumps offer convenience, save time, and ensure reliable operation even in challenging conditions.

4. Quiet Operation

Noise reduction technologies have transformed booster pumps into quieter devices, making them suitable for residential use near living spaces.

• Vibration Dampening:

• Reduces noise caused by motor vibrations.

• Innovative Impeller Designs:

• Improve efficiency while keeping operation smooth and silent.

Why It Matters: Quiet operation ensures the pump does not disrupt daily activities, especially when installed near bedrooms or living areas.

5. Advanced Monitoring Systems

Some booster pumps feature advanced monitoring technologies that provide valuable insights into performance and maintenance needs.

• Real-Time Diagnostics:

• Track pump performance, efficiency, and operating conditions.

• Receive alerts for potential issues like overheating or leaks.

• Maintenance Reminders:

• Built-in systems that notify users when it’s time for cleaning, lubrication, or component replacement.

Why It Matters: Proactive monitoring prevents major issues, extends pump lifespan, and simplifies maintenance.

6. Specialized Impeller and Material Designs

The materials and design of modern booster pumps have been enhanced for durability, efficiency, and specialized applications.

• High-Performance Impellers:

• Improve water pressure and flow while minimizing wear and tear.

• Corrosion-Resistant Materials:

• Stainless steel and other durable materials make pumps ideal for handling hard or slightly corrosive water.

Why It Matters: These upgrades increase the pump’s reliability and longevity, even in demanding environments.

7. Smart Energy Recovery Systems

Some advanced booster pumps are equipped with systems that recover energy from excess water flow or pressure, further enhancing their efficiency.

Why It Matters: These technologies are particularly useful for large-scale or industrial applications, where energy savings can be significant over time.

Today’s booster pumps are more than just pressure-boosting devices—they’re intelligent, efficient, and built for modern demands. Whether you’re looking for a pump that saves energy, operates quietly, or integrates seamlessly into your smart home system, these advanced features make a significant difference. Investing in a technologically advanced booster pump ensures not only improved water pressure but also a smarter, more sustainable water supply system.



---



10. Real-World Examples and Use Cases

Booster pumps are versatile tools that address water pressure issues across a wide range of settings. From improving daily household tasks to powering demanding industrial systems, these pumps provide tangible benefits. Here are some real-world examples and use cases to demonstrate how booster pumps enhance performance and efficiency in various scenarios.

1. Residential Use Case: Solving Low Water Pressure in a Multi-Story Home

Scenario: A family living in a 3-story home experiences weak water flow on the upper floors, making showers and laundry frustrating.

Solution:

• The installation of a multistage centrifugal booster pump ensures consistent water pressure across all floors.

• With a head capacity of 41 meters, the pump provides adequate pressure for fixtures and appliances, including a high-flow rain shower on the top floor.

Outcome:

• Strong, steady water flow throughout the home, enhancing comfort and convenience.

• Improved performance of household appliances like washing machines and dishwashers.



Fig 6. Understanding a case of low water pressure at home

2. Commercial Use Case: Boosting Water Pressure in a Hotel

Scenario: A mid-sized hotel faces complaints from guests about low water pressure during peak occupancy hours.

Solution:

• A variable-speed booster pump system is installed to adjust water flow based on demand, maintaining consistent pressure even during high usage periods.

• Pressure sensors ensure precise control, preventing fluctuations.

Outcome:

• Satisfied guests enjoy consistent showers and reliable water supply.

• Energy-efficient operation reduces utility costs for the hotel.

3. Industrial Use Case: Ensuring Cooling System Efficiency

Scenario: A manufacturing plant relies on a cooling system that requires a steady flow of water to maintain equipment performance.

Solution:

• A multistage booster pump is integrated into the cooling system, delivering high-pressure water to meet the demands of the equipment.

• Corrosion-resistant materials in the pump ensure durability despite exposure to industrial conditions.

Outcome:

• Improved equipment cooling efficiency, reducing downtime and maintenance costs.

• Reliable operation under heavy-duty conditions.

4. Garden Irrigation: Keeping a Large Lawn Hydrated

Scenario: A homeowner with a large garden struggles to water plants effectively, as low water pressure prevents even distribution.

Solution:

• An inline booster pump is installed to enhance pressure in the irrigation system, ensuring water reaches every corner of the garden.

• The pump’s compact design allows easy integration into the existing plumbing system.

Outcome:

• Even, consistent watering, promoting healthier plants and saving time.

• Optimized irrigation with reduced water wastage.

5. Heating System Optimization: Enhancing Winter Comfort

Scenario: A home heating system suffers from inadequate water flow, resulting in uneven heat distribution during the winter.

Solution:

• A circulation booster pump is installed to improve water flow within the heating system.

• The pump ensures hot water reaches all radiators evenly, eliminating cold spots.

Outcome:

• Warm, comfortable rooms throughout the home.

• Reduced energy consumption and heating costs due to improved system efficiency.

6. Cleaning Applications: High-Pressure Washing

Scenario: A car wash business requires a pump to provide high-pressure water for cleaning vehicles effectively.

Solution:

• A self-priming booster pump with a high-pressure output is used to power the cleaning system.

• The pump’s robust design handles continuous operation during busy periods.

Outcome:

• Faster, more efficient vehicle cleaning with consistent high-pressure water.

• Durable performance that withstands the demands of commercial use.

These real-world examples highlight the versatility and value of booster pumps across diverse applications. Whether you’re solving low water pressure in a home, supporting commercial operations, or optimizing industrial processes, the right booster pump can transform your water system’s performance. By choosing a pump tailored to your specific needs, you can achieve efficiency, reliability, and long-term satisfaction.



---



11. Conclusion

Booster pumps are transformative solutions for homes, businesses, and industrial settings where consistent water pressure is essential. From solving frustrating issues like weak showers and slow-filling appliances to powering large-scale irrigation systems and optimizing heating efficiency, these pumps are indispensable tools for modern water management.

Key Takeaways

1. Understanding Booster Pumps:

• Booster pumps enhance water pressure, ensuring a steady and reliable flow in your plumbing system.

• They cater to a wide range of applications, including residential, commercial, and industrial needs.

2. Choosing the Right Pump:

• Selecting the right booster pump depends on factors like water source, system requirements, flow rate, and pressure needs.

• Advanced features like variable-speed motors, self-priming capabilities, and smart controls offer added convenience and efficiency.

3. Installation and Maintenance:

• Proper installation ensures safe and effective operation, whether through DIY efforts or professional assistance.

• Regular maintenance and prompt troubleshooting are crucial for extending the pump’s lifespan and maintaining peak performance.

4. Applications and Use Cases:

• From multi-story homes and hotels to manufacturing plants and garden irrigation, booster pumps solve diverse water pressure challenges.

Why Invest in a Booster Pump?

Low water pressure can disrupt daily life and hinder system performance, but a well-chosen and properly installed booster pump transforms this inconvenience into an opportunity for enhanced comfort and efficiency. By addressing water pressure issues proactively, you can enjoy the following benefits:

• Improved water flow and appliance performance.

• Enhanced system reliability and energy efficiency.

• Long-term savings on maintenance and operating costs.

If you’re ready to take control of your water pressure issues, now is the time to invest in a booster pump that meets your needs. Explore our range of high-quality booster pumps, equipped with advanced features for modern living. Whether you’re upgrading your home, supporting a commercial system, or optimizing industrial processes, the perfect solution is just a decision away.

Don’t let low water pressure hold you back—enhance your water system today with the right booster pump for your needs.





---



FAQs

1. How do I know if I need a booster pump?

If you’re experiencing low water pressure, especially in multi-story buildings or during peak usage times, a booster pump can help.

2. Can I install a booster pump myself?

Yes, but ensure you follow the manufacturer’s instructions and local plumbing codes. Complex setups may require professional assistance.

3. How do I maintain a booster pump?

Regularly inspect for leaks, clean filters, check seals, and monitor pressure levels.

4. What does a booster pump do?

A booster pump increases water pressure in plumbing systems, ensuring consistent flow for showers, appliances, and irrigation systems.

5. Can I use a booster pump with well water?

Yes, as long as the pump is suitable for the specific suction requirements of well water systems. Self-priming or jet pumps are ideal for this application.

6. What is the difference between a fixed-frequency and variable-speed booster pump?

Fixed-frequency pumps operate at a constant speed and pressure, while variable-speed pumps adjust their performance to match water demand, offering better energy efficiency and consistent pressure.



---



References

https://www.streampumps.com/pump-solutions/water-booster-pumping-solutions.html

https://www.streampumps.com/pump-solutions/home-booster-pump-choose-guide.html

https://www.streampumps.com/pump-introductions/4-tips-to-choose-a-booster-pump-for-your-home.html

https://famcocorp.ae/blog/pumps-articles/automatic-water-pump-controller-installation/

https://famcocorp.ae/blog/pumps-articles/where-should-a-water-booster-pump-be-installed/

https://famcocorp.ae/blog/pumps-articles/booster-pump-repair/

https://www.fastacservice.com/2024/03/understanding-the-causes-of-low-water-pressure-in-your-shower/

https://www.shutterstock.com/image-photo/big-water-pump-motor-used-tap-1014655150
