Vacuum pressure sensor, and how does it measure the vacuum pressure?

What is Vacuum Pressure?

Vacuum pressure is a measure of the pressure below atmospheric pressure or the pressure in a space that is partially or completely evacuated from air or other gases. It is typically measured in units of torr, millibar (mbar), or pascal (Pa).

In a vacuum, there is very little or no air or other gases present, and the pressure is significantly lower than atmospheric pressure. The level of vacuum pressure can be used to describe the level of evacuation in a system or the degree of air removal from a container or space.

---

How is Vacuum Pressure Measured?

Vacuum pressure can be measured using a vacuum pressure sensor, which is a device that detects and measures the pressure in a vacuum. Vacuum pressure sensors are available in various types, such as capacitance sensors, piezoelectric sensors, strain gauge sensors and they use different working principles to measure vacuum pressure.

To measure vacuum pressure using a vacuum pressure sensor, the sensor is typically connected to the system or container that is being evacuated, and the pressure reading is displayed on a gauge or meter. The specific measurement method and technique may vary depending on the type of vacuum pressure sensor being used.

In addition to vacuum pressure sensors, other instruments such as vacuum gauges, vacuum transducers, and manometers can also be used to measure vacuum pressure. These instruments use different measurement techniques, such as mechanical, electrical, or optical methods, to determine the level of vacuum pressure in a system or container.

It is important to select the appropriate measurement method and instrument for the specific application and range of vacuum pressure being measured, as well as to ensure that the instrument is calibrated and maintained properly for accurate and reliable performance.

Fig 1. Vacuum pressure sensor

---

What is a Vacuum Pressure  Sensor?

A vacuum pressure sensor is a device that measures the pressure of a vacuum, which is a pressure below atmospheric pressure. Vacuum pressure sensors are used in a wide range of applications, including in vacuum pumps, vacuum chambers, and other vacuum systems.

The sensor works by measuring the difference between the pressure inside a vacuum system and the atmospheric pressure outside the system. It typically consists of a diaphragm that deflects in response to the pressure difference and a sensing element that converts the deflection into an electrical signal that can be measured and recorded.

Vacuum pressure sensors can be based on a variety of sensing principles, including piezoelectric, capacitive, and strain gauges. They can be designed to measure a range of vacuum pressures, from the high vacuum (down to 10^-9 torr) to the low vacuum (down to a few millitorrs). The choice of sensor depends on the application and the required accuracy and resolution.

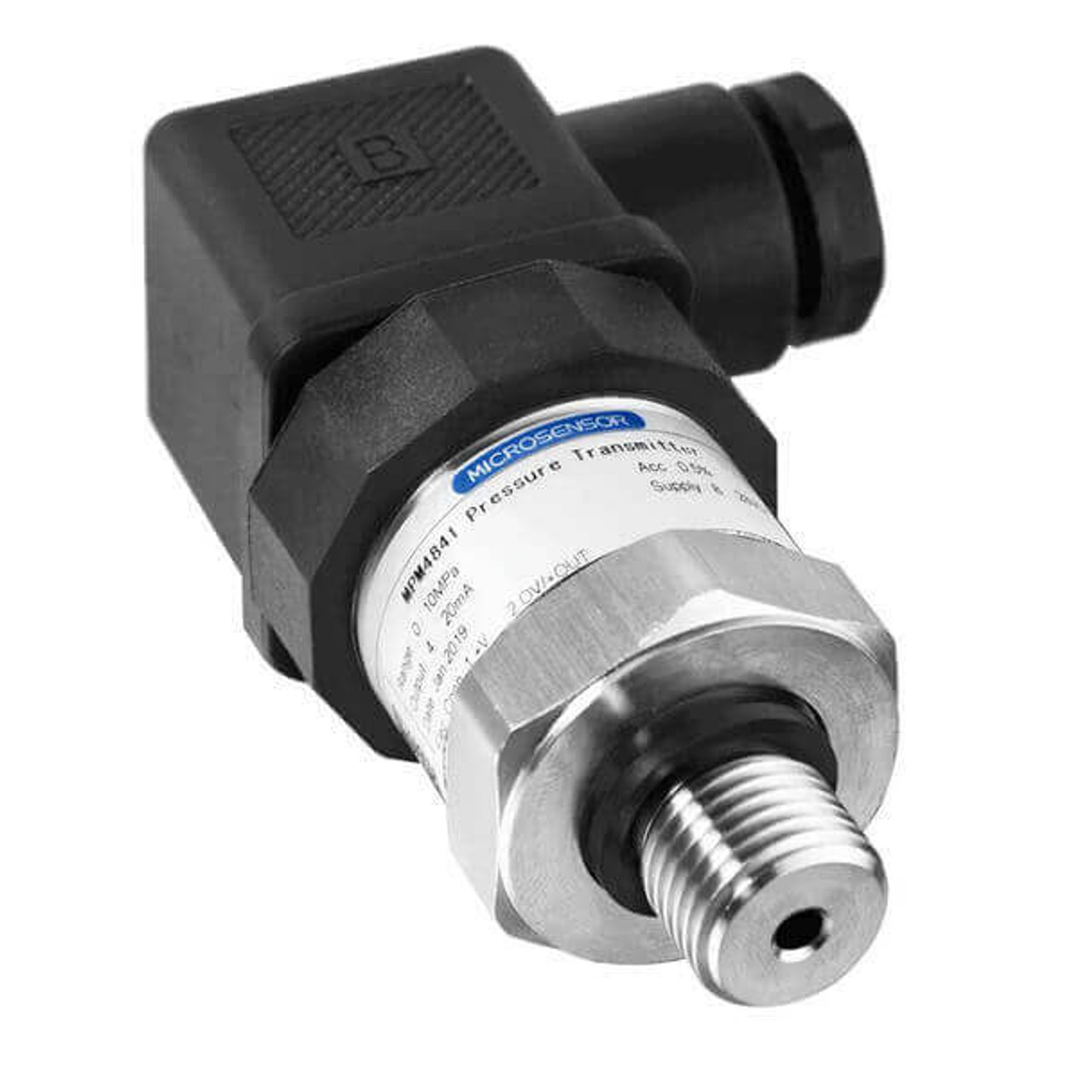

Fig 2. Vacuum pressure transmitter measures the vacuum pressure.

---

What is the Internal Part of a Vacuum Pressure Sensor?

The internal parts of a vacuum pressure sensor can vary depending on the specific design and manufacturer, but here are some common components:

Sensing element

This is part of the sensor that detects changes in pressure and converts it into an electrical signal. There are various types of sensing elements, such as piezoelectric crystals, strain gauges, or capacitive plates.

Diaphragm

This is a thin, flexible membrane that deflects in response to changes in pressure. It is often made of metal or silicon and is the component that the sensing element is attached to.

Seals and O-rings

These are used to ensure that the vacuum pressure sensor is airtight and does not leak. They are typically made of materials that can withstand low pressures and high temperatures.

Amplifier and electronics

These are the components that amplify and process the electrical signal from the sensing element. They can be integrated into the sensor or separate from it, depending on the design.

Housing

This is the outer casing of the sensor that protects the internal components from damage and environmental factors.

Fig 3. Internal structure

---

Vacuum Pressure Sensor Working Principle

Vacuum pressure sensors work based on the principle that a pressure difference across a diaphragm causes it to deflect. The deflection is then converted into an electrical signal by a sensing element, which can be measured and used to determine the pressure.

Here's a more detailed explanation of the working principle of a vacuum pressure sensor:

• The vacuum pressure sensor is connected to the vacuum system being measured through a port.
• The pressure difference between the vacuum system and the atmospheric pressure outside causes a deflection of the diaphragm inside the sensor.
• The deflection is detected by the sensing element, which can be a piezoelectric crystal, a strain gauge, or a capacitive plate.
• The sensing element converts the deflection into an electrical signal that is proportional to the pressure difference.
• The electrical signal is then amplified and processed by the electronics inside the sensor.
• The processed signal is output as a voltage, current, or digital signal that can be read by a computer, controller, or other device.

The accuracy and sensitivity of a vacuum pressure sensor depend on the quality of the sensing element and the electronics, as well as the design of the diaphragm and housing. Different types of vacuum pressure sensors have different ranges of sensitivity and accuracy and are used for various applications.

Vacuum Pressure Sensor Formula

The formula for a vacuum pressure sensor depends on the specific type of sensor and the output signal it provides.

Here are some common formulas for different types of vacuum pressure sensors:

Piezoelectric vacuum pressure sensor

V = kP

where V is the voltage output, P is the pressure input, and k is a constant determined by the sensor's design and calibration.

Capacitive vacuum pressure sensor

C = εA/d

where C is the capacitance of the sensor, ε is the permittivity of the dielectric material between the plates, A is the area of the plates, and d is the distance between the plates. The capacitance changes in response to changes in pressure, which can be measured and converted to a voltage or current output.

Strain gauge vacuum pressure sensor

∆R/R = (K/2G)(∆D/D - v∆P/P)

where ∆R/R is the relative change in resistance of the strain gauge, K is a constant determined by the gauge's material and geometry, G is the shear modulus of the gauge material, ∆D/D is the relative change in gauge length due to the pressure change, v is the Poisson's ratio of the gauge material, and ∆P/P is the relative change in pressure.

These formulas are simplified and may not apply to all vacuum pressure sensors. The actual formula used depends on the specific design and calibration of the sensor.

Here's a table summarizing some common formulas for different types of vacuum pressure sensors:

Table 1. Comparing different formulas used for vacuum pressure measurement

Sensor type	Formula
Piezoelectric	V = kP
Capacitive	C = εA/d
Strain gauge	∆R/R = (K/2G)(∆D/D - v∆P/P)

---

Vacuum Pressure Sensor Types

There are various types of vacuum pressure sensors, each with its characteristics and applications. Here are some of the most common types:

Capacitive Vacuum Pressure Sensor

This type of sensor measures the capacitance changes of a capacitor due to the deflection of a diaphragm under a vacuum. It offers high sensitivity and accuracy and is often used in scientific and industrial applications.

Piezoelectric Vacuum Pressure Sensor

This type of sensor uses a piezoelectric crystal to convert pressure-induced mechanical stress into an electrical signal. It is known for its fast response time and ruggedness and is commonly used in automotive, aerospace, and industrial applications.

Resonant Wire Vacuum Pressure Sensor

This type of sensor uses the resonant frequency of a wire to measure the pressure in a vacuum system. It is highly accurate and stable and is often used in semiconductor and vacuum coating applications.

There are other types of vacuum pressure sensors as well, such as diaphragms, Bourdon tubes, and capacitive manometers, each with their unique features and applications. The choice of vacuum pressure sensor depends on the specific application requirements, such as the required pressure range, accuracy, response time, and environmental conditions.

Here's a more detailed overview of the working principle, applications, pros, and cons of some common types of vacuum pressure sensors:

Capacitive Vacuum Pressure Sensor

Working Principle

This type of sensor consists of a diaphragm and a fixed electrode. When pressure is applied to the diaphragm, it moves and changes the distance between the diaphragm and the electrode, resulting in a change in capacitance. This change in capacitance is then converted into a voltage output.

Applications

Capacitive vacuum pressure sensors are commonly used in semiconductor manufacturing, vacuum packaging, and other industrial applications where high accuracy and reliability are required.

Pros

High accuracy, good repeatability, low hysteresis, and wide pressure range.

Cons

Sensitivity can be affected by temperature changes and the presence of dust or moisture. Can be expensive compared to other types of sensors.

Fig 4. Capacitive Pressure Sensor

Piezoelectric Vacuum Pressure Sensor

Working Principle

This type of sensor uses a piezoelectric crystal to generate an electrical signal when pressure is applied. The crystal generates a voltage proportional to the applied pressure, which can be measured and converted into a pressure reading.

Applications

Piezoelectric vacuum pressure sensors are commonly used in automotive, aerospace, and industrial applications where high reliability and fast response time are required.

Pros

Fast response time, ruggedness, and wide pressure range.

Cons

Can be affected by temperature changes and mechanical shock. Can be more expensive compared to other types of sensors.

Fig 5. Piezoelectric Pressure Sensor - 0 to 1000 bar - 450°C - M5x0.5

Resonant Wire Vacuum Pressure Sensor

Working Principle

This type of sensor uses the resonant frequency of a wire to measure the pressure in a vacuum system. The wire is excited to vibrate at its resonant frequency, and the frequency shift due to gas damping is measured. The frequency shift is proportional to the gas pressure, which can be measured and converted into a pressure reading.

Applications

Resonant wire vacuum pressure sensors are commonly used in semiconductor manufacturing, vacuum coating, and scientific research.

Pros

High accuracy, good long-term stability, and can measure a wide range of pressures.

Cons

Can be expensive and can be affected by gas composition and temperature changes.

The choice of vacuum pressure sensor depends on the specific application requirements, such as the required pressure range, accuracy, response time, and environmental conditions.

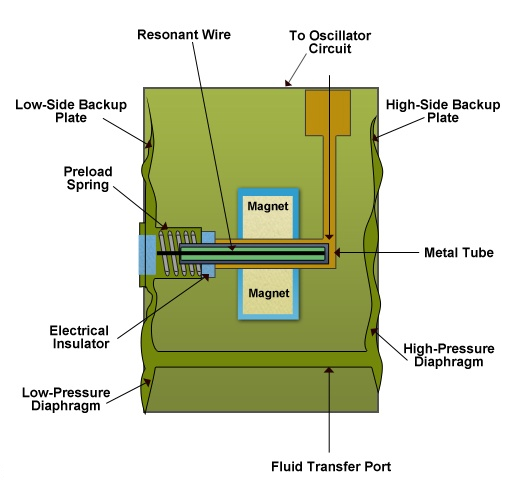

Fig 6. Resonant Wire Pressure Transducer

Table 1. comparison table of the different types of vacuum pressure sensors

Type	Working Principle	Applications	Pros	Cons
Capacitance	Measures change in capacitance due to the movement of a diaphragm	Industrial vacuum processes, semiconductor manufacturing, leak detection	High accuracy, good resolution, can measure low pressures	Limited range, affected by temperature, requires calibration
Piezoresistive	Measures change in resistance due to the deformation of a diaphragm	Semiconductor manufacturing, leak detection, vacuum pumps	High accuracy, good resolution, can measure low pressures	Limited range, affected by temperature, requires calibration

It's important to note that the specific pros and cons of each type of vacuum pressure sensor may vary depending on the specific model and manufacturer.

---

What are the Vacuum Pressure Sensor Applications and Usage?

Vacuum pressure sensors have a wide range of applications and usage across different industries. Here are some common applications and usages of vacuum pressure sensors:

1. Industrial processes: Vacuum pressure sensors are widely used in various industrial processes such as vacuum furnaces, vacuum coating, vacuum drying, and vacuum distillation. These sensors are used to monitor and control the vacuum level to achieve desired outcomes.
2. Leak detection: Vacuum pressure sensors are used to detect leaks in vacuum systems or containers. Any changes in the vacuum pressure can indicate a leak, which can then be identified and repaired.
3. Scientific research: Vacuum pressure sensors are used in scientific research and experimentation to create and maintain a vacuum environment. They are critical in applications such as vacuum chambers, particle accelerators, and space simulation chambers.
4. Medical equipment: Vacuum pressure sensors are used in medical equipment such as vacuum suction machines, ventilators, and anesthesia machines.
5. Environmental monitoring: Vacuum pressure sensors are used in environmental monitoring systems to measure atmospheric pressure and air quality.
6. Aerospace and aviation: Vacuum pressure sensors are used in aerospace and aviation applications such as altitude sensing and control systems.
7. Automotive industry: Vacuum pressure sensors are used in automotive applications such as engine management systems, fuel injection systems, and brake booster systems.

Overall, vacuum pressure sensors are essential components in various applications and usages across different industries, providing accurate and reliable measurements of vacuum pressure.

---

Installation and Maintenance

How to Use a Vacuum Pressure Sensor?

Using a vacuum pressure sensor typically involves the following steps:

1. Connect the sensor: The vacuum pressure sensor should be connected to the vacuum system or container being measured. The sensor will typically have an inlet port that connects to the system or container.
2. Power the sensor: The vacuum pressure sensor will require a power source to operate. Depending on the sensor, this may involve connecting a power supply or battery to the sensor.
3. Calibrate the sensor: Before use, the vacuum pressure sensor should be calibrated to ensure accurate and reliable measurements. Calibration typically involves exposing the sensor to a known vacuum pressure and adjusting the sensor's output to match the known pressure.
4. Read the output: Once the sensor is connected, powered, and calibrated, it will begin to output measurements of the vacuum pressure. The output may be in the form of an electrical signal or a digital display, depending on the sensor.
5. Monitor and control the vacuum: Based on the output of the vacuum pressure sensor, operators can monitor and control the vacuum level in the system or container. This may involve adjusting vacuum pumps or valves to maintain the desired vacuum pressure.

It's important to follow the manufacturer's instructions when using a vacuum pressure sensor to ensure proper operation and accurate measurements. Additionally, it's important to regularly maintain and calibrate the sensor to ensure continued accuracy and reliability.

Vacuum Pressure Sensor Calibration Methods and Steps

Vacuum pressure sensor calibration involves comparing the output of the sensor to a known standard or reference at different vacuum pressure levels. The calibration method and steps may vary depending on the type and model of the sensor, but here are some general steps for vacuum pressure sensor calibration:

1. Preparation: Before starting the calibration process, ensure that the vacuum pressure sensor is clean and free of any debris or contamination that may affect the accuracy of the measurement. Also, ensure that the calibration equipment, such as a vacuum standard, is properly set up and functioning correctly.
2. Establish reference pressure levels: Select two or more reference pressure levels that cover the expected range of the vacuum pressure sensor. These levels should be traceable to a recognized standard, such as NIST or PTB.
3. Connect the sensor to the calibration equipment: Connect the vacuum pressure sensor to the calibration equipment, such as a vacuum standard or pressure reference gauge, using appropriate fittings and tubing. Ensure that the connections are secure and airtight.
4. Record reference pressures: Record the reference pressures at each pressure level using the calibration equipment. These readings will serve as the reference or standard values for the calibration.
5. Record sensor output: Record the output of the vacuum pressure sensor at each reference pressure level.
6. Compare readings: Compare the readings from the vacuum pressure sensor to the reference or standard values. Calculate the error or deviation between the sensor output and the reference value.
7. Adjust the sensor output: If there is a significant error or deviation between the sensor output and the reference value, adjust the sensor output accordingly. This may involve adjusting the signal gain, zero offset, or other settings on the sensor.
8. Repeat calibration: Repeat the calibration process at each reference pressure level to ensure accuracy and consistency.
9. Record calibration data: Record the calibration data, including the reference pressures, sensor output, and any adjustments made. This data can be used to generate a calibration certificate or report.
10. Verify accuracy: Verify the accuracy of the vacuum pressure sensor periodically by repeating the calibration process or using a known reference standard.

It's important to follow the manufacturer's instructions and recommended calibration procedures for the specific vacuum pressure sensor being used to ensure accurate and reliable measurements.

Vacuum Pressure Sensor Safety Tips

Here are some safety tips to consider when working with vacuum pressure sensors:

1. Follow manufacturer's instructions: Always follow the manufacturer's instructions for the installation, use, and maintenance of the vacuum pressure sensor.
2. Wear appropriate protective equipment: Depending on the application, it may be necessary to wear appropriate protective equipment, such as gloves, safety glasses, or respiratory protection.
3. Handle with care: Vacuum pressure sensors are delicate instruments that can be easily damaged by rough handling or accidental impact. Handle the sensor with care and avoid subjecting it to excessive vibration or shock.
4. Use proper fittings and tubing: Use proper fittings and tubing when connecting the vacuum pressure sensor to the process or vacuum system. Ensure that the connections are secure and airtight.
5. Observe pressure and temperature limits: Vacuum pressure sensors are designed to operate within specific pressure and temperature ranges. Observe the specified limits to avoid damage to the sensor or the process.
6. Monitor for leaks: A vacuum leak can pose a safety hazard and affect the accuracy of the sensor. Monitor the system for leaks and repair them promptly.
7. Disconnect power before maintenance: When performing maintenance or replacing the vacuum pressure sensor, disconnect the power source to avoid electrical shock.
8. Dispose of properly: If the vacuum pressure sensor needs to be disposed of, follow appropriate disposal procedures by local regulations and environmental guidelines.
9. Train personnel: Ensure that personnel who will be working with the vacuum pressure sensor are properly trained in its safe handling and use.

Following these safety tips can help ensure the safe and reliable operation of vacuum pressure sensors and reduce the risk of accidents or injuries.

Can a Vacuum Pressure Sensor be Used in Harsh Environments?

Yes, vacuum pressure sensors can be used in harsh environments, depending on the type of sensor and the specific environmental conditions. Some vacuum pressure sensors are designed to withstand harsh conditions, such as high temperatures, extreme pressures, and corrosive or abrasive materials. For example, certain types of vacuum pressure sensors are made of durable materials such as stainless steel or ceramic and are designed to operate in high-temperature or high-pressure environments.

However, it is important to ensure that the vacuum pressure sensor is suitable for the specific application and environment in which it will be used. Factors to consider include temperature and pressure ranges, chemical compatibility, and exposure to vibration, shock, or other types of mechanical stress. In some cases, it may be necessary to install additional protection or shielding to prevent damage to the sensor.

It is also important to follow the manufacturer's recommendations for the installation, operation, and maintenance of the vacuum pressure sensor, to ensure its safe and reliable performance in harsh environments.

---

Vacuum Pressure Sensor Pros and Cons

Here are some pros and cons of vacuum pressure sensors:

Advantages

1. Accurate measurement: Vacuum pressure sensors provide accurate and reliable measurement of vacuum pressure, which is critical for many industrial, scientific, and medical applications.
2. Wide range of applications: Vacuum pressure sensors can be used in a wide range of applications, including industrial, aerospace, automotive, medical, and research.
3. Improved process control: Vacuum pressure sensors can improve process control by monitoring and controlling the vacuum pressure in a system, leading to more consistent and efficient performance.
4. Easy integration: Vacuum pressure sensors can be easily integrated into existing systems, making them a cost-effective solution for many applications.
5. Low maintenance: Vacuum pressure sensors are generally low-maintenance devices, requiring only periodic calibration and cleaning to ensure accurate performance.

Disadvantages

1. Limited pressure range: Vacuum pressure sensors are designed to measure low pressures, typically in the range of 1 torr to 10^-9 torr. They may not be suitable for applications that require measurement of higher pressures.
2. Fragile: Vacuum pressure sensors can be fragile and susceptible to damage from rough handling or impact.
3. Environmental limitations: Some vacuum pressure sensors may have limitations on the environmental conditions in which they can be used, such as temperature or pressure ranges or exposure to corrosive or abrasive materials.
4. Calibration requirements: Vacuum pressure sensors require periodic calibration to maintain accuracy, which can be a time-consuming and costly process.

---

How to Choose the Right Vacuum Pressure Sensor?

Choosing the right vacuum pressure sensor depends on several factors. Here are some key considerations to keep in mind:

Pressure Range

Determine the range of pressures you need to measure. Vacuum pressure sensors are available in various ranges, from low vacuum (e.g., 0 to -1 bar) to high vacuum (e.g., 0 to -0.1 bar or lower). Select a sensor with a range that encompasses your specific application requirements.

Accuracy

Consider the level of accuracy required for your application. Different sensors offer varying levels of accuracy, typically expressed as a percentage of the full-scale reading. Higher accuracy often comes at a higher cost, so balance your accuracy needs with your budget.

Sensing Technology

Vacuum pressure sensors employ different sensing technologies, such as capacitive, piezoelectric, or strain gauge. Each technology has its advantages and limitations. Capacitive sensors, for example, offer good accuracy and stability but may require additional signal conditioning. Piezoelectric sensors are suitable for dynamic pressure measurements but may not be ideal for static vacuum applications. Understand the pros and cons of each technology and choose the one that aligns with your requirements.

Environmental Conditions

Consider the environmental conditions in which the sensor will operate. Factors such as temperature range, humidity, vibration, and exposure to corrosive substances may impact sensor performance. Ensure that the sensor you select can withstand the specific environmental conditions of your application.

Output and Compatibility

Determine the desired output signal of the sensor. Common output options include analog (e.g., voltage or current), digital (e.g., Modbus, CANbus), or wireless. Ensure that the sensor's output is compatible with your control system or data acquisition device. Additionally, consider if any special protocols or communication interfaces are required.

Physical Considerations

Take into account the physical aspects of the sensor, such as size, mounting options, and electrical connections. Ensure that the sensor's dimensions and mounting method align with the available space and installation requirements of your application.

Cost and Budget

Evaluate the cost of the sensor, considering both the initial purchase price and any long-term maintenance or calibration expenses. Balancing your budget with the required performance and features is essential.

Reputation and Reliability

Research the reputation and reliability of the sensor manufacturer or brand. Look for reviews, customer feedback, and certifications to ensure you are choosing a reliable and reputable product.

By carefully considering these factors, you can select a vacuum pressure sensor that meets your specific application requirements in terms of pressure range, accuracy, sensing technology, environmental conditions, output compatibility, physical considerations, cost, and reliability.

---

Conclusion

In conclusion, vacuum pressure sensors are important devices that are used to measure the level of vacuum pressure in a system or container. They are widely used in various industries and applications, such as semiconductor manufacturing, aerospace, automotive, and medical equipment. Vacuum pressure sensors are available in different types, each with its own working principle, advantages, and limitations. When choosing a vacuum pressure sensor, it is important to consider factors such as the measurement range, accuracy, sensitivity, response time, and environmental conditions. Popular brands of vacuum pressure sensors include Microsensor, ifm, Endress+hauser, Keller and Rosemount. By selecting the right vacuum pressure sensor for a specific application, it is possible to ensure accurate and reliable vacuum pressure measurement and optimal system performance.

To Recap

1.What is a vacuum pressure sensor?

A vacuum pressure sensor is a device that measures the level of vacuum pressure within a system or container.

2.How does a vacuum pressure sensor work?

Vacuum pressure sensors work based on various principles such as thermal conductivity, capacitive sensing, and piezoelectric effect, among others.

3.What are the different types of vacuum pressure sensors?

The different types of vacuum pressure sensors include thermal conductivity sensors, ionization sensors, piezoelectric sensors, capacitive sensors, and Pirani gauges.

4.What are the applications of vacuum pressure sensors?

Vacuum pressure sensors are used in various applications such as semiconductor manufacturing, aerospace, automotive, and medical equipment.

5.How do you calibrate a vacuum pressure sensor?

To calibrate a vacuum pressure sensor, a known reference pressure source is used to verify the accuracy of the sensor.

6.What is the accuracy of a vacuum pressure sensor?

The accuracy of a vacuum pressure sensor varies depending on the type, make, and model. It can range from a few percent to less than 0.1% of full scale.

7.How do you select the right vacuum pressure sensor?

To select the right vacuum pressure sensor, you need to consider factors such as the measurement range, accuracy, sensitivity, response time, and environmental conditions.

8.What are the advantages of vacuum pressure sensors?

Vacuum pressure sensors offer advantages such as high accuracy, fast response time, and compatibility with various types of gases and fluids.

9.What are the limitations of vacuum pressure sensors?

The limitations of vacuum pressure sensors include environmental sensitivity, susceptibility to damage from overpressure, and limited measurement range.

10.Can vacuum pressure sensors be used in harsh environments?

Some vacuum pressure sensors are designed to operate in harsh environments such as extreme temperatures, corrosive substances, and high-pressure conditions.

11.How can you maintain a vacuum pressure sensor?

Regular maintenance of vacuum pressure sensors includes cleaning, calibration, and replacement of worn-out parts.

12.How do you troubleshoot a vacuum pressure sensor?

Troubleshooting a vacuum pressure sensor involves checking for electrical connections, verifying calibration, and replacing any damaged or worn-out components.

13.Can vacuum pressure sensors be used for pressure measurements as well?

Some vacuum pressure sensors can be used to measure pressure as well, as they can operate within a wide range of pressures.

14.What is the difference between absolute pressure and gauge pressure?

Absolute pressure is the pressure relative to a vacuum, while gauge pressure is the pressure relative to atmospheric pressure.

15.What is the price range of vacuum pressure sensors?

The price range of vacuum pressure sensors varies depending on the type, make, and model. They can range from a few hundred dollars to several thousand dollars.

---

References

https://www.parker.com/Online/Product%20Images/Pneumatic-Division/zoom_1000x1000/MPS-34_pressure_sensor_zm.jpg

https://www.directindustry.com/prod/thyracont-vacuum-instruments-gmbh/product-39352-556507.html

https://www.brooksinstrument.com/en/products/pressure-vacuum

https://qph.cf2.quoracdn.net/main-qimg-49dbb3a561ca3ae35f86085dcf0d016f.webp

https://instrumentationtools.com/capacitive-pressure-sensor/

https://en.pm-instrumentation.com/piezoelectric-pressure-sensor-0-to-1000-bar-450-c-m5-0-5

https://arunmicro.com/news/how-does-an-ion-gauge-work/

https://automationforum.co/what-is-resonant-wire-pressure-transducer/
