Close-coupled Submersible Well Pumps—SCM Series

Description

The SCM/SSCM submersible well pump is a compact and robust solution for residential and commercial well applications. Designed with a 5-inch body diameter and a close-coupled structure, it is easy to install and maintain. The pump is well-suited for efficiently pumping water from wells, reservoirs, and other water sources, ensuring consistent and reliable performance.

Application

• Water supply from wells, tanks, or reservoirs
• Domestic, civil, and industrial applications
• Irrigation and rainwater harvesting systems
• Gardening and other outdoor water uses

Features

• Cost-effective installation and portability: Designed for ease of use and transport.
• High-pressure performance: Provides water delivery up to 102 meters.
• Powerful flow rate: Pumps up to 6.6 m³/h efficiently.
• Energy-efficient motor: Ensures energy savings and long motor life.
• Stainless steel construction: Durable and resistant to wear and corrosion.
• Enhanced safety: Double-end mechanical seals and lip seals for secure operation.
• Customization available: Options for motor voltage and control mode to suit diverse needs.

Working Range

• Pumping liquid: Clean water free of solids and abrasives, non-aggressive.
• Maximum submersion depth: 80 meters.
• Maximum fluid temperature: 35°C.
• Maximum solid content: 0.15%.
• Outlet size: 1.25 inches.
• Minimum well diameter: 127 mm.
• Protection class: IP68.
• Insulation class: F.

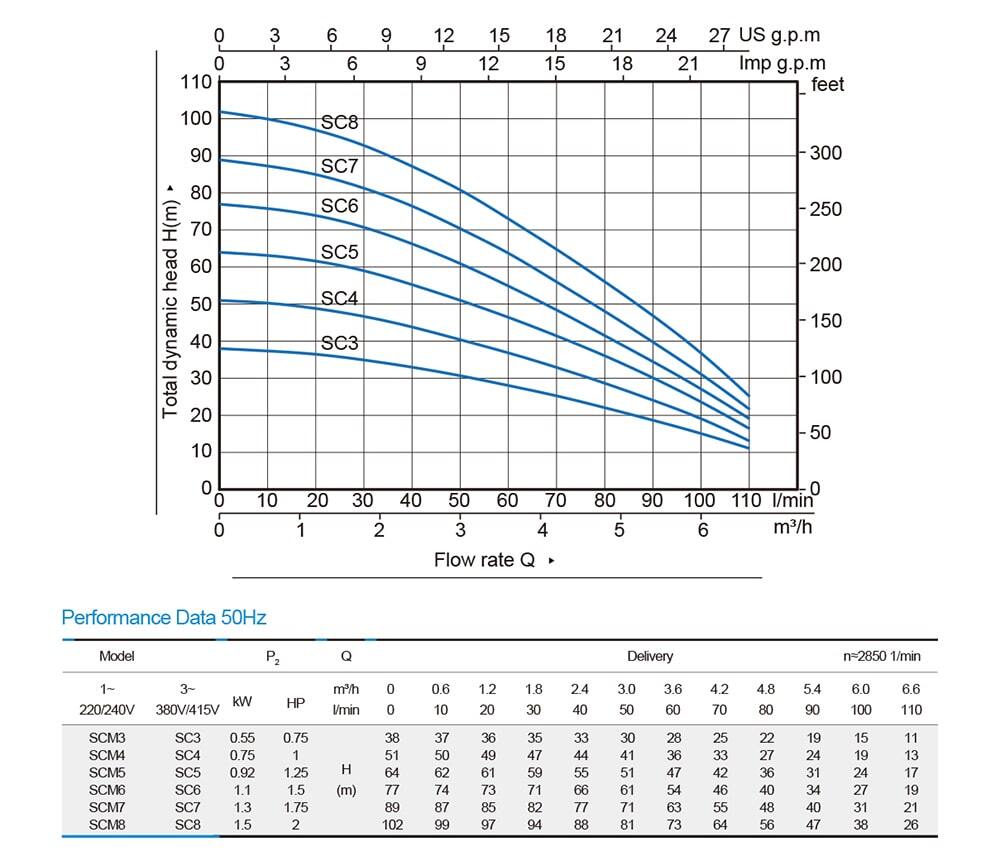

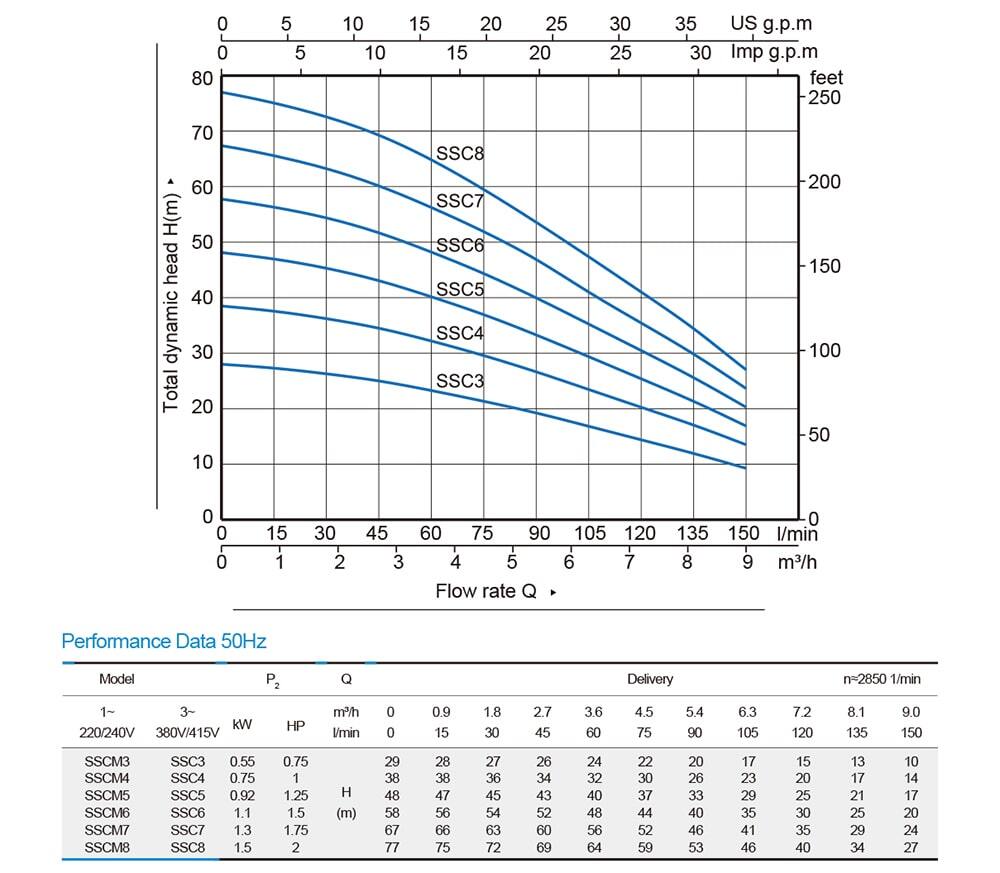

Performance Curve & Technical Data
