Digital Timer Power ON Start, Relay Control Output - LE4SA

(No reviews yet) Write a Review
SKU:
LE4SA
MPN:
LE4SA
Weight:
500.00 Grams

Description

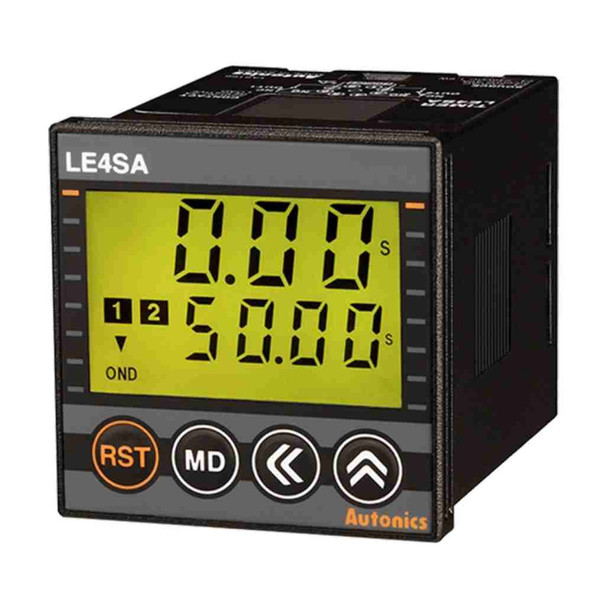

Autonics LCD Digital Timer - LE4SA

MULTI time, MULTI operation, Relay, Backlight function



The Autonics controller LE4SA is a timer with 4-digit 7-segment LCD, relay control output and Count up / Count down Operation method.

As a quick report, this timer provides:

  • 4-digit 7-segment LCD
  • Method of operation: Count up, Count down
  • Terminal 8-pin plug
  • Power supply: 24-240 VAC ~, 24-240 VDC
  • Time-limit SPDT (1c): 2 or Time-limit SPDT (1c): 1 + Instantaneous SPDT (1c): 1 depending on output operation mode
  • Time operation: POWER ON START
  • ≤ 100 ms Return time
  • Setting range: 0.01 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 0 min 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 0 hour 1 min to 99 hour 59 min, 0.01 hour to 99.99 hour, 0.1 hour to 999.9 hour, 1 our to 9999 hour
  • ≤ ± 0.01% ± 0.05 sec Error

Control output

ON DELAY, INTERVAL, FLICKER, STAR-DELTA, TWIN are the output operations for the LE4SA.

Temperature

There are limitations in temperature and humidity in which LE4SA counter is used:

  • Storage temperature: -25 … 65°C
  • Storage humidity: 35 to 85%RH
  • Ambient temperature: -10 … 55°C
  • Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.



Click on the following link to view other Autonics timer products.

Series Information

LE4S Series

LCD Display Digital Timers

The Autonics LE4S series digital timers feature LCD Backlight display with compact, space-saving design. The timers also feature various output operation modes as well as configurable time setting range and one-shot output time for diverse applications. Users can configure set value and time range independently in flicker, flicker I, ON-OFF delay, and ON-OFF delay I modes.

LE4S Series Main features

  • Mounting space saving with compact design: downsized by approx. 22% in depth compared to existing models (length of panel on the back side is 56 mm)
  • Available to set each value and time range separately when choosing Flicker (FK, FK I) or ON-OFF Delay (ON OFF D, ON OFF D I) output mode
  • Adds Flicker 1 mode (LE4SA)
  • Settable One-shot output time (0.01 to 99.99 sec) (existing model: fixed 0.5 sec)
  • Configuration time range (added 9.999 sec): settable by 0.001 sec unit
  • Selectable min. input time: 1 ms or 20 ms (LE4S)
  • Improved return time: 100 ms
  • Backlight ON / OFF function
  • Wide time range (0.01 sec to 9999 hour)
  • Lock setting function for saving setting data
  • Soft touch setting
  • High visibility display with backlight

About Autonics timer

"Autonics" is a leading provider of automation solutions from South Korea. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices. This company represents 14 timers series:

  • LE8N Series: Compact 8-digit LCD digital timers (indicator only)
  • LE3S Series: Thumbwheel switch LCD display digital timers
  • LE4S Series: LCD display digital timers
  • FSE Series: 8-pin plug type digital timers
  • LE7M-2 Series: Digital week/year timers
  • ATM Series: Miniature analog timers
  • ATS Series: Compact multi-function analog timers
  • ATS8SD-4 Series: Compact star-delta analog timers
  • ATS8P Series: Compact power off delay analog timers
  • ATS8W/ATS11W series: Compact analog twin timers
  • ATN Series: Multi-function analog timers
  • AT8SDN Series: Star-delta analog timers
  • AT8PSN/AT8PMN Series: Power off delay analog timers
  • ATE8 Series: Simple operation analog timers

Autonics timers are mainly used in:

  • Automotive industry
  • Packaging industry
  • Elevator Industry
  • Plastics/Rubber industry
  • Semiconductor/Display
  • Food/Beverage industry
  • Machine Tools
  • Logistics
  • Medical/Pharmaceutical industry

Documents

You may want to read this product's catalog. If so, please click to view the LE4SA datasheet.
View AllClose

Warranty Information

One Year Warranty
View AllClose

Additional Information

Display method:
4-digit 7-segment LCD
Operation method:
Count up, Count down
Output Operation:
ON DELAY, INTERVAL, FLICKER, STAR-DELTA, TWIN
Time operation:
POWER ON START
Terminal:
8-pin plug
Power supply:
24-240VAC~, 24-240VDC @(=)
Setting range:
0.01 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 0 min 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 0 hour 1 min to 99 hour 59 min, 0.01 hour to 99.99 hour, 0.1 hour to 999.9 hour, 1 our to 99
Control output_Relay:
Time-limit SPDT (1c): 2 or Time-limit SPDT (1c): 1 + Instantaneous SPDT (1c): 1 depending on output operation mode
Backlight:
Backlight function
Approval:
@(CE) @(CULUS)
View AllClose
