High Flow Centrifugal Pump - SDK Series
- SKU:
- SDK Series
- Weight:
- 0.00 Grams
Description
Series Overview
- Flow range: 65-560 L/min
- Head range: 12-28 m
- Power range: 370-2200 W
- Connection size range: 1" / 1.5" / 2"
Description
The SDK series pumps are designed for the efficient transfer of clean water and non-corrosive fluids. These pumps offer compact size, exceptional reliability, user-friendly operation, and high efficiency with minimal maintenance requirements. They are ideal for boosting water pressure for residential use, irrigation, and general industrial purposes. Note: Pumps should be installed in a covered area, protected from the weather.
Features
- Economical, reliable, and safe
- Efficient transfer: designed for the smooth movement of clean water and non-corrosive fluids
Application
- Residential use: Perfect for boosting household water pressure.
- Irrigation use: Suitable for small-scale and large-scale irrigation.
- Industrial purposes: Useful for a wide variety of industrial applications.
Working Conditions
- Maximum ambient temperature: +40°C
- Maximum fluid temperature: 80°C
- Maximum pressure: 10 bar
Construction Materials
- Pump body: Cast iron
- Motor housing: Aluminum
- Motor: Closed, externally ventilated
- Impeller: Brass
- Insulation: B/F class
- Duty: Continuous rated
- Mechanical seal: Steatite ceramic/metalized carbon

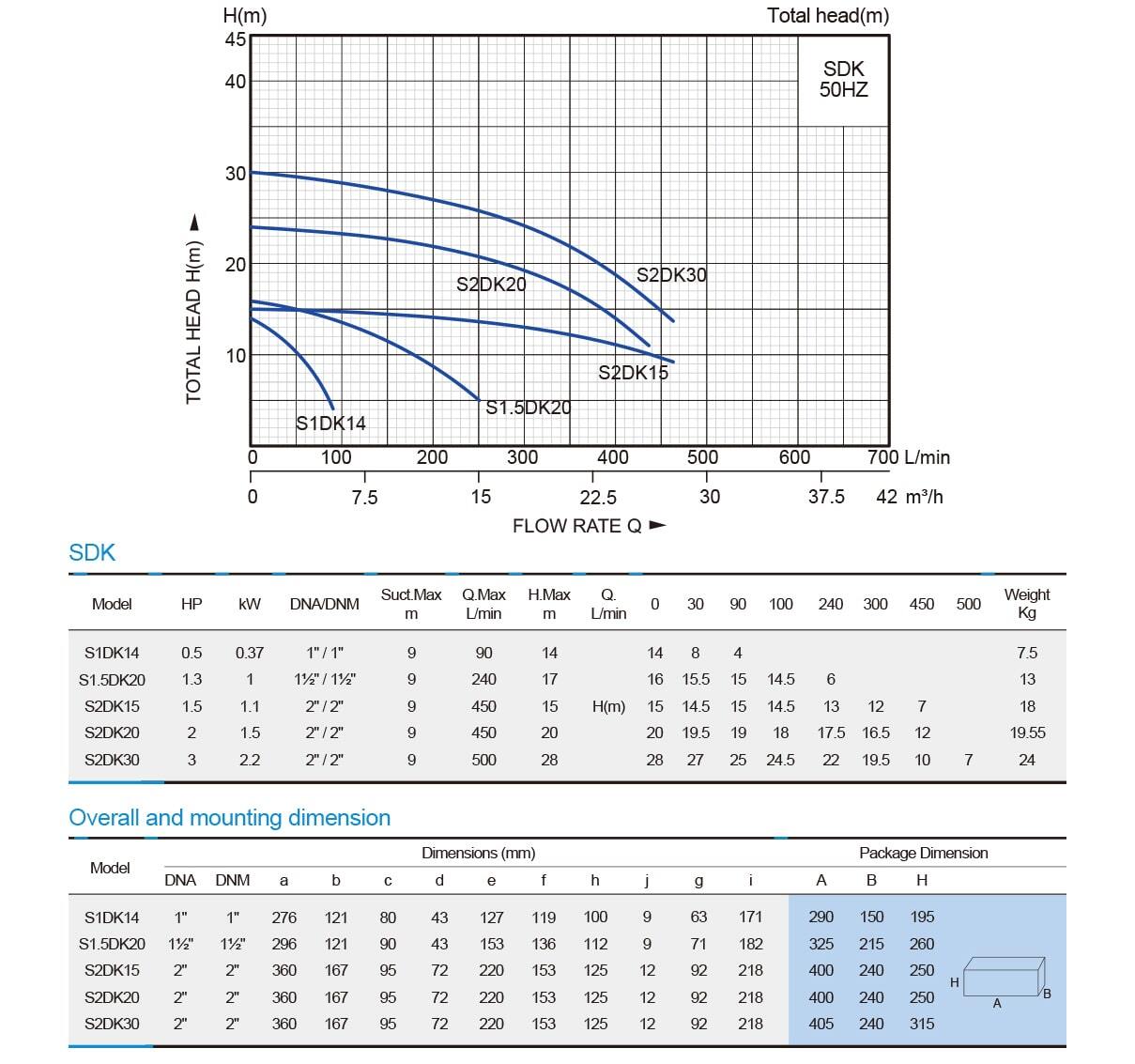

Performance Curve & Technical Data

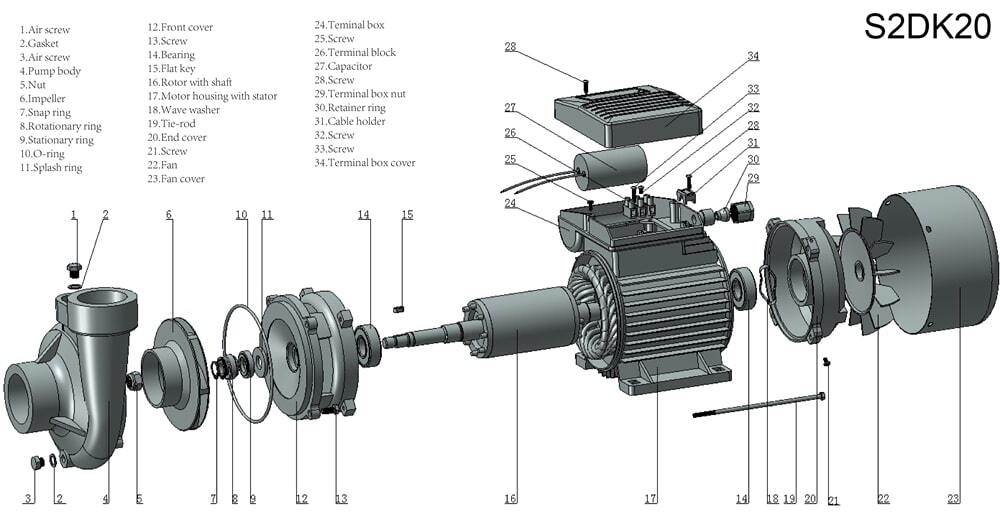

Assembly and Components
Additional Information
Series flow range: |
65-560 L/min |
Series head range: |
12-28 m |
Series power range: |
370-2200 W |
Connection size range: |
1" / 1.5" / 2" |
Material construction: |
Cast iron, aluminum, brass |
Temperature limits: |
40°C ambient, 80°C fluid |
Pressure limit: |
10 bar |
