High Flow Centrifugal Pump - SHF Series

Overview

Brand: Stream PumpsSeries Flow Range: 500-1000 L/minSeries Head Range: 18-14.5 mSeries Power Range: 1.1-2.8 kW The SHF series pumps are purpose-built for industrial and agricultural applications, delivering high flow rates efficiently at low to medium head levels. Their volute impeller design enables them to handle even moderately contaminated water. These pumps excel in providing consistent, high delivery rates, making them ideal for tasks such as rain and gravity irrigation, extracting water from lakes, rivers, wells, and a diverse range of other applications. Note: Pumps should be installed in a covered area, protected against the weather.

Features

• Economical, reliable, and safe
• Water source flexibility: effective for pumping water from lakes, rivers, wells, and various other sources
• Well-suited for rain and gravity irrigation systems

Applications

• Industrial use
• Agricultural uses

Working Conditions

• Maximum ambient temperature: +40 ℃
• Maximum fluid temperature: 80 ℃
• Maximum pressure: 10 bar

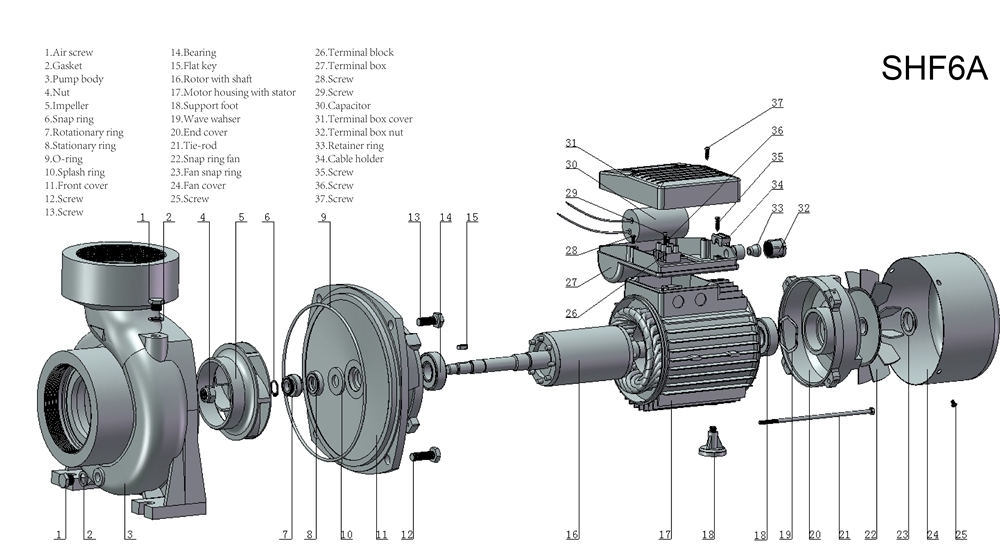

Construction Materials

• Pump Body: Cast iron
• Motor Housing: Aluminum
• Motor: Closed, externally ventilated
• Impeller: Brass
• Insulation: B/F
• Duty: Continuous rated
• Mechanical Seal: Steatite ceramic/metalized carbon

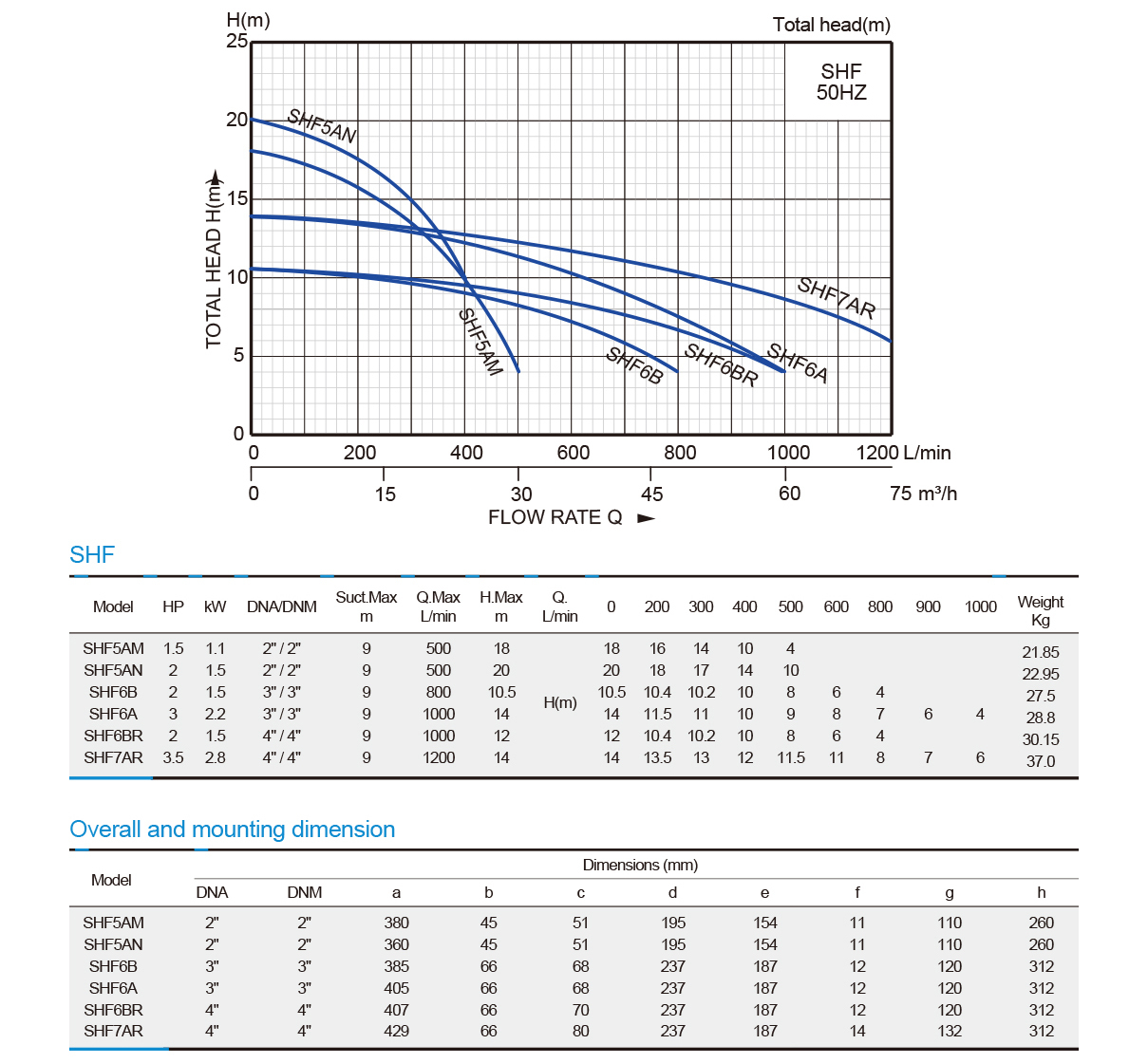

Performance Curve & Technical Data
