High Head Multistage Submersible Pump - SPP2-30/3-0.55F
(No reviews yet)
Write a Review
- SKU:
- SPP2-30/3-0.55F Series
- Weight:
- 0.00 Grams
Description
Description
The SPP2-30/3-0.55F pump by Stream Pumps is a high-performance, multi-stage impeller submersible pump designed for high head applications. Equipped with an automatic float switch, this pump is ideal for clear water environments, offering efficient performance and low noise operation.
Features
- Efficient Performance: Optimized design for high efficiency and low noise.
- High Head Capability: Multi-stage impellers ensure a high head for various applications.
- Automatic Operation: Equipped with a float switch for convenient automatic control.
Applications
- Domestic water supply systems.
- Rainwater collection and distribution for garden use.
- Irrigation and small-scale agricultural systems.
Working Conditions
- Maximum Immersion Depth: 5 meters.
- Liquid Temperature Range: 0–40°C.
- Liquid pH Range: 6.5–8.5.
- Continuous Service: S1 (Continuous operation).

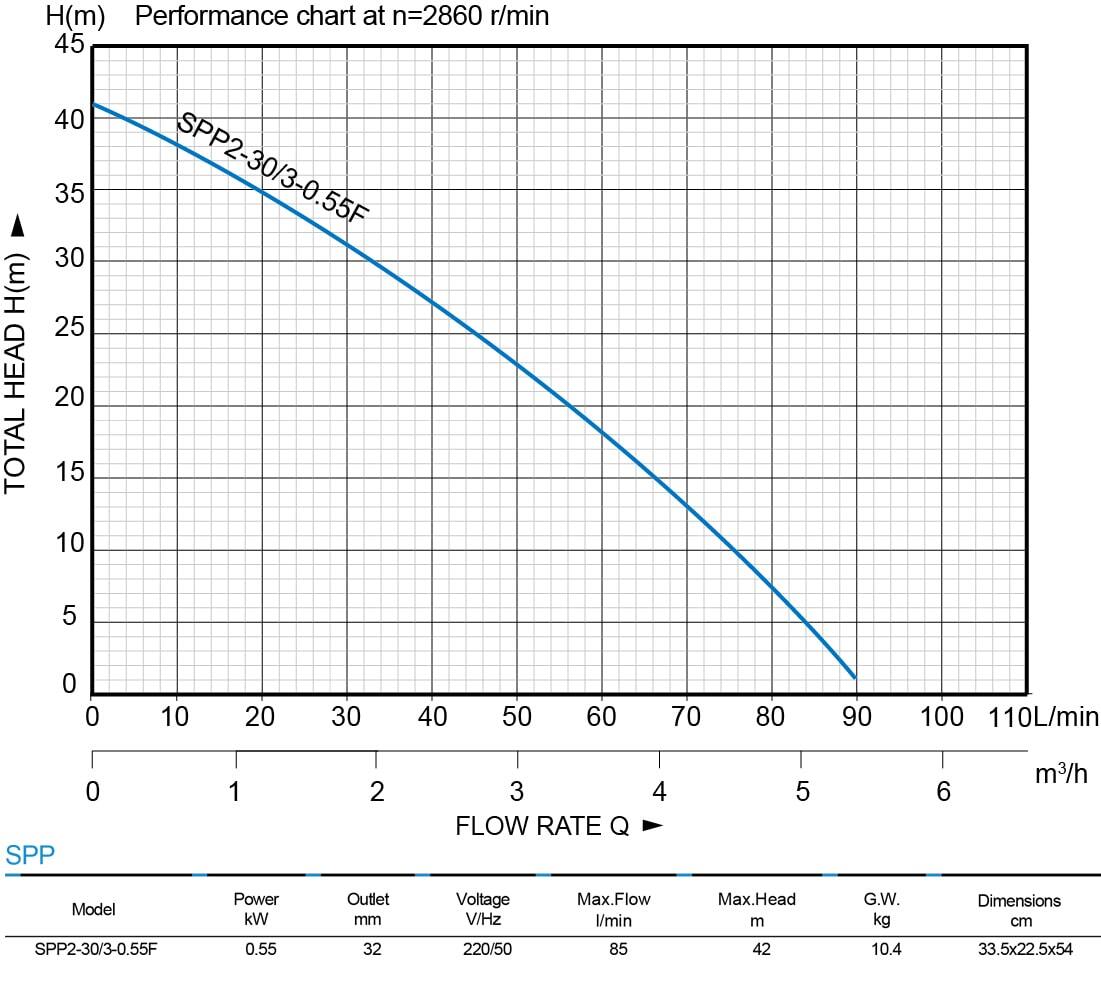

Performance Curve & Technical Data
Additional Information
Model: |
SPP2-30/3-0.55F |
Power: |
0.55 kW |
Outlet Diameter: |
32 mm |
Voltage/Frequency: |
220V / 50Hz |
Maximum Flow Rate: |
85 liters/min (5.1 m³/h) |
Maximum Head: |
42 meters |
Gross Weight: |
10.4 kg |
Dimensions: |
33.5 × 22.5 × 54 cm |
