High Head Submersible Pump - SHS Series
- SKU:
- SHS Series
- Weight:
- 0.00 Grams
Description
Description
The high-pressure submersible pumps from the SHS Series are engineered with multiple impellers to meet high delivery head demands. These pumps are perfect for pumping clean water from shallow wells and underground tanks, irrigating gardens, and dewatering flooded areas, pools, fountains, and other general applications.
Model Selection
- SHS: Stainless steel construction for anti-corrosion.
- SHP: Plastic construction for economy pricing.
Features
- Multi-impellers providing high delivery heads up to 40m.
- Automatic float switch to control pump operations automatically.
- Built-in pressure sensor for space-saving and precise pressure control.
- Thermal protector to safeguard against motor dry-run.
Working Conditions
- Liquid Temperature: Up to 35°C.
- Protection Class: IPX8.
- Insulation Class: B.
- Power Supply: 230V/50Hz, Single phase.
- Max. Grain Size: 5mm.
- Max. Submersion Depth: 12m.

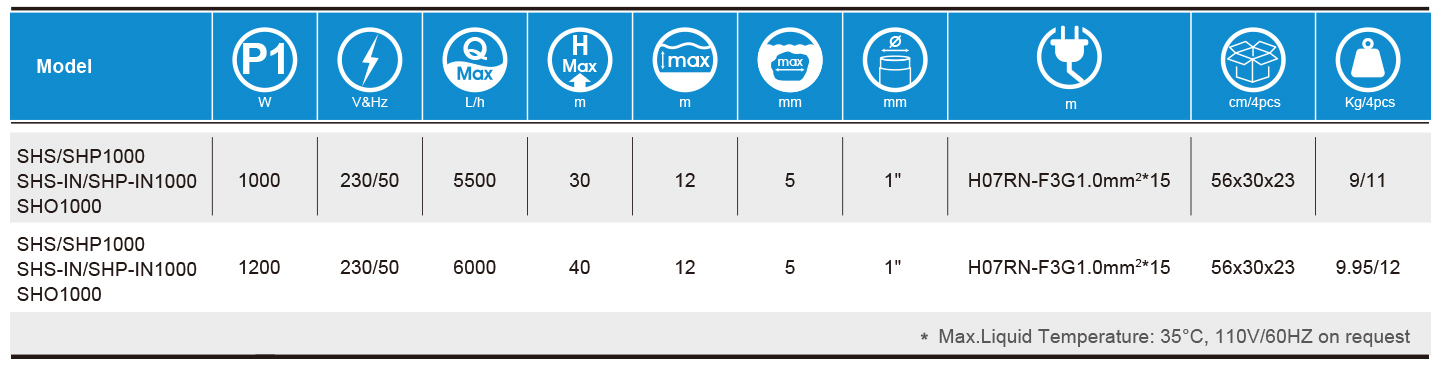

Performance Curve & Technical Data
Additional Information
Construction Materials: |
Stainless steel (SHS) or plastic (SHP). |
Power Input (P1): |
1000W / 1200W. |
Voltage & Frequency: |
230V/50Hz. |
Max. Flow Rate: |
5500 L/h / 6000 L/h. |
Max. Head: |
30m / 40m. |
Outlet Size: |
1 inch. |
Max. Submersion Depth: |
12m. |
Weight: |
9–12 kg (varies by model). |
Cable Type: |
H07RN-F3G1.0mm²*15. |
Dimensions: |
56x30x23 cm/pcs. |
