Horizontal Multistage Centrifugal Pump - MH

Description

The MH series horizontal multistage pump is an innovative solution tailored for diverse clean water pumping requirements. Its compact, noise-reducing design makes it an excellent choice for various applications, including water transfer, sprinkler systems, drip irrigation, and domestic water boosting. With superior performance and robust durability, the MH series ensures reliable operation, whether for household or industrial needs.

Features

• Self-priming up to 6 m
• Durable Construction: Stainless steel housing with a cataphoresis coating ensures anti-rust properties.
• Silent Operation: Designed for minimal noise and optimal efficiency.
• High Performance: Capable of flow rates up to 365 L/min and head pressures up to 14 bar.
• Versatility: Multi-material configurations suit various applications.
• Protection: Equipped with dry-run protection for single-phase models.

Applications

• Water Transfer: Reliable for transferring clean water across various systems.
• Irrigation Systems: Ideal for sprinklers or drip irrigation setups.
• Domestic Boosting: Enhances water pressure for household and small commercial systems.

Working Conditions

• Maximum ambient temperature: +40°C
• Maximum fluid temperature: 80°C
• Maximum pressure: 10 bar

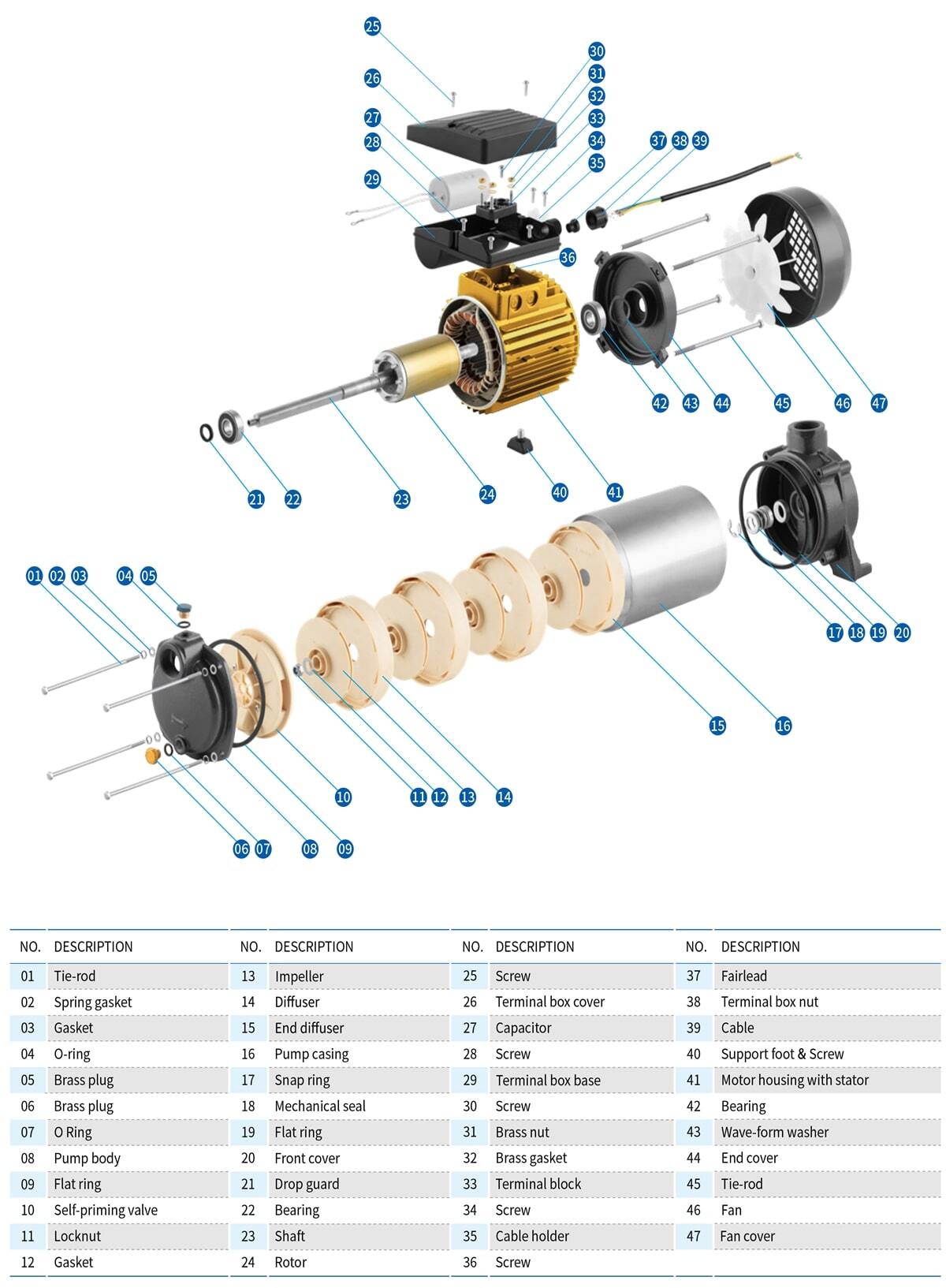

Construction Materials

• Pump Body: Stainless steel
• Motor Housing: Aluminum
• Diffuser: PPO
• Impeller: PPO/stainless steel
• Mechanical Seal: Steatite ceramic/metalized carbon
• Insulation: B/F
• Duty: Continuous rated

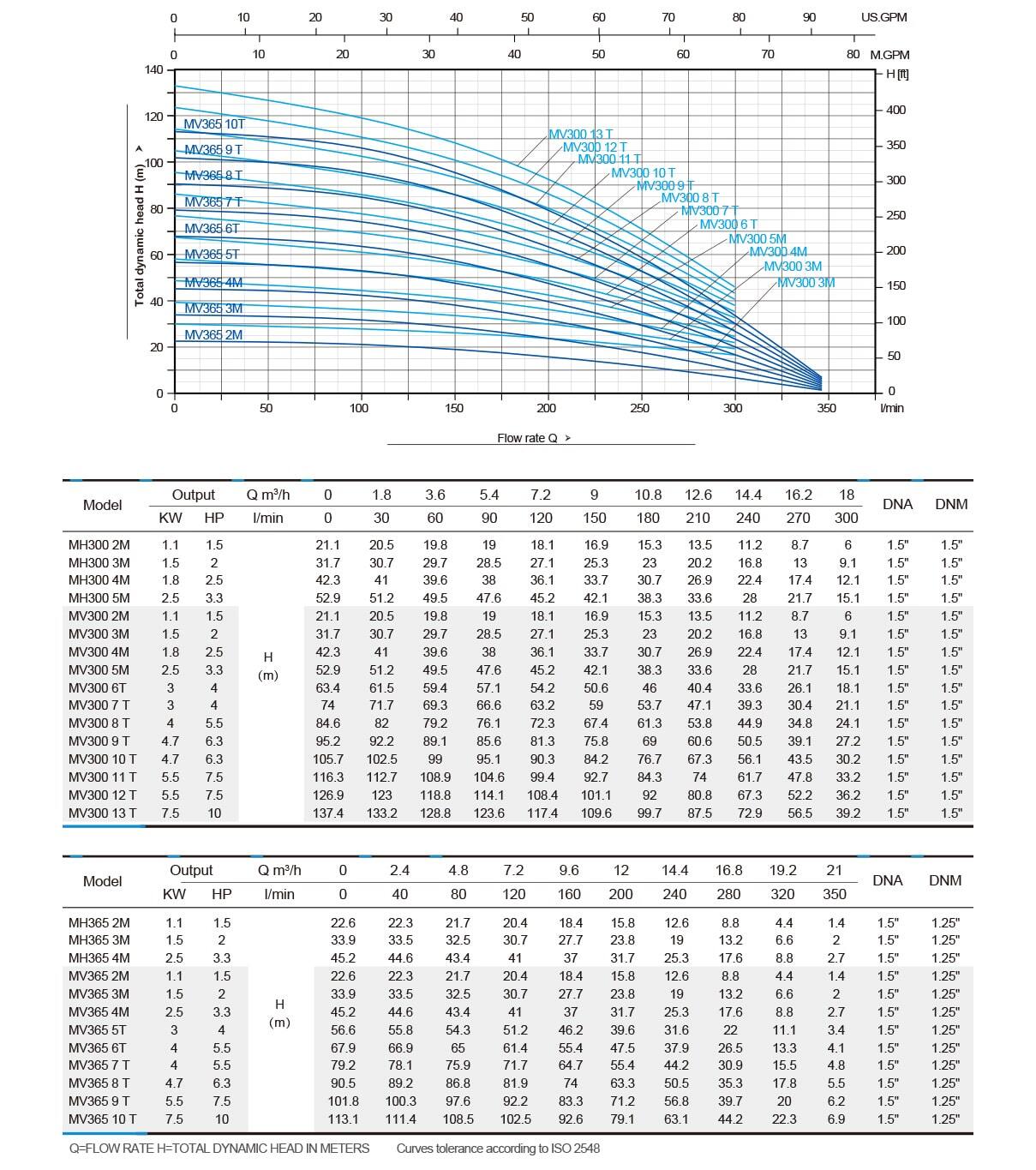

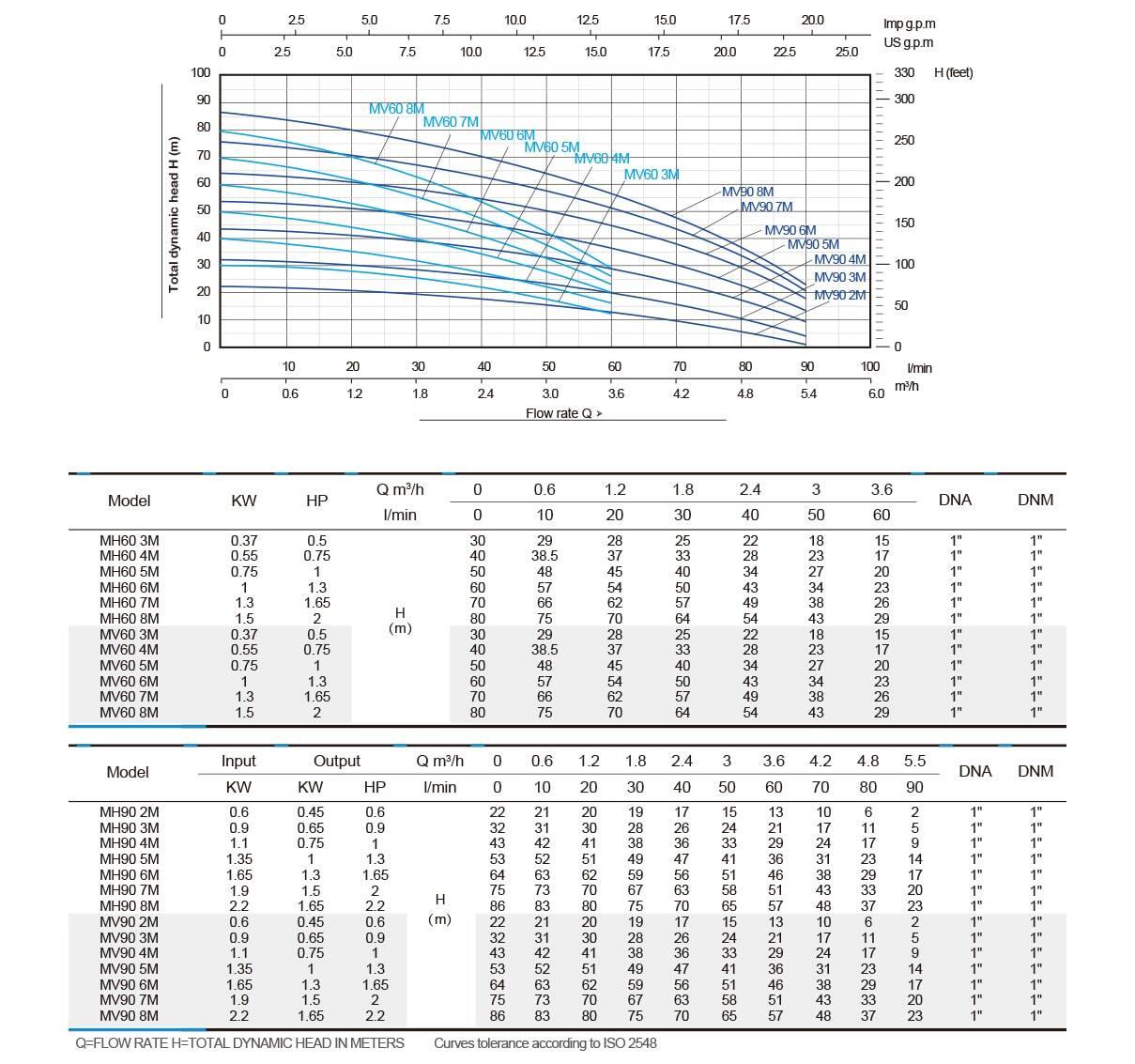

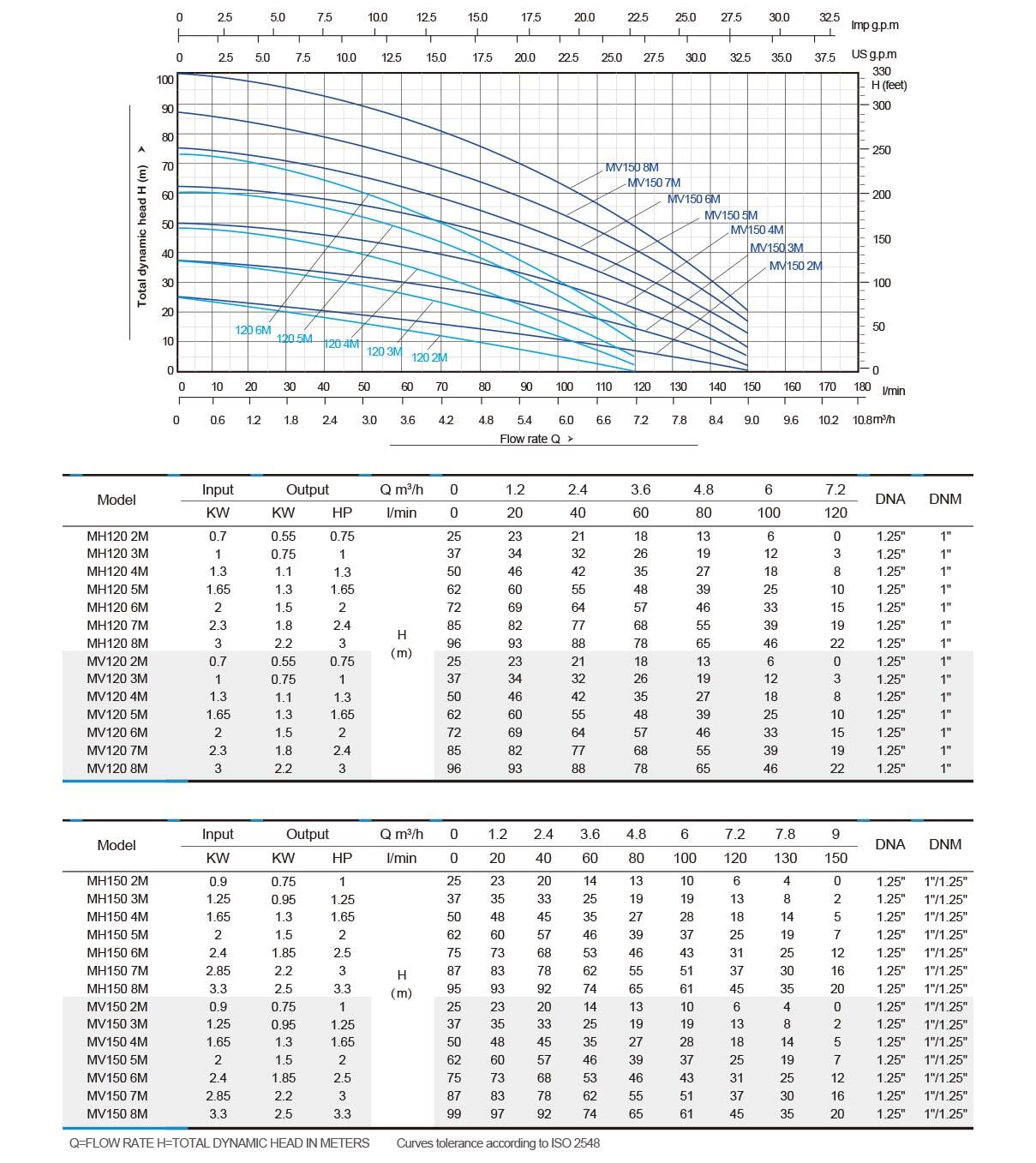

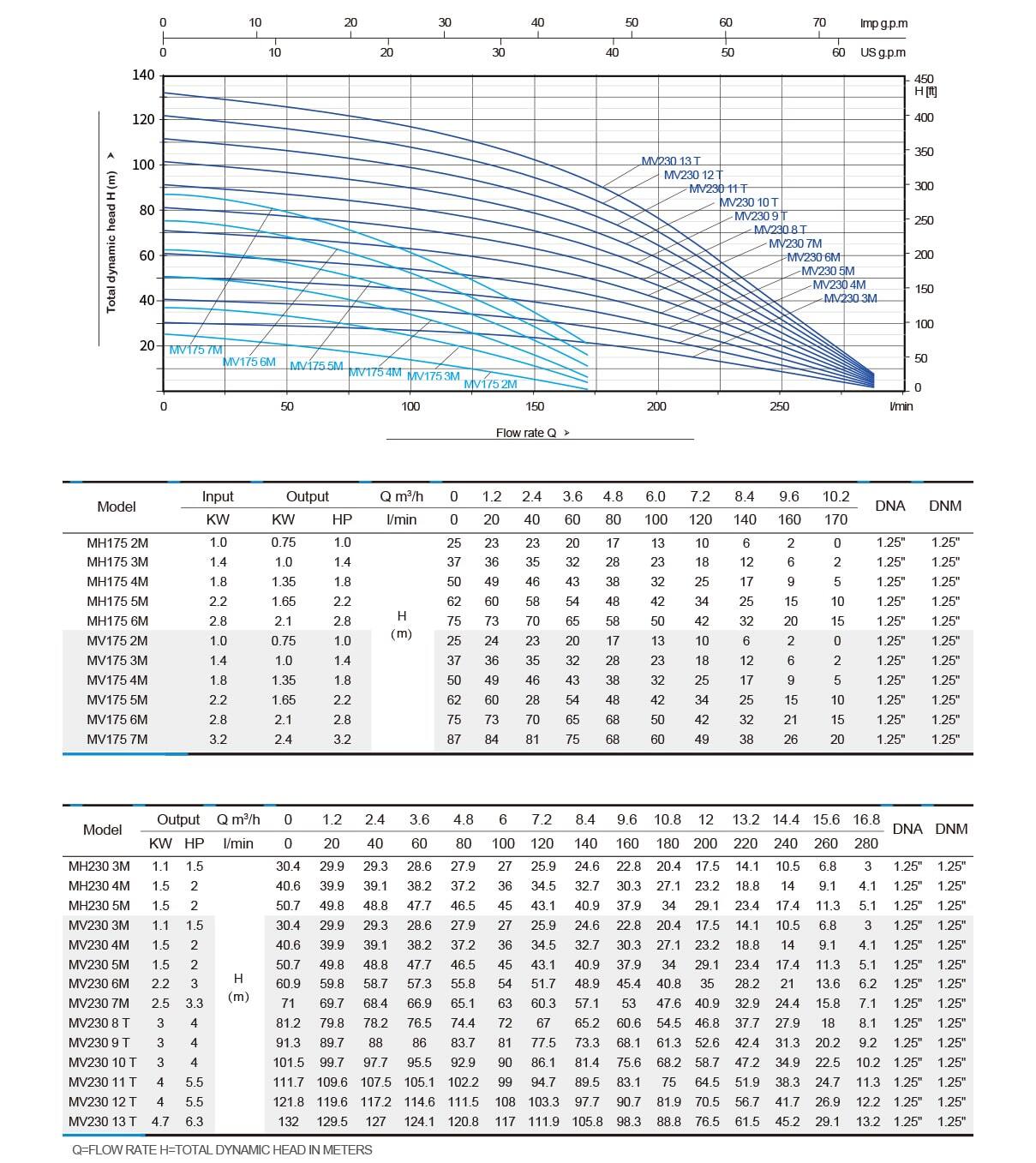

Performance Curve & Technical Data
