Inductive Sensor M30, NPN NO - PR30-15DN

(No reviews yet) Write a Review
SKU:
PR30-15DN
UPC:
6294017302606
MPN:
PR30-15DN
Weight:
207.00 Grams
Minimum Purchase:
1 unit

Description

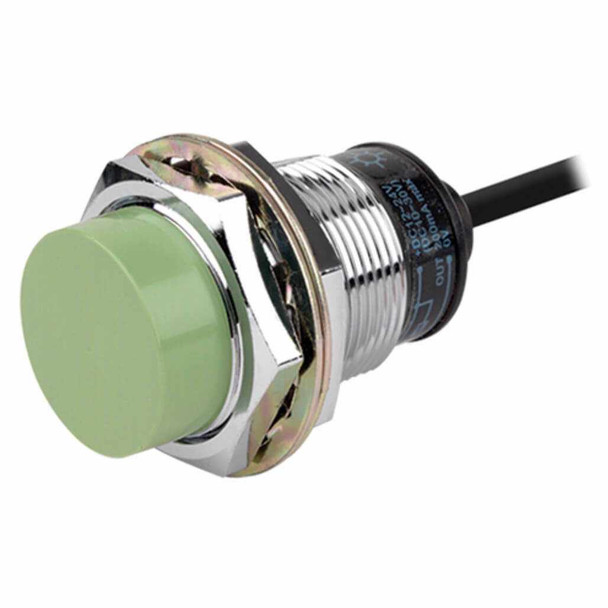

Autonics inductive proximity sensor M30, NPN NO - PR30-15DN

Non-Shield (non-flush), Standard cable, 15 mm Sensing distance



The Autonics proximity sensor PR30-15DN features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This sensor comes in a round cylindrical shape, sensing distance of 15mm, sensing side diameter and housing size of m30 and Non-Shield (non-flush) installation. The standard cylindrical inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.

As a quick report, this inductive proximity sensor provides:

  • 30 mm sensing side diameter
  • NPN Normally Open control output
  • 15 mm sensing distance
  • Non-Shield (non-flush) installation
  • Improved noise resistance
  • Long life cycle and simple operations
  • Reverse polarity, surge, and over-current protection
  • IP67 ingress protection structure according to IEC standards
  • Red LED status indicator
  • Alternative to micro switches and limit switches.

Body

This proximity sensor's case and nut parts are made of nickel-plated brass, its sensing side is made of PBT, and its washer is nickel plated iron made.

The PR30-15DN features IP67 ingress protection.

The red LED on its body acts as the process indicator.

Connection

The PR30-15DN features standard cable type connection. This black cable covers the sensor's 3 wires. It is 5 mm in diameter and 2 meters in length, and is made of PVC.

Sensing specifications

This inductive sensor's sensing side diameter is 30 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 45x45x1 mm piece of iron, is 15 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 10.5 mm for this proximity sensor.

Control output

The PR30-15DN features NPN Normally Open control output. NPN type stands for Negative-Positive-Negative transistors.

Temperature

There are limitations in temperature and humidity in which PR30-15DN NPN type proximity sensor is used:

  • Storage temperature: -30 … 80°C
  • Storage humidity: 35 to 95%RH
  • Ambient temperature: -25 … 70°C
  • Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

  • Part detection on industrial conveyor systems
  • Automated production lines



Click on the following link to view other Autonics proximity sensor series.

Series Information

PR Series

Cylindrical Inductive Proximity Sensors (Cable Type)

The Autonics PR series inductive proximity sensors feature solid sensing performance and excellent noise immunity with a specialized sensor IC developed by Autonics. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The PR series is available in DC 2-wire, DC 3-wire, AC 2-wire types.

PR Series Main features

  • Excellent noise immunity with specialized sensor IC
  • Simple operation, reliable performance, and high durability
  • Built-in surge protection circuit
  • Built-in overcurrent protection circuit (DC 2-wire, DC 3-wire types)
  • Built-in reverse polarity protection circuit (DC 3-wire types)
  • Operation indicator (red LED)
  • Durable and reliable alternative to micro switches and limit switches
  • IP67 protection structure (IEC standard)

About proximity sensor

"Autonics" is a leading provider of automation solutions from South Korea. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices. This company represents 25 proximity sensor series:

  • PS/PSN series: Standard rectangular inductive proximity sensors
  • PRF Series: Full-Metal Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFW Series: Full-Metal Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRFD Series: Full-Metal Long-Distance Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFDW Series: Full-Metal Long Distance Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRFA Series: Full-Metal Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Type)
  • PRFAW Series: Full-Metal Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Connector Type)
  • PRFDA Series: Full-Metal Spatter-Resistant Long Distance Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFDAW Series: Full-Metal Spatter-Resistant Long Distance Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRD Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Cable Type)
  • PRDW Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Cable Connector Type)
  • PRDCM Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Connector Type)
  • PRCM Series: Cylindrical Inductive Proximity Sensors (Connector Type)
  • PR Series: Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRW Series: Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRDA Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Cable Type)
  • PRDAW Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Cable Connector Type)
  • PRDACM Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Connector Type)
  • PRA Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Type)
  • PRAW Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Connector Type)
  • PRACM Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Connector Type)
  • PFI Series: Flat Type Rectangular Inductive Proximity Sensors
  • AS Series: Rectangular Inductive Proximity Sensors with Long Sensing Distance
  • CR Series: Cylindrical Capacitive Proximity Sensors
  • PET18-5 Series: Inductive Transmission Couplers

Autonics products are mainly used in:

  • Automotive industry
  • Packaging industry
  • Elevator Industry
  • Plastics/Rubber industry
  • Semiconductor/Display
  • Food/Beverage industry
  • Machine Tools
  • Logistics
  • Medical/Pharmaceutical industry

Documents

You may be searching for the NPN type proximity sensor's catalog. If so, please click to view the PR30-15DN datasheet.
View AllClose

Warranty Information

One Year Warranty
View AllClose

Additional Information

Sensing Distance:
15mm ±10%
Hysteresis:
Maximum 10% of sensing distance
Standard sensing target:
45x45x1mm (Iron)
Setting distance:
0~10.5mm
Power supply (operational voltage):
12-24 VDC (10-30 VDC)
Current consumption/leakage:
Max 10mA
Response frequency:
200 Hz
Residual Voltage:
Max 1.5 V
Affection by temp:
±10% max for sensing distance at +20◦C within temp range -20~70◦C
Control output:
200mA
Dielectric Strength:
1500 VAC 50/60 Hz/min
Insulation resistance:
Min 500MΩ (at 500 VDC mega)
Weight:
Approx 181g
Shock:
50G in x,y,z directions for 3 hours
Indicator:
Operation indicator (Red Light)
Ambient temperature:
-20~70â—¦C
Storage temperature:
-30~80â—¦C
Ambient humidity:
35~95 HR
Protection:
Surge, reverse power polarity, over-current protection
Protection circuit:
IP67 (IEC standard)
Cable specs:
Ø5x3P, 2m
View AllClose
