Description
Overview
The JDT Stainless Steel Electric Jet Pump, manufactured by Dongyin Doyin, is a high-performance, household jet pump designed for clean water applications. As one of China’s leading water pump suppliers, Dongyin Doyin ensures top-tier quality and durability in every product. The JDT series pumps are injection-type clean water pumps combining a centrifugal pump and nozzle, housed in a robust stainless steel body. This design makes them highly efficient and reliable for a variety of domestic and utility purposes.
Key Features
- High Performance: Suitable for clean water and non-aggressive liquids.
- Versatile Applications: Ideal for water supply from wells and pools, automatic water distribution via surge tanks, gardening, and pressure boosting.
- Sturdy Build: Stainless steel pump body and components for durability.
- Rewindable Motor: Ensures reliability and extended motor life.
- Energy Options: Available in single-phase (220-240V/50Hz) and three-phase (380-415V/50Hz) configurations.
Operating Conditions
- Maximum Fluid Temperature: Up to +40°C
- Maximum Sand Content: 0.25%
- Maximum Suction Lift: 9 meters
- Curve Tolerance: ISO 9906 standards compliance
Motor and Impeller Material
- Motor: Rewindable with different voltage options
- Impeller: Available in high-quality plastic or stainless steel

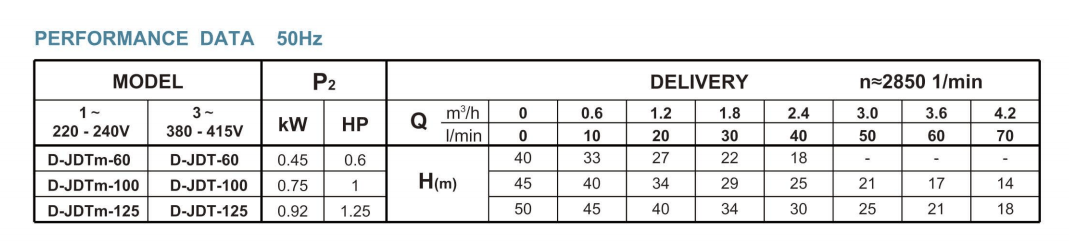

Performance Data (50 Hz)
Dimensions and Weights
- D-JDT(m)-60:
- DN1/DN2: 1"/1"
- Dimensions (W x H x L): 156 x 170 x 290 mm
- Weight: 8 kg (1~), 7.5 kg (3~)
- D-JDT(m)-100:
- DN1/DN2: 1"/1"
- Dimensions (W x H x L): 196 x 210 x 365 mm
- Weight: 10 kg (1~), 9.5 kg (3~)
- D-JDT(m)-125:
- DN1/DN2: 1"/1"
- Dimensions (W x H x L): 196 x 210 x 365 mm
- Weight: 10.5 kg (1~), 10 kg (3~)
Additional Information
Brand: |
Dongyin Doyin |
Series: |
JDT |
Pump Type: |
Electric Jet Pump |
Material: |
Stainless Steel |
Voltage: |
220-240V/50Hz (single-phase), 380-415V/50Hz (three-phase) |
Flow Rate: |
Up to 4.2 m³/h |
Max Head: |
50m |
Applications: |
Domestic water supply, gardening, pressure boosting |
Max Fluid Temp: |
+40°C |
