Premium Peripheral Pump - SDB Series
- SKU:
- SDB Series
- Weight:
- 0.00 Grams
Description
Description
The SDB series peripheral pumps by Stream Pumps are designed to deliver high pressure with minimal power consumption. These pumps are known for their stable operating characteristics and are ideal for transferring clean, non-corrosive water or liquids free of sand or solid particles. Their reliability, user-friendliness, and cost-effectiveness make them the perfect choice for domestic applications, particularly for small pressure systems, garden irrigation, and allotment use.
Features
- Stable Performance: Delivers good pressure and smooth operation.
- Exclusive Design: Stream's proprietary aesthetic design.
- Energy Efficient: Saves energy without compromising performance.
Application
- Pipeline Pressurization: Ideal for boosting water pressure in pipelines.
- Garden Irrigation: Suitable for garden and lawn watering needs.
- Domestic Water Supply: Perfect for home water system applications.
Working Conditions
- Maximum ambient temperature: +40°C
- Maximum fluid temperature: 80°C
- Maximum operating pressure: 10 bar
Construction Materials
- Pump Body: Cast iron
- Motor Housing: Aluminum
- Motor: Closed, externally ventilated
- Impeller: Brass
- Insulation Class: B/F
- Duty: Continuous rated
- Mechanical Seal: Steatite ceramic/metalized carbon

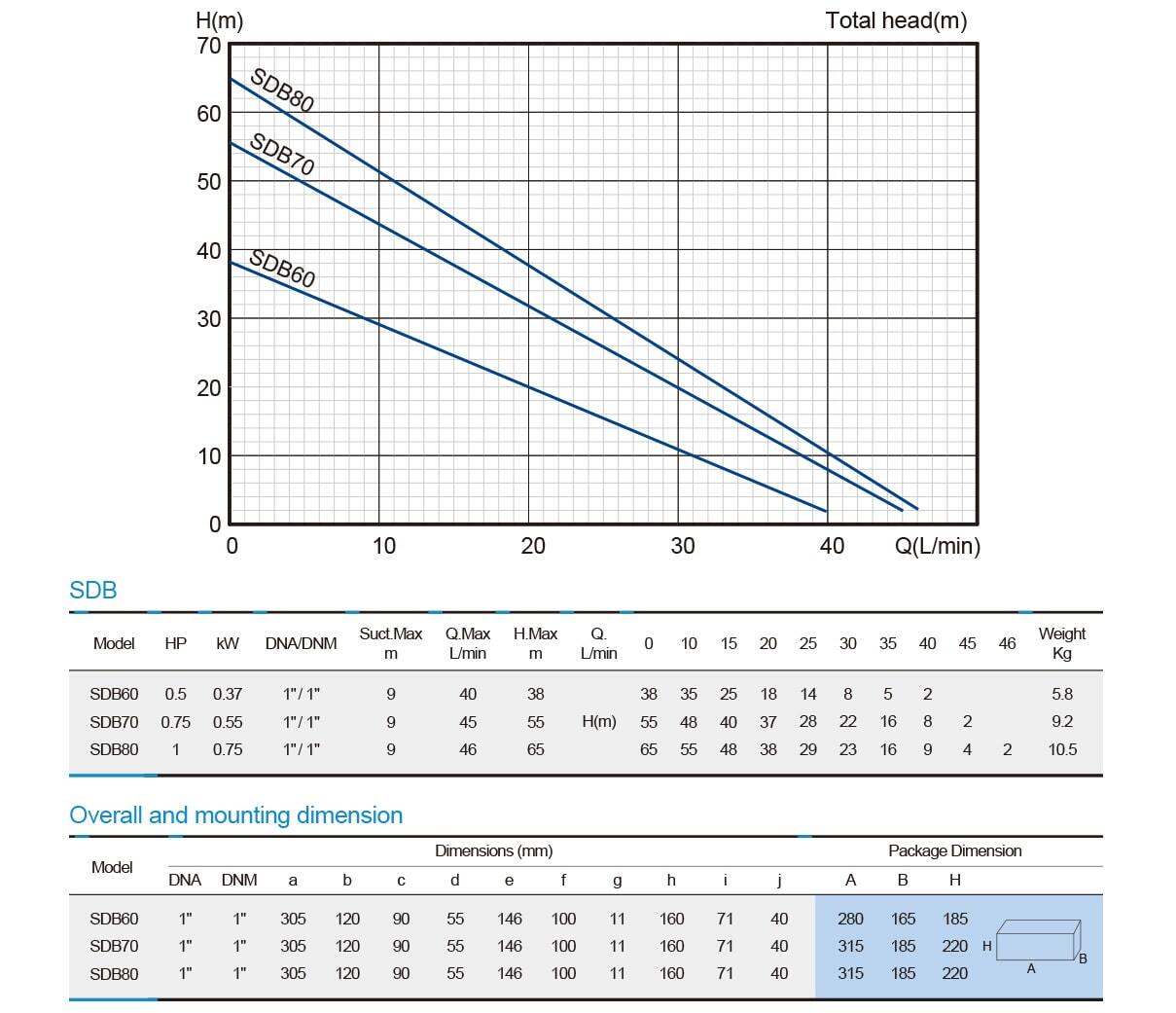

Performance Curve & Technical Data
Exploded View & Parts
Additional Information
Product Name: |
Premium Peripheral Pump - SDB Series |
Brand: |
Stream Pumps |
Max Pressure: |
10 bar |
Max Ambient Temperature: |
40°C |
Max Fluid Temperature: |
80°C |
Material: |
Cast iron (pump body), aluminum (motor housing), brass (impeller) |
Available Models: |
SDB60, SDB70, SDB80 |
Power Range: |
0.37 kW – 0.75 kW |
