Description
Description
The End Suction Pump - SCA series by Stream Pumps is a versatile, single-stage centrifugal pump designed for high-performance water transfer across multiple applications. Its robust construction and energy-efficient features make it ideal for a variety of industrial and municipal uses.
Applications
- Designed to match different motor types for multiple applications.
- Water Supply and Transfer: Suitable for municipal and industrial water distribution.
- Water Treatment Plants: Efficient in processing and water management.
- Air-Conditioning Systems: Facilitates smooth water circulation.
- Cooling and Heating Systems: Ideal for industrial and commercial cooling/heating systems.
- Irrigation and Sprinkler Systems: Perfect for agricultural and landscaping needs.
Features
- Single-Stage Bare Shaft: Optimized for simplicity and durability.
- Directly Fixed on Base-Plate: Ensures stability and seamless integration.
- Energy-Saving Design: Minimizes power consumption without compromising performance.
- Back-Pull-Out Design: Facilitates easy maintenance and part replacement.
Operation Conditions
- Operating Speeds:
- 1450 rpm or 2900 rpm (50 Hz)
- 1750 rpm or 3500 rpm (60 Hz)
- Maximum Viscosity: 1 Cp (Normal temperature: 24℃)
- Working Temperature Range: -15℃ ~ 105℃
- Maximum Allowable Suction Pressure (MASP): PN0.6 MPa
- Maximum Allowable Working Pressure (MAWP): PN1.0 MPa or PN1.6 MPa

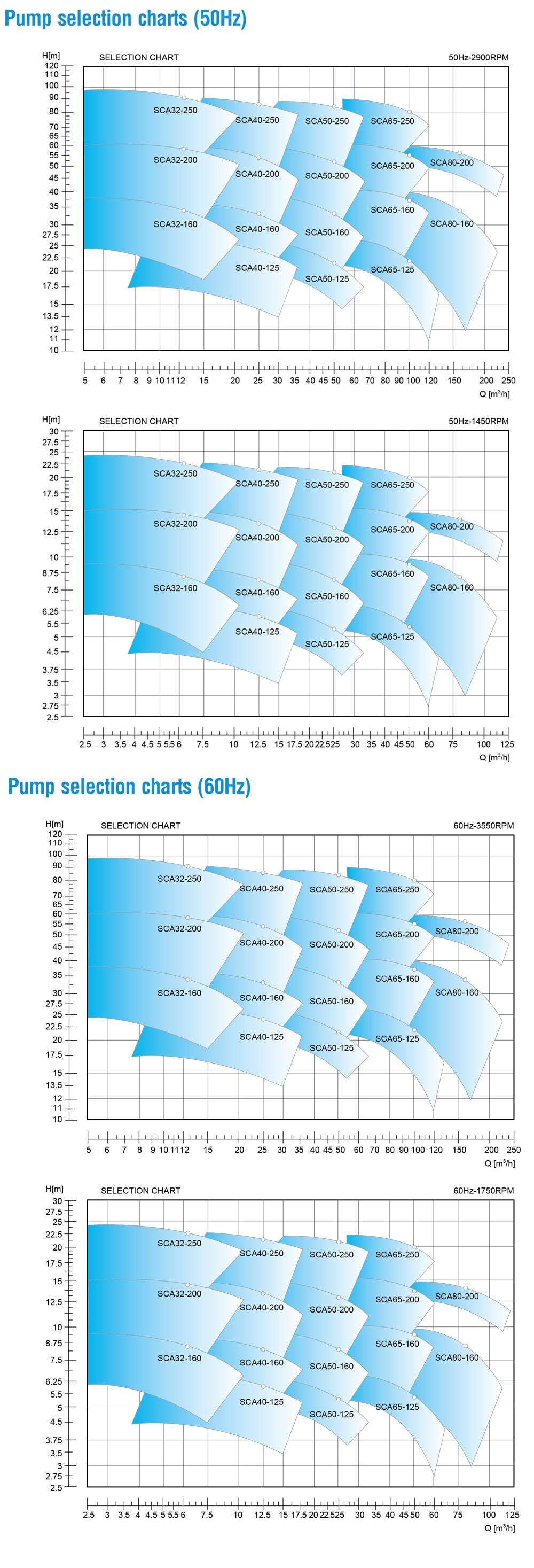

Pump Selection Charts
Additional Information
Model: |
SCA Series |
Design: |
Single-stage, single-suction centrifugal pump |
Max Viscosity: |
1 Cp |
Temperature Range: |
-15℃ to 105℃ |
Pressure Ratings: |
MASP: PN0.6 MPa MAWP: PN1.0 MPa / PN1.6 MPa |
Applications: |
Municipal water supply, irrigation, air-conditioning systems, etc. |
