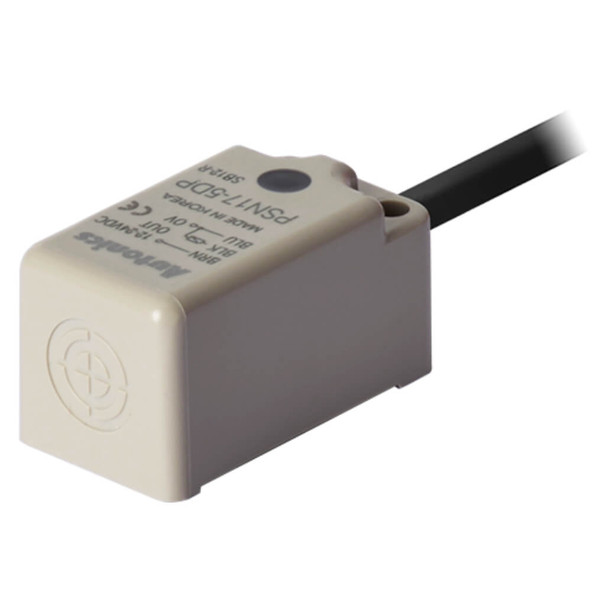

Rectangular Proximity Sensor 17 mm, PNP NO - PSN17-5DP

(No reviews yet) Write a Review
SKU:
PSN17-5DP
UPC:
6294017304075
MPN:
PSN17-5DP
Weight:
70.00 Grams
Minimum Purchase:
1 unit

Description

Autonics proximity sensor 17mm, PNP NO PSN17-5DP

Rectangular, Cable type connection, 5 mm Sensing distance



The Autonics rectangular proximity sensor PSN17-5DP features outstanding noise protection and stable sensing performance due to its specialized sensor IC developed by Autonics. This proximity sensor comes in a Rectangular shape, sensing distance of 5mm, sensing side diameter and frame size 17mm and rectangular installation. The standard rectangular inductive sensor can be used in diverse applications requiring non-contact detection of metallic objects.

As a quick report, this inductive proximity sensor provides:

  • 17 mm frame size
  • PNP Normally Open control output
  • 5 mm sensing distance
  • Rectangular installation
  • Improved noise resistance
  • Long life cycle and high reliability
  • Reverse polarity, surge, and over-current protection
  • IP67 ingress protection structure according to IEC standards
  • Red LED status indicator
  • Alternative to micro switches and limit switches
  • Shorten the time of maintenance with the body

Body

This Autonics PS Series proximity sensor's case and nut parts are made of Heat-resistant ABS. The PSN17-5DP features IP67 ingress protection.

The red LED on its body acts as the process indicator.

Connection

The Autonics rectangular proximity sensor PSN17-5DP features standard cable type connection. This cable covers the sensor's 3 wires. It is 4 mm in diameter and 2 meters in length.

Sensing specifications

This inductive sensor's frame size is 17mm. The maximum distance that this sensor can detect its standard sensing target, which is an 18×18×1 mm piece of iron, is 5 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 3.5 mm for this proximity sensor.

Control output

The PSN17-5DP features PNP Normally Open control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which PSN17-5DP rectangular proximity sensor is used:

  • Storage temperature: -30 … 80°C
  • Storage humidity: 35 to 95%RH
  • Ambient temperature: -25 … 70°C
  • Ambient humidity: 35 to 95%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

  • Elevator industry
  • Rubber Extrusion / Plastic Injection Molding Process
  • Automation system example of an elevator, escalator, and parking system

Series Information

PS Series

Rectangular Inductive Proximity Sensors

The PS series rectangular inductive proximity sensors feature excellent noise immunity and protection circuits. Various sizes and sensing sides models are available for application in diverse environments. The PS series is available in DC 2-wire, DC 3-wire, AC 2-wire types.

PS Series Main features

  • Excellent noise immunity with specialized sensor IC
  • Long life cycle and simple operations
  • Built-in surge protection circuit
  • Built-in overcurrent protection circuit (DC 2-wire, DC 3-wire types – except for PS12 series)
  • Built-in reverse polarity protection circuit (DC 3-wire types)
  • Operation indicator (red LED)
  • Durable and reliable alternative to micro switches and limit switches
  • IP67 protection structure (IEC standard)

About Autonics proximity sensor

"Autonics" is a leading provider of automation solutions from South Korea. Autonics products are trusted and adopted by engineers in various industrial applications and their technology is widely applied in day-to-day automation devices. This company represents 25 proximity sensor series:

  • PS/PSN series: Standard rectangular inductive proximity sensors
  • PRF Series: Full-Metal Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFW Series: Full-Metal Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRFD Series: Full-Metal Long-Distance Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFDW Series: Full-Metal Long Distance Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRFA Series: Full-Metal Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Type)
  • PRFAW Series: Full-Metal Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Connector Type)
  • PRFDA Series: Full-Metal Spatter-Resistant Long Distance Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRFDAW Series: Full-Metal Spatter-Resistant Long Distance Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRD Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Cable Type)
  • PRDW Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Cable Connector Type)
  • PRDCM Series: Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Connector Type)
  • PRCM Series: Cylindrical Inductive Proximity Sensors (Connector Type)
  • PR Series: Cylindrical Inductive Proximity Sensors (Cable Type)
  • PRW Series: Cylindrical Inductive Proximity Sensors (Cable Connector Type)
  • PRDA Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Cable Type)
  • PRDAW Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Cable Connector Type)
  • PRDACM Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors with Long Sensing Distance (Connector Type)
  • PRA Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Type)
  • PRAW Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Cable Connector Type)
  • PRACM Series: Cylindrical Spatter-Resistant Inductive Proximity Sensors (Connector Type)
  • PFI Series: Flat Type Rectangular Inductive Proximity Sensors
  • AS Series: Rectangular Inductive Proximity Sensors with Long Sensing Distance
  • CR Series: Cylindrical Capacitive Proximity Sensors
  • PET18-5 Series: Inductive Transmission Couplers

Autonics products are mainly used in:

  • Automotive industry
  • Packaging industry
  • Elevator Industry
  • Plastics/Rubber industry
  • Semiconductor/Display
  • Food/Beverage industry
  • Machine Tools
  • Logistics
  • Medical/Pharmaceutical industry

Documents

In order to view the Autonics rectangular proximity sensor, PSN17-5DP datasheet, please Click Here.
View AllClose

Warranty Information

One Year Warranty
View AllClose

Additional Information

Sensing Distance:
5mm ±10%
Hysteresis:
Maximum 10% of sensing distance
Standard sensing target:
18x18x1mm (Iron)
Setting distance:
0~3.5mm
Power supply (operational voltage):
12~24 VDC (10-30 VDC)
Current consumption/leakage:
Max 10mA
Response frequency:
700 Hz
Residual Voltage:
Max 1.5 V
Affection by temp:
±10% max for sensing distance at +20◦C within temp range -20~70◦C
Control output:
200mA
Dielectric Strength:
1500 VAC 50/60 Hz/min
Insulation resistance:
Min 500MΩ (at 500 VDC mega
Weight:
Approx 71g
Shock:
50G in x,y,z directions for 3 hours
Indicator:
Operation indicator (Red Light
Ambient temperature:
-25~70â—¦C
Storage temperature:
-30~80â—¦C
Ambient humidity:
35~95 HR
Protection:
Surge, reverse power polarity protection circuit
Protection circuit:
IP67 (IEC standard)
Cable specs:
Ø4x2P, 2m
View AllClose
