Self-Suction Peripheral Pump - STPS

Introduction

The STPS series by Stream Pumps features a range of high-performance self-suction peripheral pumps. Engineered for clean water and compatible non-corrosive liquids, these pumps combine compact design, reliability, and ease of use, making them ideal for residential and versatile applications. Models Overview:

• STPS60: 370 W, Q max. 35 L/min, H max. 36 m, Suct max. 9 m.
• STPS70: 550 W, Q max. 45 L/min, H max. 55 m, Suct max. 9 m.
• STPS80: 750 W, Q max. 46 L/min, H max. 65 m, Suct max. 9 m.

Description

The STPS series is designed for use with clean water, free from abrasive particles, and other non-corrosive liquids. Equipped with a built-in flap-check valve, these pumps are compact, robust, and easy to operate. They are ideal for various domestic applications such as water distribution, garden irrigation, and tank water extraction. Key Notes:

• The pump must be installed in a protected environment, shielded from adverse weather.
• Reliable and durable construction ensures long-lasting performance.

Features

• Compact Structure: Saves space and allows for seamless installation.
• Self-Priming Design: Ensures quick water draw even after interruptions.
• Built-in Flap-Check Valve: Prevents backflow and ensures efficient operation.

Application

• Water Distribution: Supplies water efficiently for household use.
• Garden Irrigation: Ideal for watering gardens with clean, pressurized water.
• Tank Water Extraction: Effective for drawing water from storage tanks.
• Versatile Handling: Suitable for various residential and light industrial tasks.

Working Conditions

• Maximum ambient temperature: +40°C
• Maximum fluid temperature: 80°C
• Maximum operating pressure: 10 bar

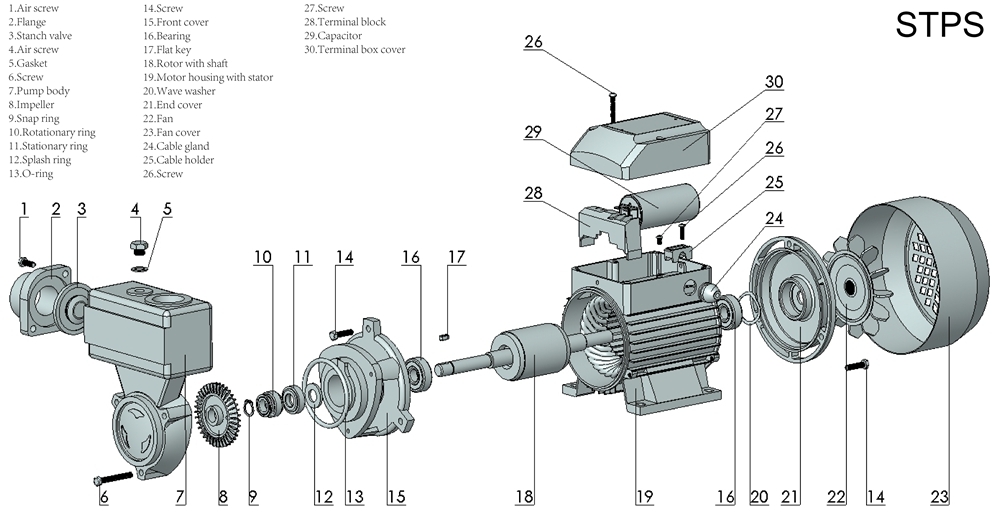

Construction Materials

• Pump Body: Cast iron for durability.
• Motor Housing: Aluminum for lightweight and efficient heat dissipation.
• Impeller: Brass for resistance to corrosion and wear.
• Insulation: B/F standards ensure safe and reliable operation.
• Duty: Continuous rated for extended use.
• Mechanical Seal: Steatite ceramic/metalized carbon for leak prevention and longevity.

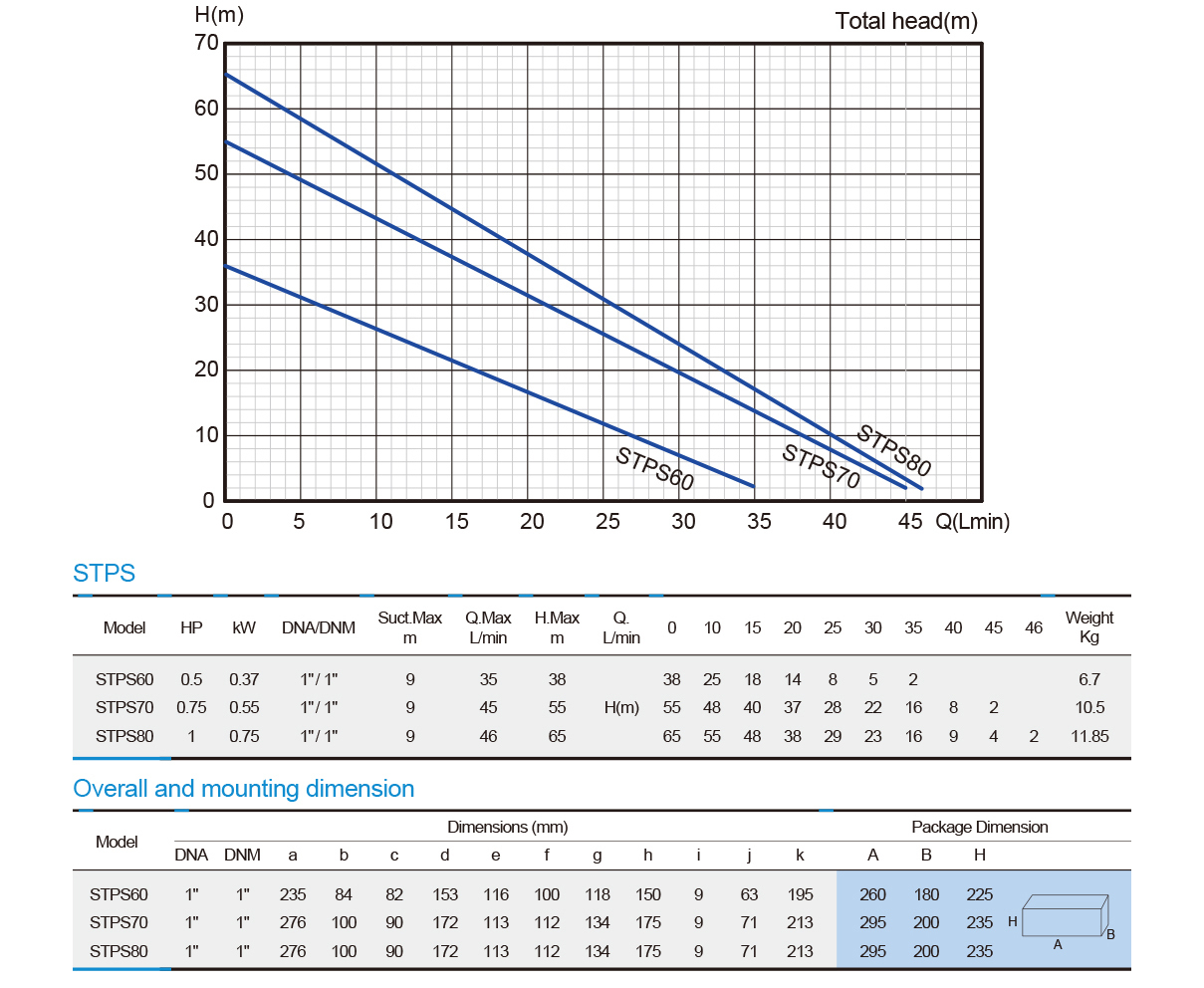

Performance Curve & Technical Data
