Shallow Well Pump - SDP Series

Description

The SDP Series pumps are highly regarded as one of the best solutions for shallow well applications. These innovative pumps consist of two pumps connected in series—an ejector pump and a centrifugal pump. The ejector pump is lowered into the well and connected to the centrifugal pump body by two pipes, making it ideal for pumping clean water and chemically non-aggressive fluids. These pumps are renowned for their reliability, cost-effectiveness, and ease of use, making them ideal for domestic applications and automatic water distribution. They are frequently employed with small and medium-sized surge tanks to form automatic booster systems for water supply. Notably, they are capable of supplying clean water from extremely deep wells, provided they are installed with a foot valve and a filter on the suction opening. For optimal performance, the pump should be installed in a covered area protected from weather elements.

Features

• Supplied with a shallow well jet ejector and deep well components
• Durable cast-iron construction

Applications

• Shallow well
• Household water supply
• Irrigation systems

Working Conditions

• Maximum ambient temperature: +40℃
• Maximum fluid temperature: 80℃
• Maximum pressure: 10 bar

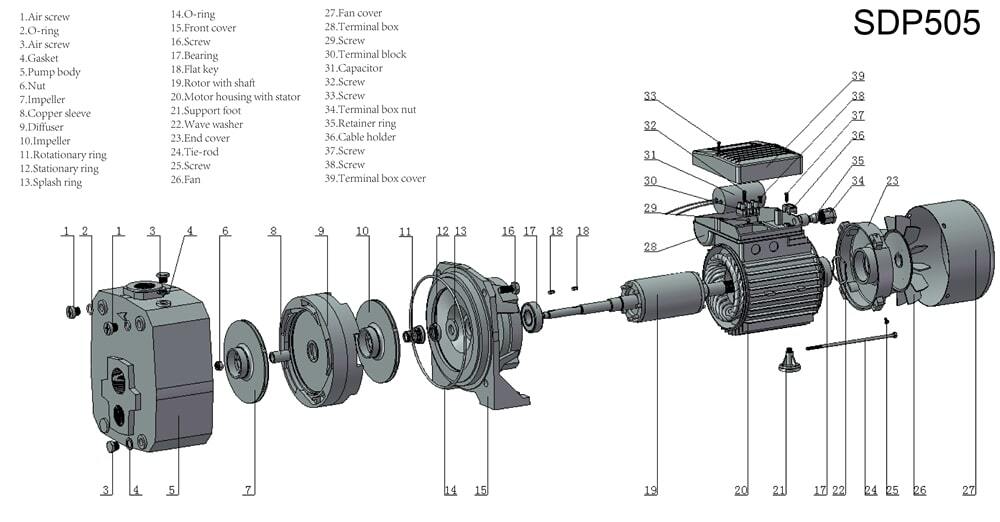

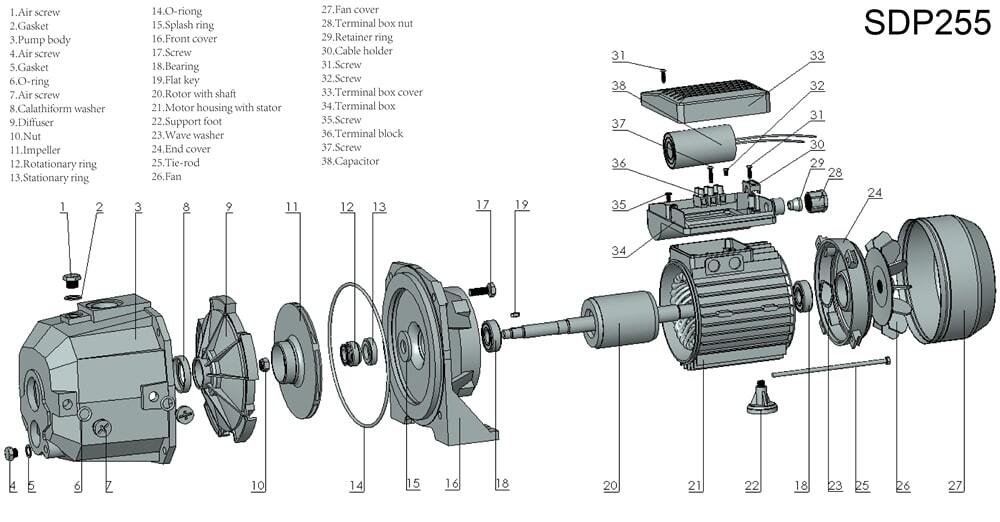

Construction Materials

• Pump body: Cast iron
• Motor housing: Aluminum
• Motor: Closed and externally ventilated
• Impeller: Brass/PPO (optional)
• Insulation: B/F
• Duty: Continuous rated
• Mechanical seal: Steatite ceramic/metalized carbon

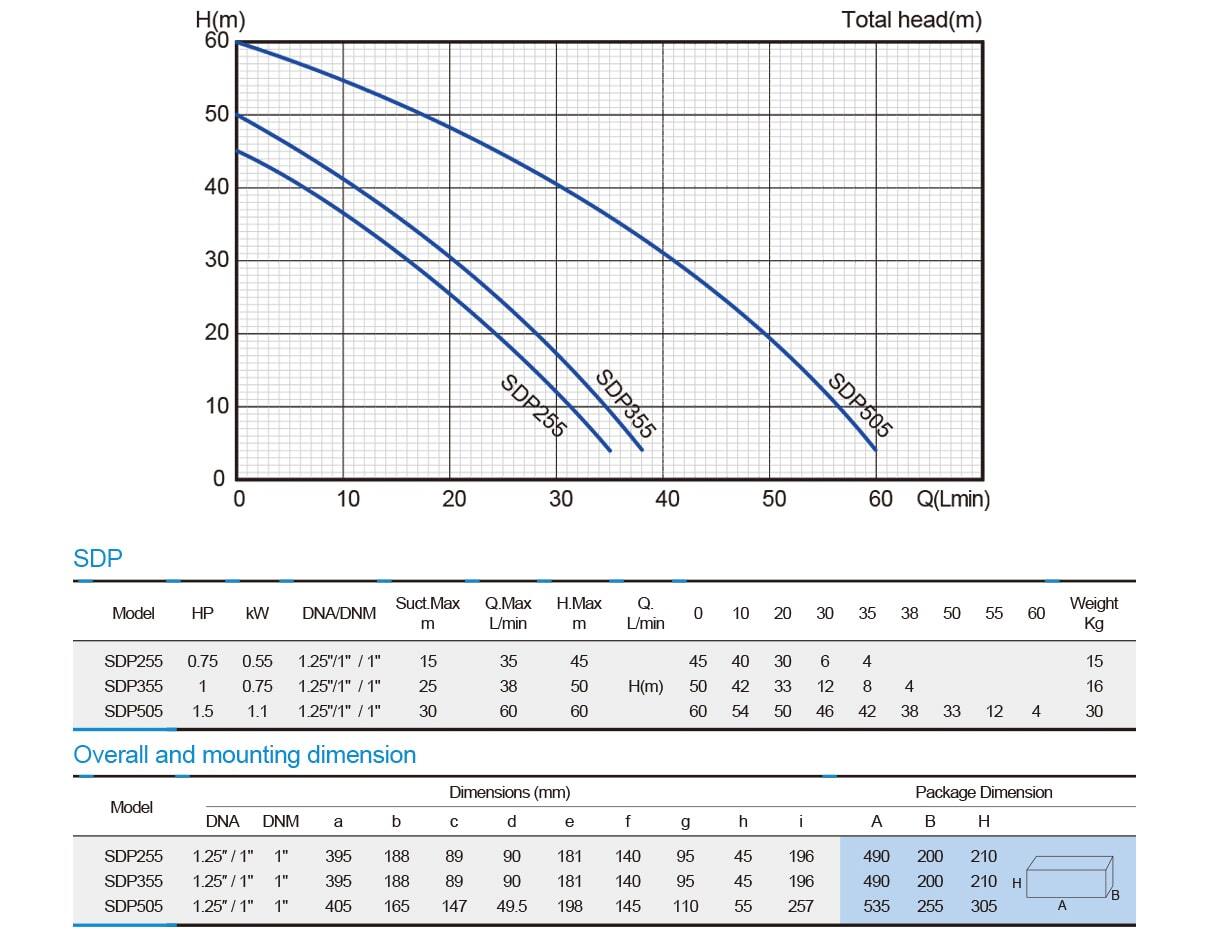

Performance Curve & Technical Data
