Stainless Steel Centrifugal Pump - SWBD(L) Series
- SKU:
- SWBD(L) Series
- Weight:
- 0.00 Grams
Description
Series Overview
- Flow Range: 90-250 L/min
- Head Range: 13-38 m
- Power Range: 370-2200 W
Description
The SWBD(L) Series is a versatile and reliable centrifugal pump suitable for both household and commercial use. Designed for clean water applications, it features stainless steel components for superior safety, hygiene, and corrosion resistance. With its robust construction and advanced performance, this pump is an ideal choice for a variety of pressure and irrigation systems.
Features
- All liquid-contacting parts are constructed from stainless steel, providing high corrosion resistance and extended service life.
- Integrated stainless steel welding ensures a reliable and durable structure with stable performance.
Application
- Civil and industrial pressure boosting
- Pressure systems
- Irrigation use
Working Conditions
- Maximum ambient temperature: +40 ℃
- Maximum fluid temperature: +80 ℃
- Maximum pressure: 10 bar

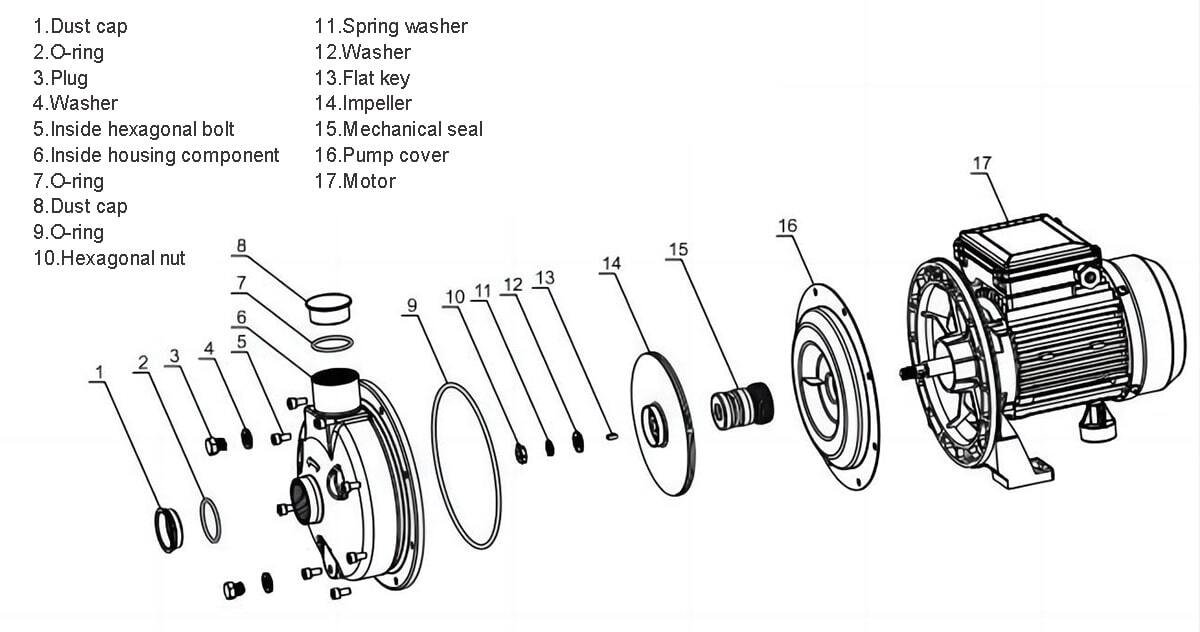

Construction Materials
- Pump body: Stainless steel
- Motor housing: Aluminum
- Motor: Closed, externally ventilated
- Impeller: Stainless steel
- Insulation: B/F
- Duty: Continuous rated
- Mechanical seal: Steatite ceramic/metalized carbon

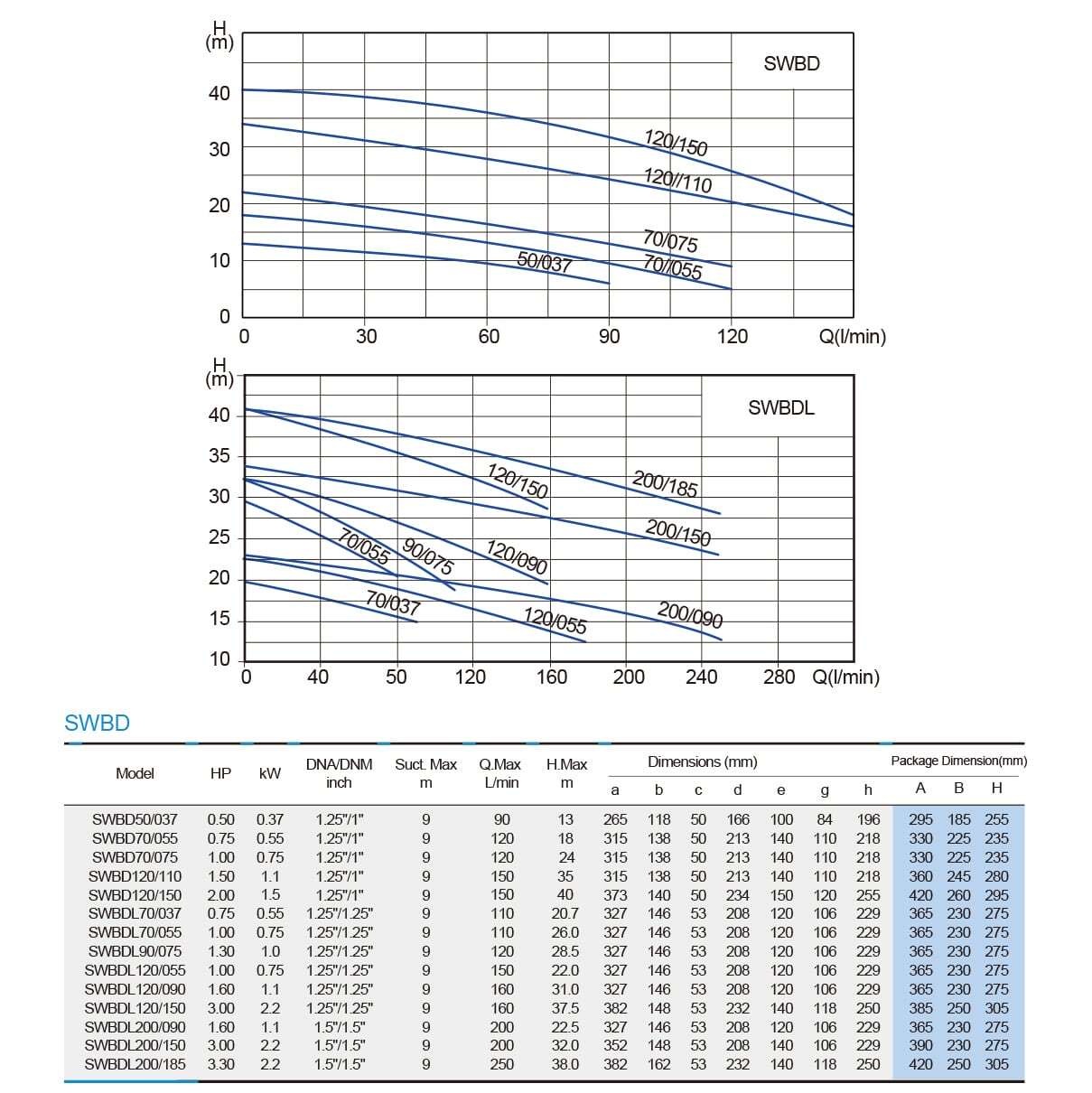

Performance Curve & Technical Data
Additional Information
Flow range: |
90-250 L/min |
Head range: |
13-38 m |
Power range: |
370-2200 W |
Material: |
Stainless steel (pump body and impeller) |
Temperature: |
Ambient max +40 ℃, fluid max +80 ℃ |
Pressure: |
Up to 10 bar |
Applications: |
Pressure boosting, irrigation, clean water systems |
