Two Stage Centrifugal Pump - SCM2 Series

Description

The SCM2 series water pump utilizes a back-to-back impeller design. This effective method counteracts the axial thrust generated during the operation of a centrifugal pump, eliminating the need for a separate balancing device. The pump is suitable for commercial and agricultural applications and is designed for use in clean water environments.

Features

• Back-to-back impeller design effectively balances axial thrust
• Economical, reliable, and safe

Applications

• Gardening
• Agricultural irrigation
• Domestic water tank architecture

Working Conditions

• Maximum ambient temperature: +40°C
• Maximum fluid temperature: 80°C
• Maximum pressure: 10 bar

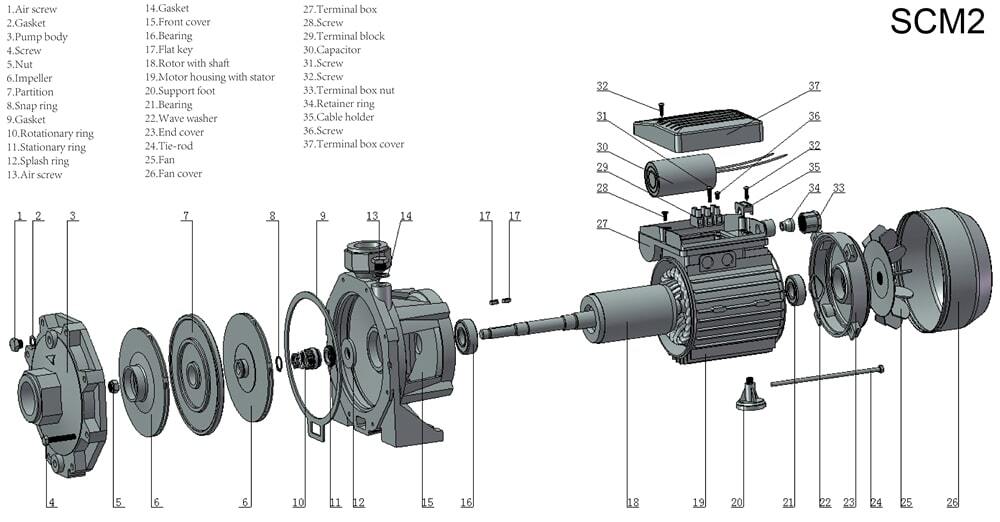

Construction Materials

• Pump body: Cast iron
• Motor housing: Aluminum
• Motor: Closed, externally ventilated
• Impeller: Brass
• Insulation: B/F
• Duty: Continuous rated
• Mechanical seal: Steatite ceramic/metalized carbon

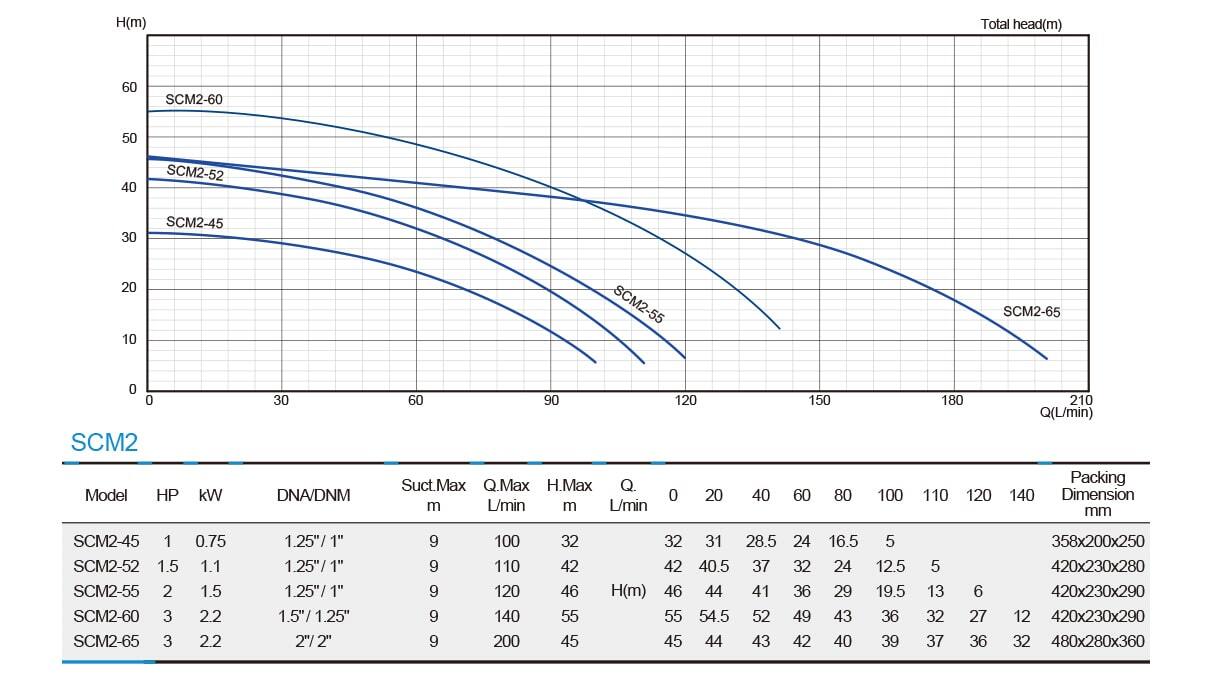

Performance Curve & Technical Data
